Control Techniques Unidrive HS30 User Manual

Unidrive M300/HS30 Quick Start Guide 17
Issue Number: 7

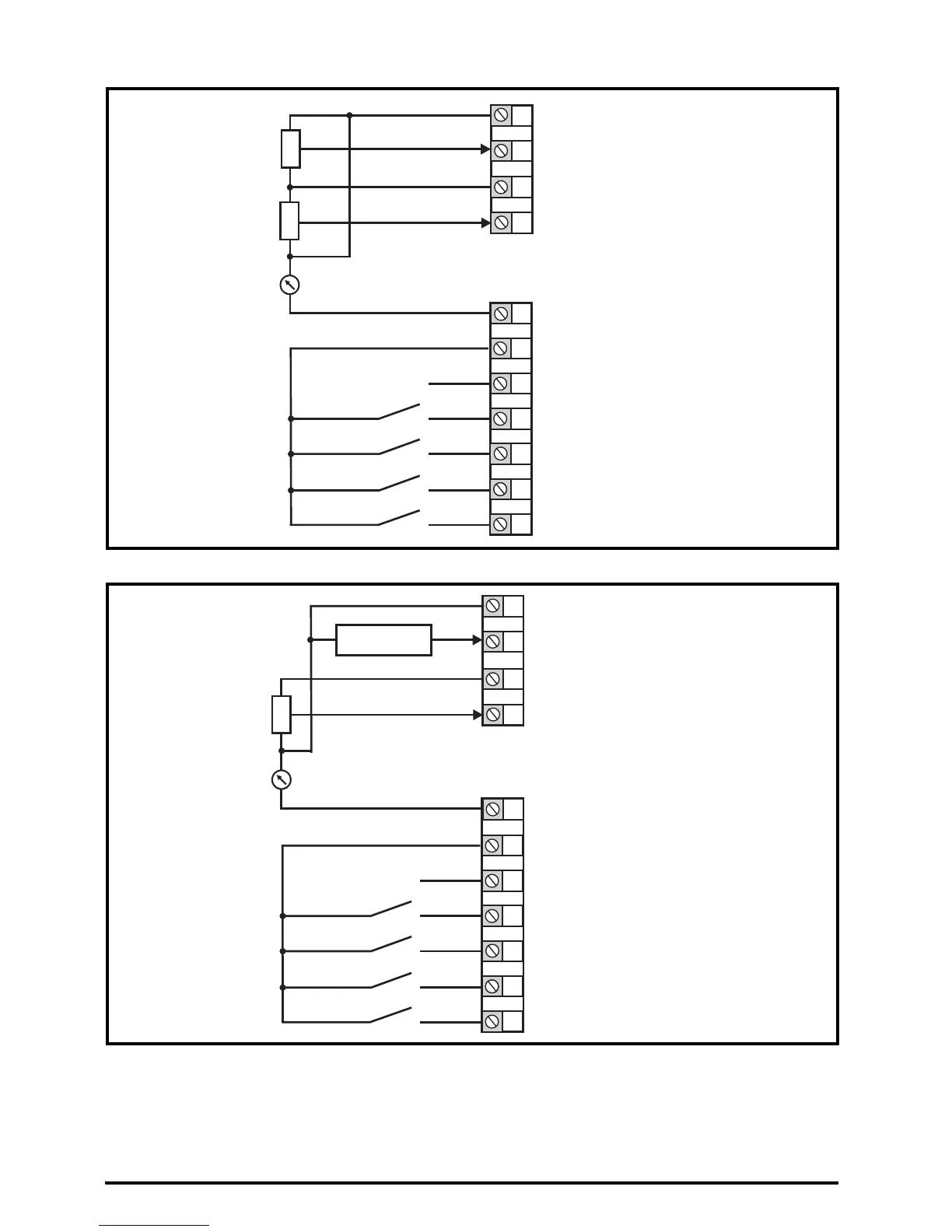

Figure 4-1 Pr 05 = AV
Figure 4-2 Pr 05 = AI
1
2
4
0V
Voltage speed reference
input (AI 1)
Voltage speed
reference input (AI 2)
5
7
Analog output 1
(motor frequency)
+ 10 V output
9
10
11
Digital output
(zero frequency)
Unassigned
12
13
14
Run reverse
Run forward
Analog input 1/
input 2 select
+ 24 V output
10k
10k
1
2
4
0V
Current speed reference
input (AI 1)
Voltage speed
reference input (AI 2)
5
7
Analog output 1
(motor frequency)
+ 10 V output
9
10
11
Digital output
(zero frequency)
Unassigned
12
13
14
Run reverse
Run forward
Analog input 1/
input 2 select
+ 24 V output
10k
Current speed
reference input
