Unidrive M300/HS30 Quick Start Guide 41
Issue Number: 7

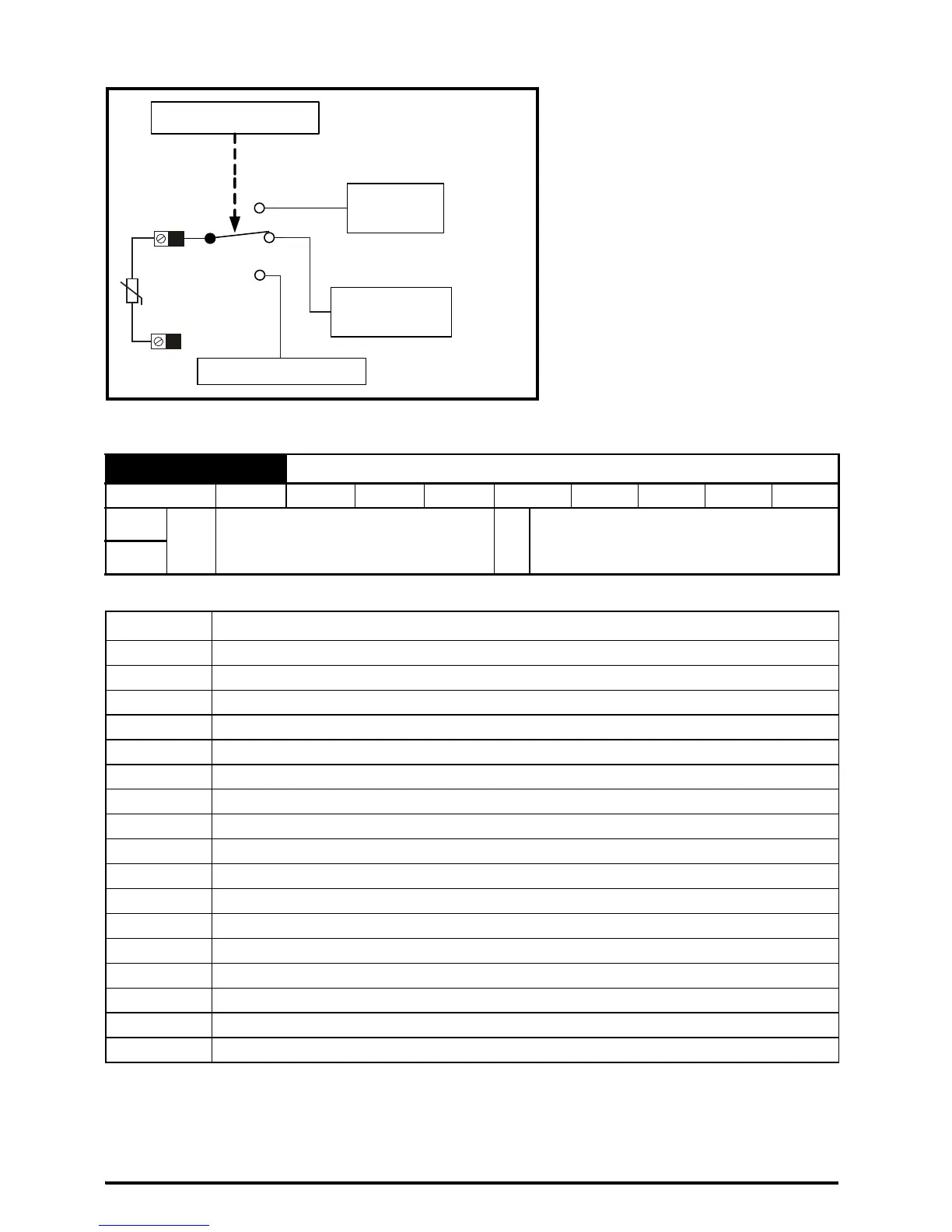

Figure 6-1 Thermistor input
Defines the behaviour of digital output 1 (terminal 10).
35 Digital Output 1 Control
RW Num US
OL
Ú
0-21
Ö
0
RFC-A
Value Description
0 User defined by Digital IO1 Source/Destination A
1 Drive running signal
2 Frequency arrived signal
3 Frequency level detection signal
4 Frequency level detection signal
5 Overload detection signal
6 Power off state
7 External fault stop
8 Frequency upper limit
9 Frequency lower limit
10 Drive running at zero frequency
14 Drive ready
15 Drive OK
18 Brake release
19 Torque limiting (Valid while the torque is limited by torque limiting value 1/2)
20 Forward or reverse
21 Motor 1 or 2
1, 2 or 3
0
Pr 34
DI/O 05 Select
Digital input5
14
1
Digital Input 5
0V
Thermistor
Input
Frequency Input
4
Thermistor input
