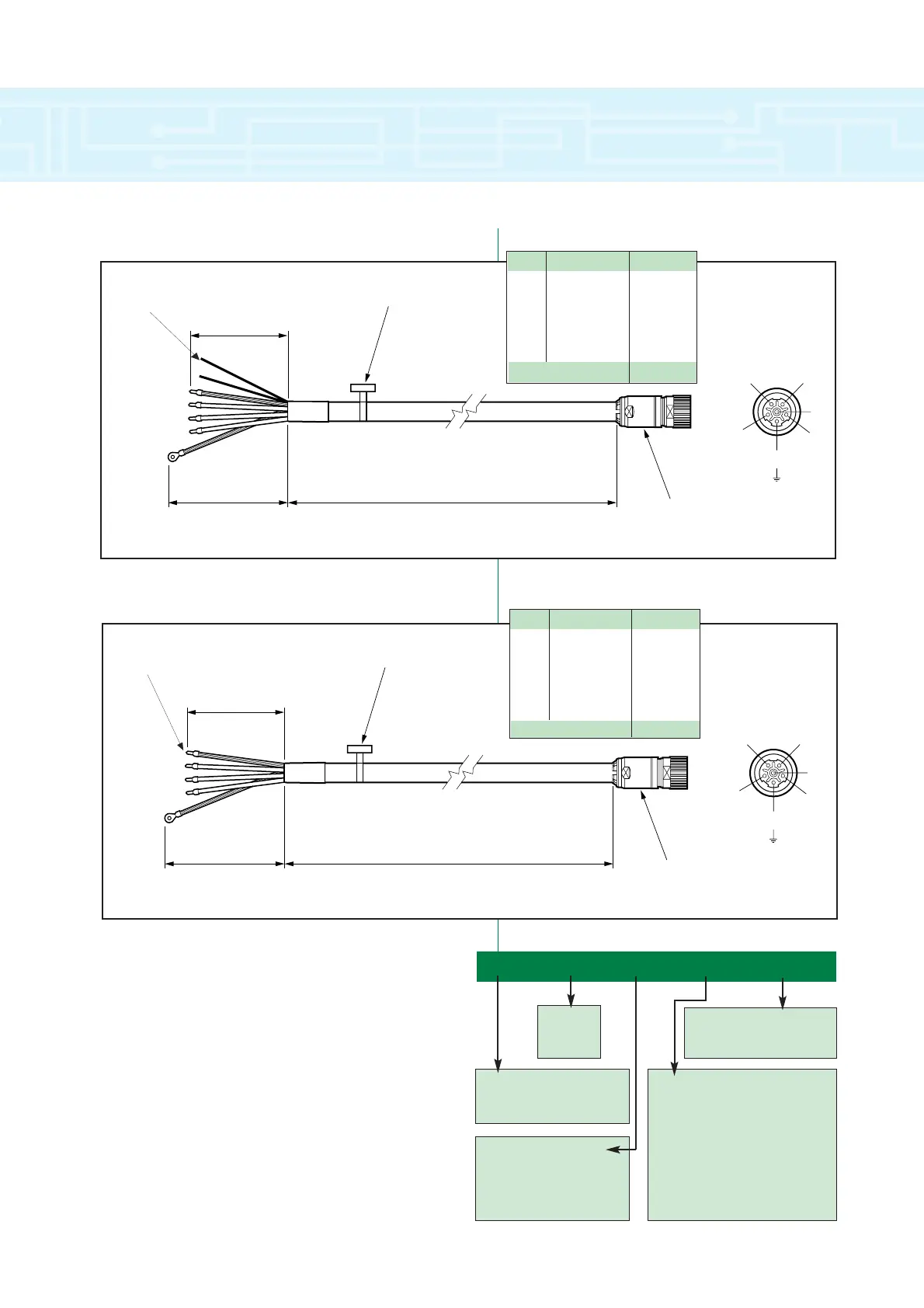

Outline Drawing - Power Cable With Brake
1
2
(3)
4
5
6
Connector
Face
Connector
Assembly
Cable length: min.= 3.0 metres / max.= 100 metres
Tolerance: -0.0 / +50mm
130.0 ±10
115.0 ±10
Drive End
Termination
Identity Label
Earth
Power U
Power V
Power W
Screen
1
2
(3)
4
5
6
Connector
Face
Connector
Assembly
Cable length: min.= 3.0 metres / max.= 100 metres
Tolerance: -0.0 / +50mm
130.0 ±10
115.0 ±10
Drive End
Termination
Identity Label
Earth
Power U
Power V
Power W
Screen
Brake
Drive End
Termination
(Motor End)
(Motor End)
Drive End
Termination
Pin Conductor Function
1 ‘1’ Phase U
2 ‘2’ Phase V
3 Y/G Earth
4 ‘3’ Phase W
5- -
6- -
CONNECTOR BODY Screen
Pin Conductor Function
1 ‘1’ Phase U
2 ‘2’ Phase V
3 Y/G Earth
4 ‘3’ Phase W
5 ‘5’ Brake
6 ‘6’ Brake
CONNECTOR BODY Screen
Power Cable Connections - with Brake
Power Cable Connections - without Brake
PB B B B 095
Cable Type:
PS - Power (Standard)
PB - Power (With brake)
Conductor Size:
A - 4x 2.5mm2 conductor
(75A - 190A)
B - 4x 4.0mm2 conductor
(190B - 190D)
Insulator:
B - PUR
Cable Length (metres):
Min - 003 (3 metres)
Max - 100 (100 metres)
Connector Types:
A - Ferrule ends at Drive, Inter-
connectron at Motor (not 190)
B - Ferrule ends at Drive,
unfinished cut end at Motor
C - Ferrule ends at Drive and
Motor for hybrid or terminal box
X - Cable only
Ordering Information - Power Cables
