DISPLAY CONFIGURATION
GRAPHICAL DISPLAY
The CX Series uses a 3.2” diagonally measured, OLED (Organic Light Emitting Diode) display with a
resolution of 256x64 pixels. The OLED technology provides a vibrant display that is highly readable in
direct sunlight while also offering a wide temperature range of -40C to +80C for both operating and
storage.
DISPLAY LAYOUT

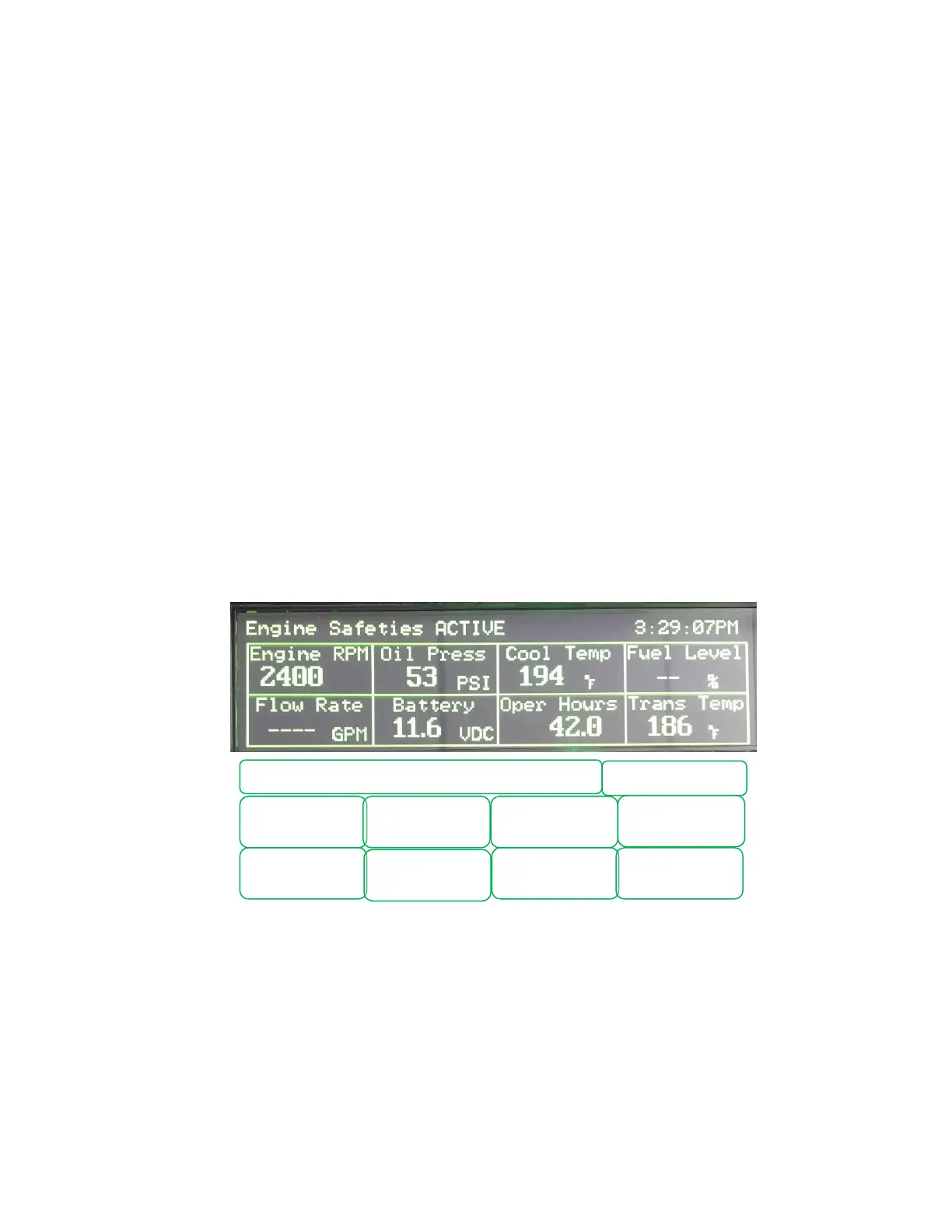

The display is defined into 10 sections per page, with a total of three pages. Sections 1 through 8 are
defined as the rectangles that contain various engine and system parameters. They are numbered
from the upper left as Area 1, with Area 2 directly below and continuing as shown below. Area 9 is the
Status annunciation and Area 10 is the Clock. Pages are defined as A, B and C.
You can cycle through the three pages, you simply press the up or down arrow key. The display will
always power up into the A page. With three available pages, you can display up to 24 parameters on
each unit.
To Next Page
