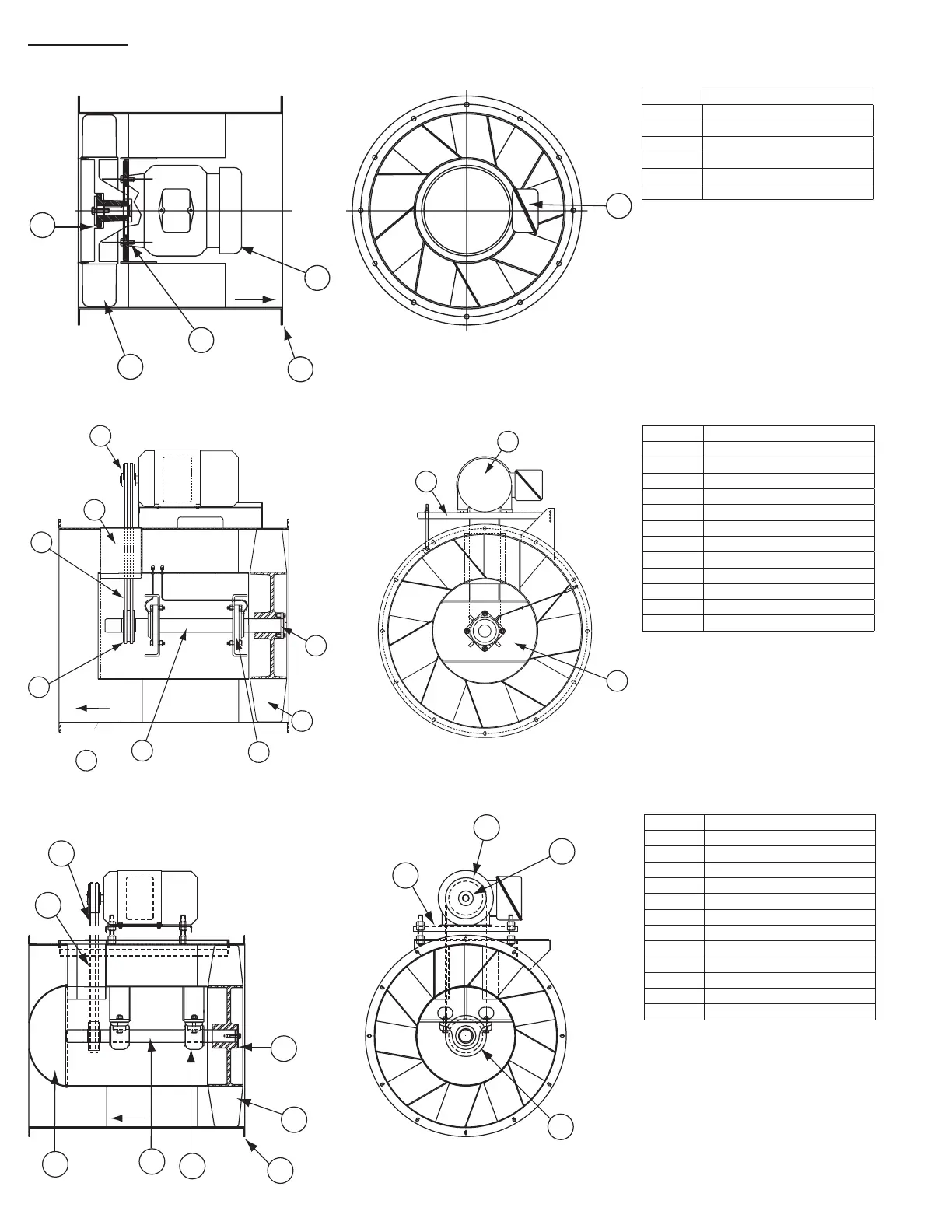

COOK VA - Parts List

8VA/AVA/AF IO&M B51146-004
Parts List
VAD
6
5
4
3
2
1
Airflow
Part No. Description
1 Drum Weldment
2 Propeller Fixed Pitch
3 Propeller Bushing
4 Motor
5 Wiring Box
6 Motor Mounting Bolts
VAB
1
2
3
4
5
10
6
12
7
9
8
11
8
Airflow
Part No. Description
1 Drum Weldment
2 Shaft
3 Bearing (2)
4 Propeller
5 Propeller Bushing
6 Belt Tunnel
7 Motor Plate
8 Inner Drum Nose
9 Motor
10 Drive Sheave
11 Driven Sheave
12 Belt
VAHB
10
9
8
7
6
5
4
3
12
1
2
11
Airflow
Part No. Description
1 Drum Weldment
2 Shaft
3 Bearing (2)
4 Propeller
5 Propeller Bushing
6 Belt Tunnel
7 Motor Plate
8 Inner Drum Nose
9 Motor
10 Drive Sheave
11 Driven Sheave
12 Belt
