COOK VA - Page 9

9VA/AVA/AF IO&M B51146-004

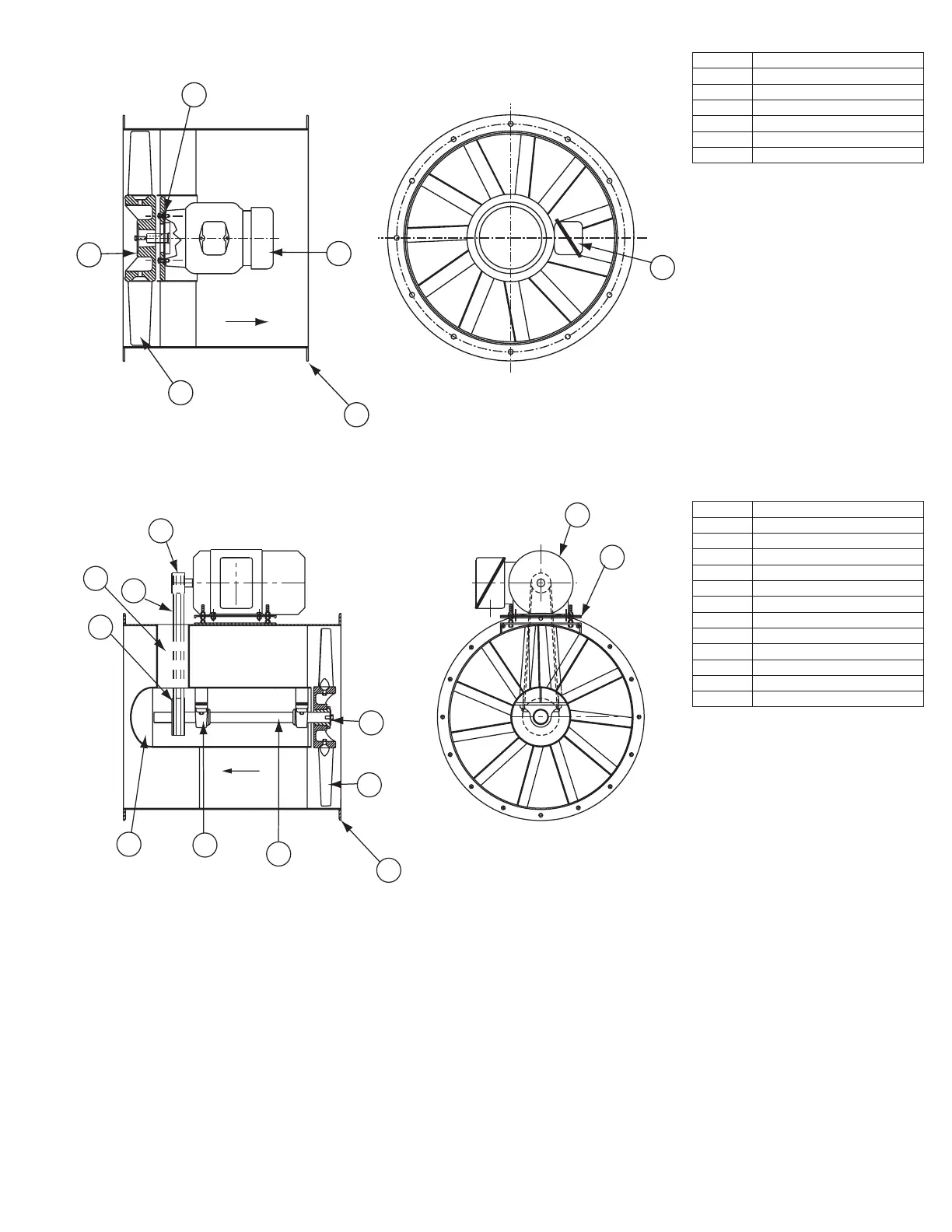

AVAD
1
2
6
4
3
5
Airflow
Part No. Description
1 Drum Weldment
2 Propeller
3 Propeller Bushing
4 Motor
5 Wiring Box
6 Motor Mounting Bolts
AVAB
Airflow
2
1
3
4
5
6
7
8
9
10
11
12
Part No. Description
1 Drum Weldment
2 Shaft
3 Bearing
4 Propeller
5 Propeller Bushing
6 Motor Plate
7 Inner Drum Nose
8 Motor
9 Drive Sheave
10 Driven Sheave
11 Belt
12 Belt Tunnel (2)
