COOK VA - Page 10

10VA/AVA/AF IO&M B51146-004

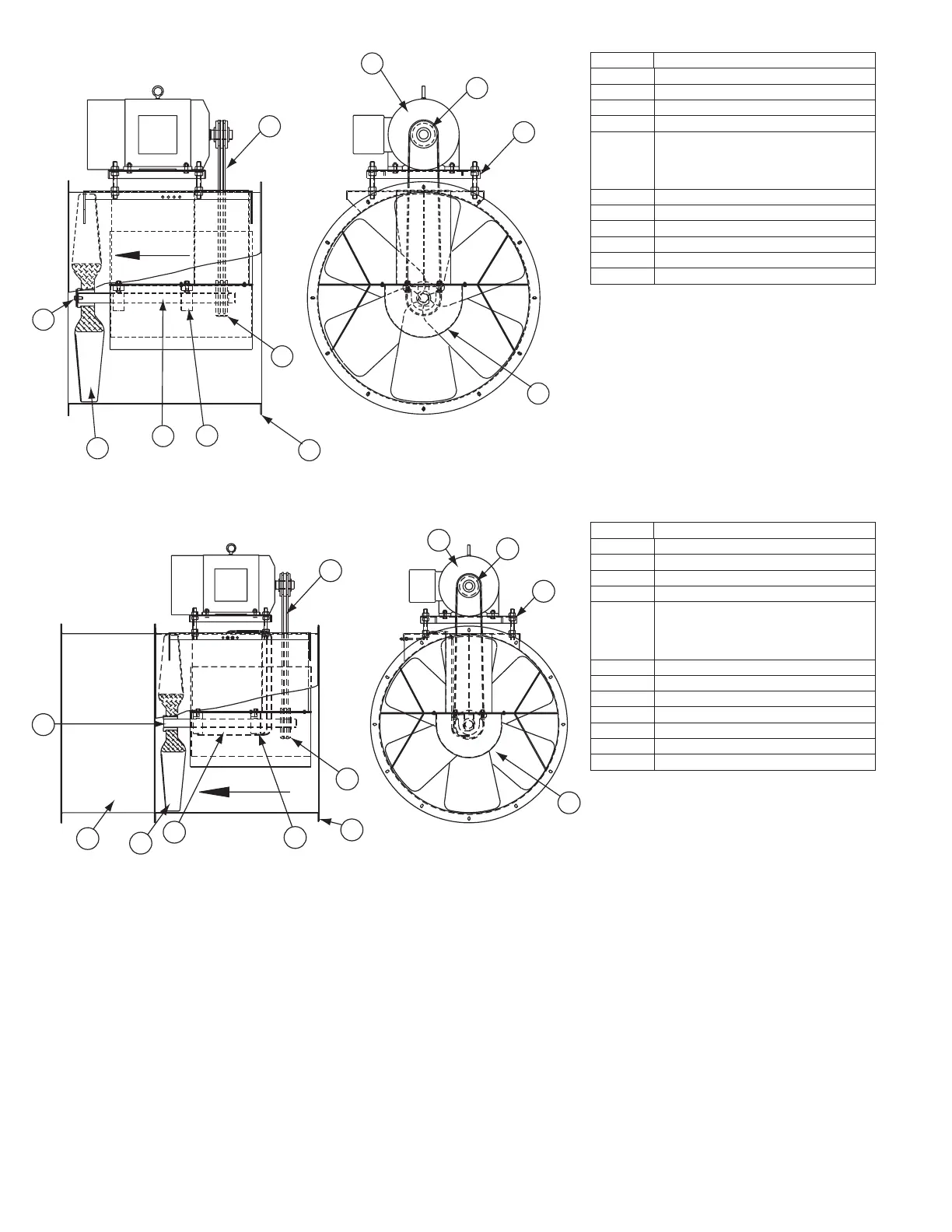

AFB
Airflow
1
4
2
8
7
9
3
6
5
10
11
Part No. Description
1 Drum Weldment
2 Shaft
3 Bearing
4 Motor Plate
5
Propeller
C-Cast Bushing
H-High Temperature Construction
S-Stainless Steel Construction
6 Propeller Bushing
7 Bearing Cover
8 Motor
9 Drive Sheave
10 Driven Sheave
11 Belt
AFBV
Airflow
1
4
2
8
7
9
3
6
5
10
11
12
Part No. Description
1 Drum Weldment
2 Shaft
3 Bearing
4 Motor Plate
5
Propeller
C-Cast Bushing
H-High Temperature Construction
S-Stainless Steel Construction
6 Propeller Bushing
7 Bearing Cover
8 Motor
9 Drive Sheave
10 Driven Sheave
11 Belt
12 Vane Section
