Coopra Advanced Heating Technologies Installation manual E40C
17

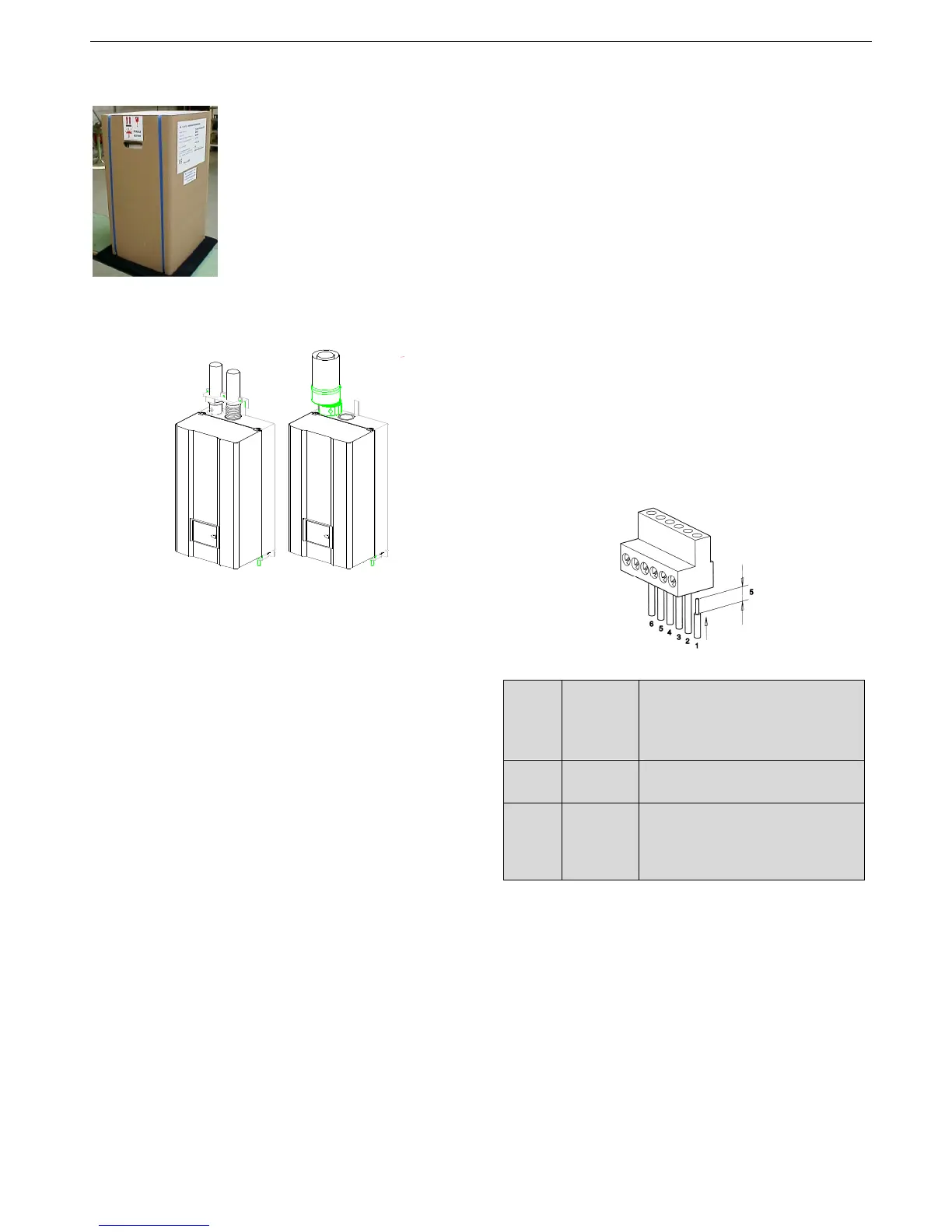

2.7. Unpacking the boiler
Before unpacking the boiler, check
whether the type of gas to be used
corresponds with the specification
on the packing. If you have any
questions, contact your supplier.
To prevent back injury, take
account of the fact that the weight
of the boiler is roughly 35 kg.
2.8. Fitting the flue tube and air supply
2.8.1. Connecting flue and air
2-pipe system
When the flue tube and air supply are connected
eccentrically, proceed as follows:
Fit the flue adapter in the boiler flue gas pipe and check
weather the flue adapter seals in the sealing ring of the
boiler flue gas outlet.
Connect the flue channel to the flue adapter.
Fit the air supply pipe in the rubber bellows and seal with
the hose clip.
2.8.2. Connecting flue and air
Concentric adapter 80/125 mm
When the flue tube and air supply are connected
concentrically, proceed as follows:
Fit the 80/125 mm adapter onto the boiler before you
place the boiler.
After you have placed the boiler, fit the concentric flue/air
pipes onto the 80/125 mm adapter.
2.8.3. Connecting flue and air
Concentric adapter (60 / 100 mm)
When the flue tube and air supply are connected
concentrically, proceed as follows:
Fit the 60/100 mm adapter onto the boiler before you
place the boiler.
After you have placed the boiler, fit the concentric pipes
onto the 60/100 mm adapter.
2.9. Suspension
Place an O-ring in the middle of each of the connections
present.
Remove the sealing caps from the pipes of the boiler.
Keep the boiler straight against the wall at about 5 cm
above the site of the mounted assembly bracket or the
assembly cabinet.
Press the boiler into the guide and let it drop carefully, so
that the hook on the suspension bracket falls into the
opening at the rear of the boiler and the pins at the
bottom of the boiler fall in the corresponding openings in
the suspension bracket. Here, the connection pipes of
the boiler fall over the connection points of the
suspension bracket.
Firmly tighten the union nuts of each of the connections
present with the aid of a spanner SLW 30, starting from
the right hand side.
2.10. Green connector block
The connections of the green connection block (right-
hand side, down under the boiler) are all volt-free
contacts.
Therefore, do not connect voltage onto them !
orange
