INSTALLATION INSTRUCTIONS REMOTE CONDENSERS
UNIT
1/4-20 SCREW
LEG
BRACE
LEG
1. Follow the standard installation instructions supplied with cuber. Do not hook cuber into the power source
until the remote condenser and line set installation is complete.

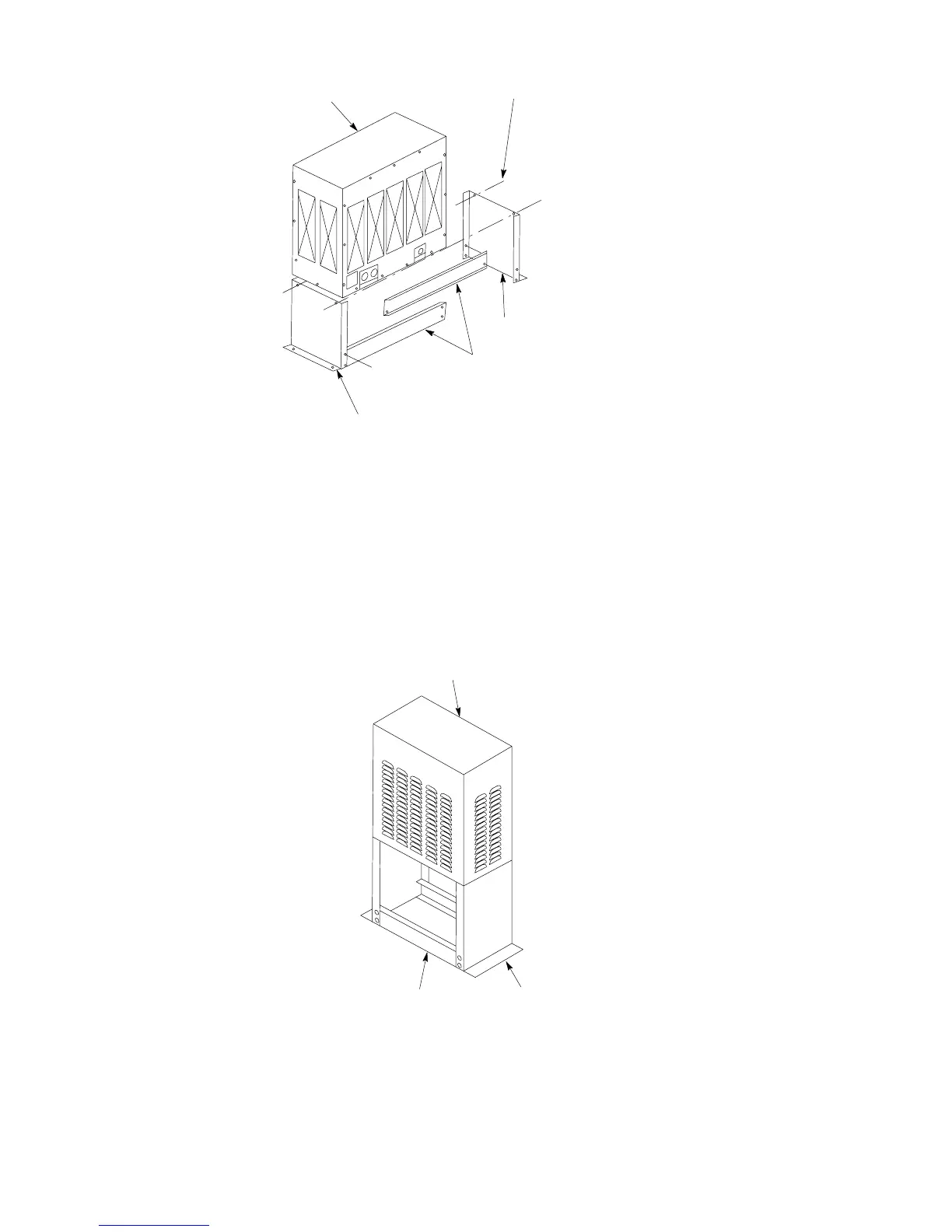

2. Assembly of remote condenser (see drawing):
A. Assemble legs to base panel. Install leg supports on legs.
B. Locate the remote condenser in a well ventilated area on the roof away from other refrigeration equip-
ment’s condenser discharge air flow.
C. Use the mounting holes provided to secure the remote condenser to the roof. Seal over heads of bolts
or fasteners with tar or pitch to prevent entrance of moisture.
REMOTE CONDENSER
LEG
LEG SUPPORT
3. Remote condenser electrical hook-up:
A. Connect remote condenser to a power source (208/230VAC, 60 HZ) separate from the cuber. An ex-
ternal disconnect switch must be used.
B. Make sure the electrical connections follow all local and national codes.
C. DO NOT turn condenser on until cuber install and refrigerant line connections are complete!
