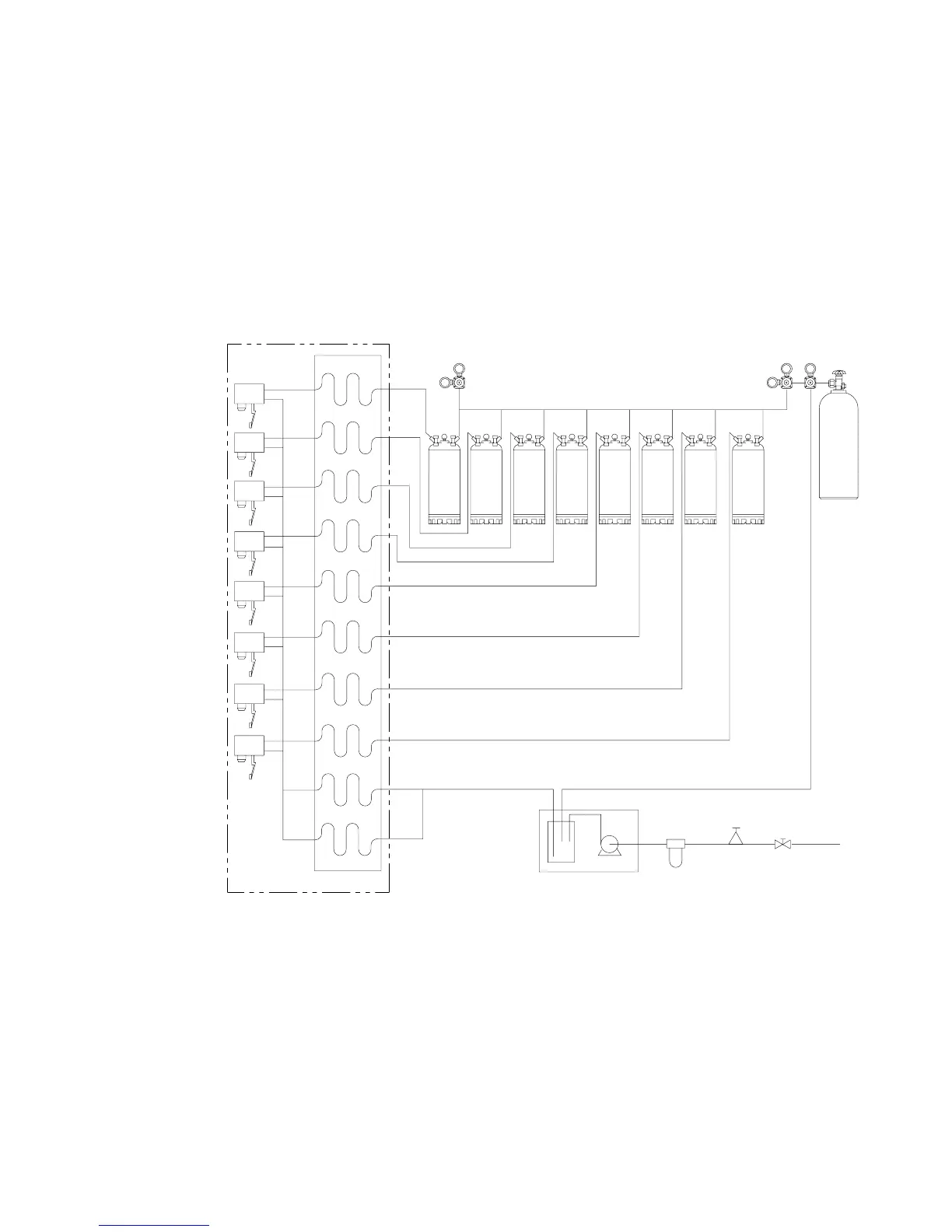

Cornelius TJ200 - Figure 8. Beverage System Schematic -Bc Models

17
91678
OPTIONAL-FOR DIET
OR ROOT BEER
5-15 PSIG
15-50 PSIG
S1 S2 S3 S4 S5 S6 S7 S8
SYRUP
TANKS
CO
2
TANK
FAUCETS
1
2
3
4
5
6
7
8
CW
CW
60-100 PSIG
NOTE: REFERENCE ONLY
NOT FOR CONSTRUCTION
REGULATORS
WATER
SUPPLY
FILTER
OPTIONAL: PRESSURE
REGULATOR
CARBONATOR
COLD PLATE
REMCOR ”BC” ICE/BEVERAGE
DISPENSER ITEMS OUTSIDE
OF BROKEN LINES NOT
INCLUDED WITH UNIT.
FAUCETS 5 THRU 8 ARE OPTIONAL.
FIGURE 8. BEVERAGE SYSTEM SCHEMATIC “-BC” MODELS
