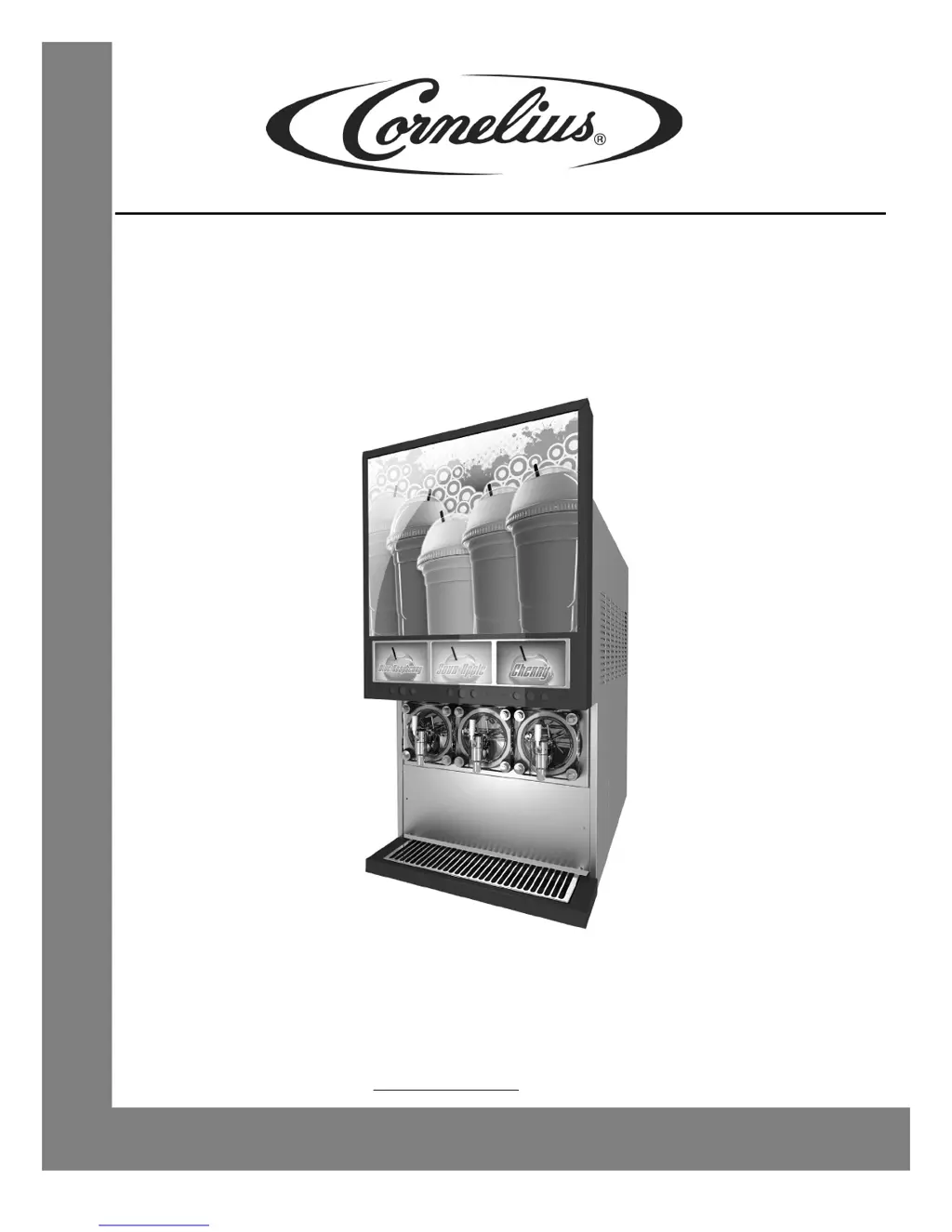

VIPER 2 FLAVOR, VIPER 3 FLAVOR &

VIPER 4 FLAVOR

Service Manual

Release Date: October 28, 2008

Publication Number: 621260373SER

Revision Date: May 14, 2012

Revision: H

Visit the IMI Cornelius web site at www.cornelius.com

for all your Literature needs.

Table of Contents

Other manuals for Cornelius VIPER 4 FLAVOR

Installation Instructions4 pages

Questions and Answers:

B
Benjamin DavisAug 18, 2025
What to do if the barrel status is off on a Cornelius Beverage Dispenser?
- K
  Kara HannaAug 18, 2025
  If the barrel status is OFF on your Cornelius Beverage Dispenser, it may be because it is not activated. Turn it to ON, DFRST, or SPIN. An error might have shut off the motors, so correct the error and then turn it to ON, DFRST, or SPIN. The unit could be in diagnostics, so exit diagnostics and turn it to ON, DFRST, or SPIN. A defective touch switch could also be the problem, in which case you should replace it.
G
Gloria WolfAug 21, 2025
What does low/high voltage error mean on Cornelius Beverage Dispenser?
- M
  Margaret TorresAug 21, 2025
  A low or high voltage error on your Cornelius Beverage Dispenser indicates that the line voltage is out of specification (205-255 VAC for 60 Hz and 196-265 VAC for 50 Hz). Check the line voltage and check T1/T2 with the compressor running. If the error range is 180/260, correct the line voltage.
G
Gregory LevineAug 23, 2025
Why is the barrel frozen in my Cornelius Beverage Dispenser?
- S
  Sydney AndersonAug 23, 2025
  If you have a frozen barrel in your Cornelius Beverage Dispenser, it may be due to low Brix. Correct the cause and reset the Brix. A broken beater bar or a broken drive coupler could also be the issue; replace these parts if broken. If there is no defrost, program defrosts in the unit, ensuring defrosts are programmed for all days by reprogramming if necessary.
F
fergusonkatieAug 26, 2025
What causes problems with the hot gas valve in a Cornelius Beverage Dispenser?
- R
  Rachel HartAug 27, 2025
  If the hot gas valve in your Cornelius Beverage Dispenser is malfunctioning, it could be miswired, so correct the wiring. The coil might be defective, requiring replacement. A defective product delivery board could also be the cause, so replace it.
V
Victoria JimenezAug 28, 2025
How to fix a Cornelius Beverage Dispenser that will not run?
- H
  hooverlindaAug 28, 2025
  If your Cornelius Beverage Dispenser unit will not run, there are several potential causes: * It might not be plugged in, so ensure it is properly connected to a power outlet. * The circuit breaker may have tripped; try resetting or replacing it. * There might be no power at L1 or L2 on the contactor. Check the voltage at the outlet and the wiring to the contactor. * Low voltage at T1 or T2 could be the issue, in which case you should replace the contactor.
A
Amber BarryAug 30, 2025
Why is my Cornelius Beverage Dispenser compressor running but not cooling?
- P
  Pamela LeeAug 31, 2025
  If the compressor in your Cornelius Beverage Dispenser is running but not cooling, possible causes include: * Low refrigerant: This requires repairing the leak and adding a new charge. * A restricted condenser or filter: Clean or repair these components. * A defective condenser fan motor or blade: Repair or replace as necessary. * A hot gas valve leaking or open: Replace the valve. * A defective compressor: Repair or replace the compressor.
S
Shannon JohnsonSep 2, 2025
How to turn off sleep mode on Cornelius Beverage Dispenser?
- C
  Christina DoyleSep 2, 2025
  If the barrel status on your Cornelius Beverage Dispenser menu displays “Sleep,” it’s likely due to sleep settings. Check the sleep programming, the clock settings, and ensure a wake time is properly set.
A
Aaron RamirezSep 4, 2025
Why is my Cornelius Beverage Dispenser compressor not running?
- M
  Monica WrightSep 5, 2025
  If the compressor on your Cornelius Beverage Dispenser is not running, it could be due to several reasons: * The barrel might not be in ON mode; turn the barrel to ON. * There may be no voltage to the compressor; check the power at contactor L1, L2 - T1, T2. * Bad start components could be the cause; check these components and their wiring. * The compressor’s thermal overload protector might be open; check the resistance of compressor windings and the incoming line voltage. * There could be open or shorted compressor windings; check the resistance of compressor windings. * A bad control board could also be the problem; troubleshoot and replace if necessary.
S
Shelly MoralesSep 7, 2025
How to improve airflow in a Cornelius Beverage Dispenser?
- B
  Brooke JarvisSep 7, 2025
  If you're experiencing restricted airflow in your Cornelius Beverage Dispenser, it could be due to a dirty filter. Clean the filter. Alternatively, the condenser might be dirty, so clean the condenser. Damaged fins can also restrict airflow; repair or replace them if necessary. Ensure there is enough clearance around the unit for proper ventilation.
A
Amy ParkerSep 10, 2025
What causes a fan motor to fail in a Cornelius Beverage Dispenser?
- Y
  ymarshallSep 10, 2025
  If the fan motor in your Cornelius Beverage Dispenser is not working, it could be due to a bad connection. Check and connect any loose wires. The motor itself might be bad, requiring replacement. A cracked or bent fan blade can also cause issues; replace the fan blade.

Cornelius VIPER 4 FLAVOR Specifications

General

Model	VIPER 4 FLAVOR
Number of Flavors	4
Material	Stainless Steel
Power Supply	115V / 60Hz
Cooling Type	Air Cooled

Summary

Introduction

Manual Overview

Provides an overview of the manual's structure and purpose for users.

Safety Instructions

Safety Alerts and Precautions

Defines alerts, precautions, personnel requirements, and warnings.

Shipping, Storage, and Mounting Safety

Covers safe practices for moving, storing, and installing the unit.

System Overview

Theory of Operation

Explains the basic configuration of the refrigeration system and diagrams.

Control Panel Operations

Control Panel Introduction and Display

Introduces the control system, its display, and buttons.

Menu Navigation and Settings

Guides through menus for setup, clock, events, viscosity, and options.

Maintenance Procedures

Preventative Maintenance Schedule

Outlines regular maintenance tasks for optimal system performance.

Barrel Maintenance and Sanitization

Covers barrel cleaning, purging, and system sanitization procedures.

Component Replacement

Motor, Seal, and Pump Replacement

Guides on replacing motors, seals, pumps and related parts.

Solenoid, Regulator, and Switch Replacement

Details replacing solenoids, regulators, and pressure switches.

Board and Fan Replacement

Covers replacing display, control, motor boards, and fan motors.

Troubleshooting

System Troubleshooting Guide

Provides solutions for common unit problems and cooling issues.
