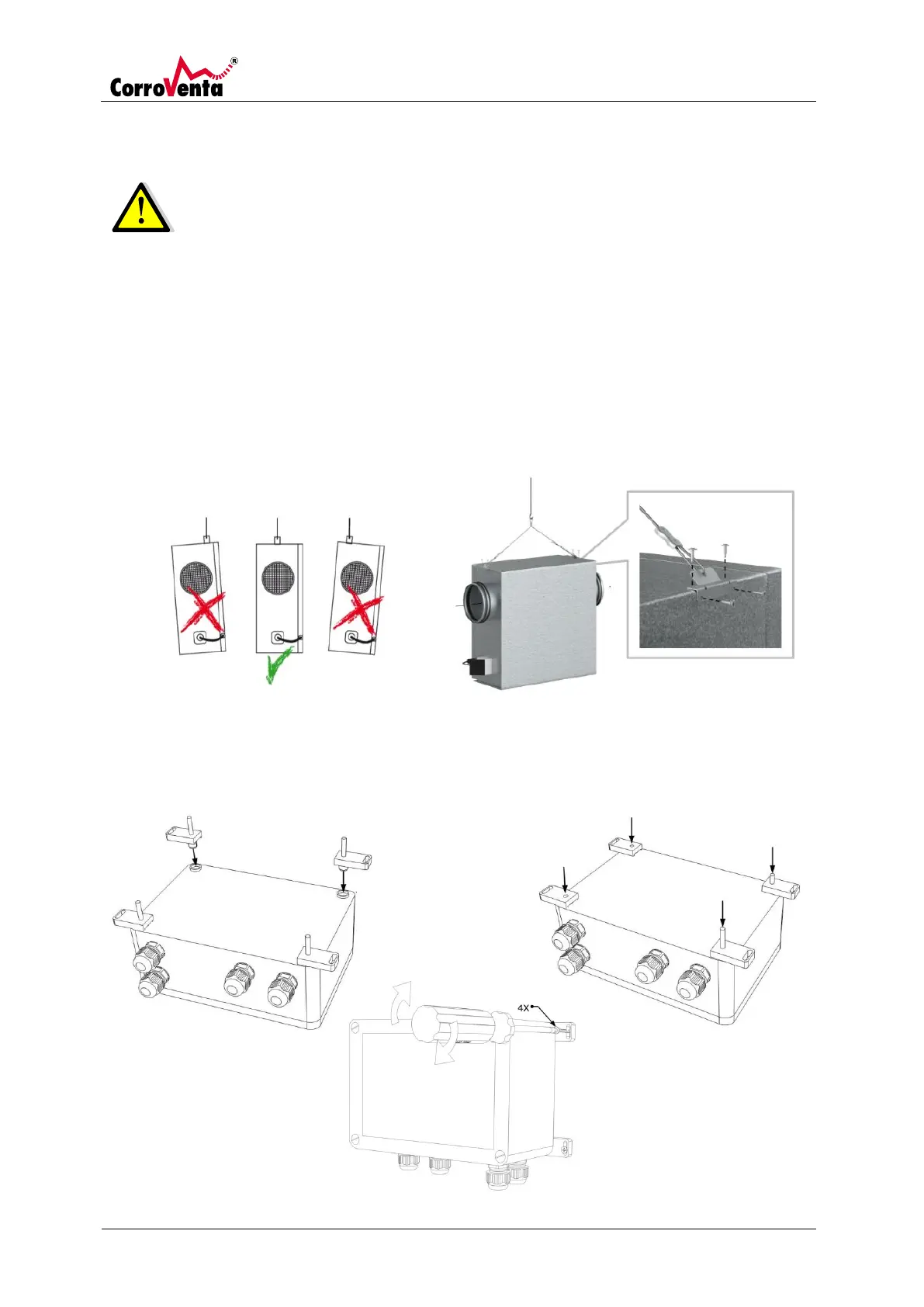

Fan installation
For fans weighing more than 25 kg, a two-man lift according to AFS2012:02 is
recommended. If the fan is installed in a public area lock the guard on the fan's
exhaust using a screw or pop rivet.
The fan can be installed suspended from the first truss a max. 1.3 m from the outer wall. Use the
suspension equipment supplied. Ensure that the suspension point can withstand the weight of the
fan. The fan must be freely suspended from the roof structure to avoid any structure-borne sound.
Connect the fan's inlet to the wall plate via the supplied hose and hose clamps. Install the guard on
the fan's outlet.
1. Weighing the fan for optimal balance.
2. Install the bracket on the edge. Screw into place.
3. Install the guard on the fan's outlet connection.
Installing the Control unit
Install the supplied brackets on the control unit. Tap in the pins to secure the mountings to the
control box. Then mount the control unit on a flat surface centrally and make sure it is easy to access.
