User manual VentoVind™ PRO
© Corroventa Avfuktning AB
2021.05
8 (18)
Delivery check
VentoVind™ PRO Villa has a 160mm connection. VentoVind™ PRO Villa Large has a 200mm
connection and is supplied with the following parts in the package:
Control unit VentoVind™
1 x
Outdoor sensor with 15m cable
1 x
Indoor sensor with 15m cable
1 x
Fan unit with 15m cable
1 x
Back draft damper 160
1 x
Hose SC 1.3m
1 x
Wall plate (internal)
2 x
Protective cover
2 x
Hose clamps
2 x
Nipple
1 x
User instructions
1 x
Brackets for Control unit
4 x
Mounting screws
8 x
Plastic pouch + operation & maintenance instructions
1 x
Bracket for Fan
1 x
HomeVision PRO Control panel
1 x
AC adapter
1 x
Control unit VentoVind™

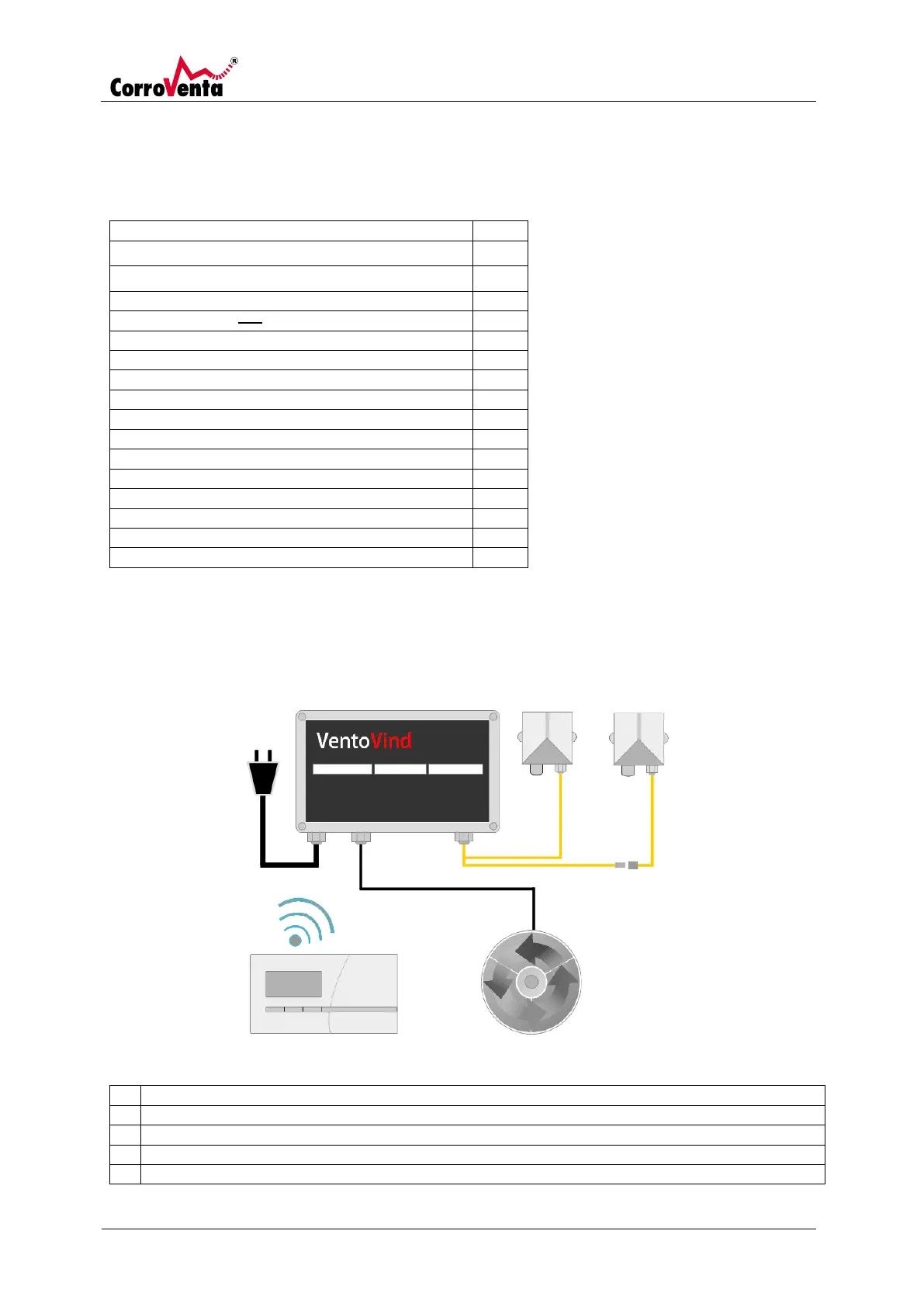

Overview, controls and connections. The following images show the VentoVind™ control unit with
external components.
1.
Control unit. Voltage 230 VAC 50Hz 5W (plug)
2.
Control panel. Voltage +5 VDC 800mA (Only use the AC adapter supplied)
3.
Indoor sensor. Voltage +24 VDC via ModBus
4.
Outdoor sensor. Voltage +24 VDC via ModBus
5.
Fan. Voltage 230 VAC 50Hz Max output 315W
1
2
3
5
4
