42 43

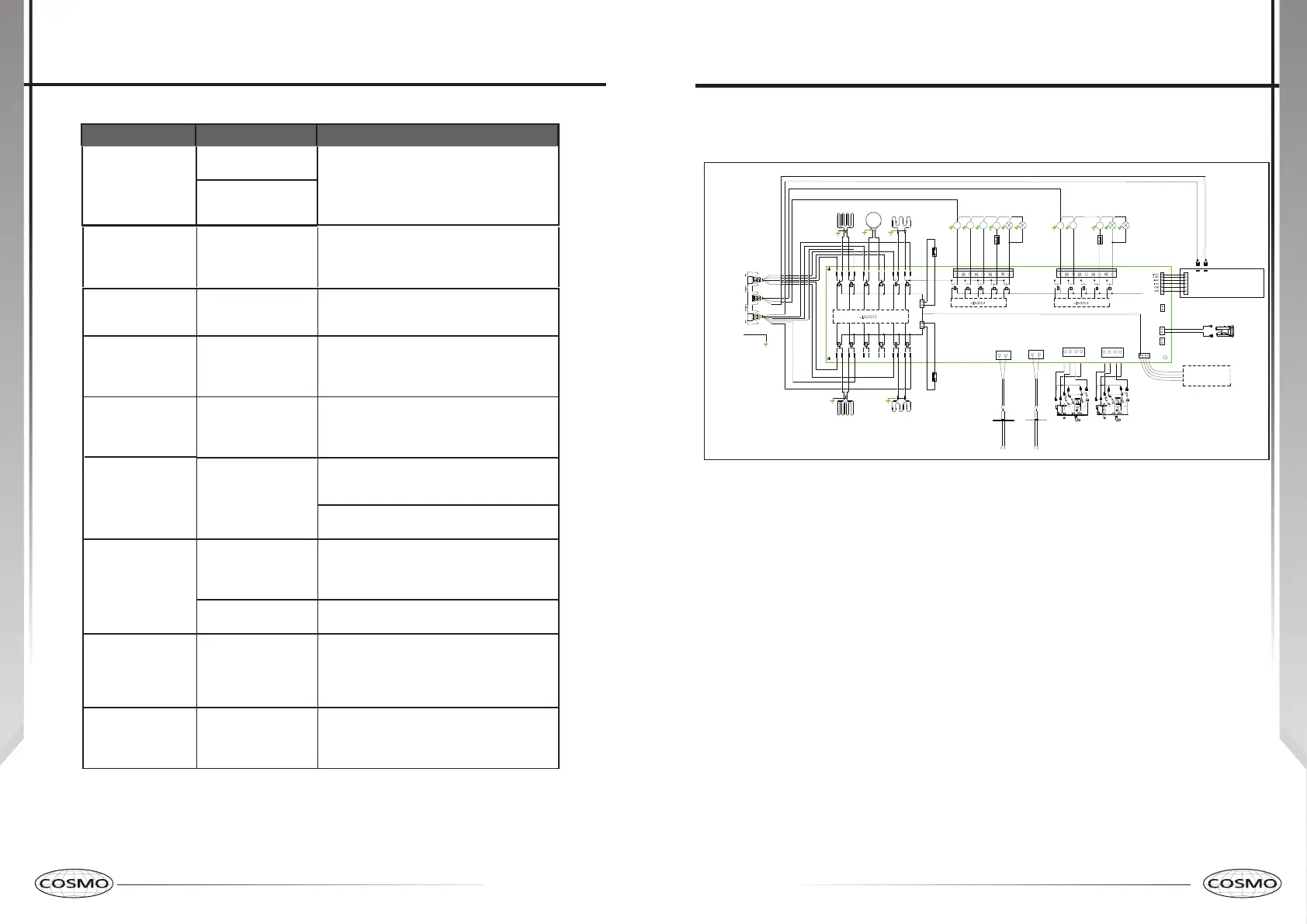

Troubleshooting
PROBLEM
POSSIBLE CAUSE SOLUTION
Oven light is
not working
properly.
Light bulb is
loose or burned
out.
Replace or reinsert the light bulb if
loose or defective. Touching the bulb
with fingers may cause the bulb to
burn out.
Oven light
stays on.
Oven door
does not close
completely.
Check for obstruction in oven
door. Check to see if hinge is
bent or door switch is broken.
Cannot
remove lens
cover on light.
Lens cover is dirty. There may be a soil build-up around
the lens cover. Wipe lens cover area
with a clean dry towel prior to
attempting to remove the lens cover.
Oven will not
Self- Clean
properly.
Oven was still
warm when
Cleaning mode
was selected.
Allow the oven to cool before
running Self-Cleaning.
Oven is heavily
soiled.
Always wipe out loose soils or heavy
spillover before running Self-Cleaning.
See Preparing the Oven to Self-Clean.
If oven is badly soiled, set oven
for a 4-hour Self-Cleaning.
Clock and
timer are not
working
properly.
No power going
to the oven.
Turn on power at the main power
supply (fuse or circuit breaker box). If
condition persists, call an authorized
service center.
Clock or Timer
not set correctly.
See the Clock and Timer sections.
Excessive
moisture
Oven was
not properly
preheated.
When using bake mode, preheat
the oven first. Convection Bake and
Convection Roast will eliminate any
moisture in oven (one of the
advantages of convection).
Porcelain chips
Oven racks
removed
and replaced
incorrectly.
When oven racks are removed and
replaced, always tilt racks upward
and do not force them to avoid
chipping the porcelain.
FOR MORE HELP, VISIT ANCONAHOME.COM OR CALL
THE CONSUMER HELP LINE AT 1-800-350-4562.
Oven is not
cooking evenly
Oven rack is not in
correct position.
Refer to cook charts for
recommended rack position.
Convection
Bake Mode
Always reduce recipe temperature by
25°F (15 °C) when baking with
Convention Bake mode.
Circuit Diagram
PCB BOARD
PCB BOARD
DISPLAY
Top Grill
Back Grill
Bottom Grill
Top Grill
Bottom Grill
Low Cyc
High
Cool fan Cool fan fan
Latch
Lamp
Low
High
Cool fan Cool fan
Latch
Lamp
85 T herm alcutoff
120 T herm alcut off
L1(RED)
L2(BLACK)
N(WHITE)
G(GREEN)
probe_down
probe_up
Baffle
TO_SWPOWER
Latch_door2
up sens or
down se nsor
LN
B Plug
UP_HT _CUT
DOOR
Latch
1
Latch2
GND
A Plug
Probe socket
A
68
A67
A65
A6
6
A4
2
A10
A43
A12
A52
A53
A54
A55
85 T herm alcutoff
L1
L2
L2
L1
L2
L
1
120 T herm alcutoff
DOWN_HT_CUT
A64
A63
A
61
A62
A28
A45
A30
A46
A57
A5
6
A59
A58
Latch_door1
DOO
R
Latch1
Latch2
GND
M1
M
2
M
3
M4
M1
M
2
M4
Probe
GND
Baffle
GND
GND
Probe
TO_DISP
L1
L2
L2
L1
L2
L
1
To Next Page
