11

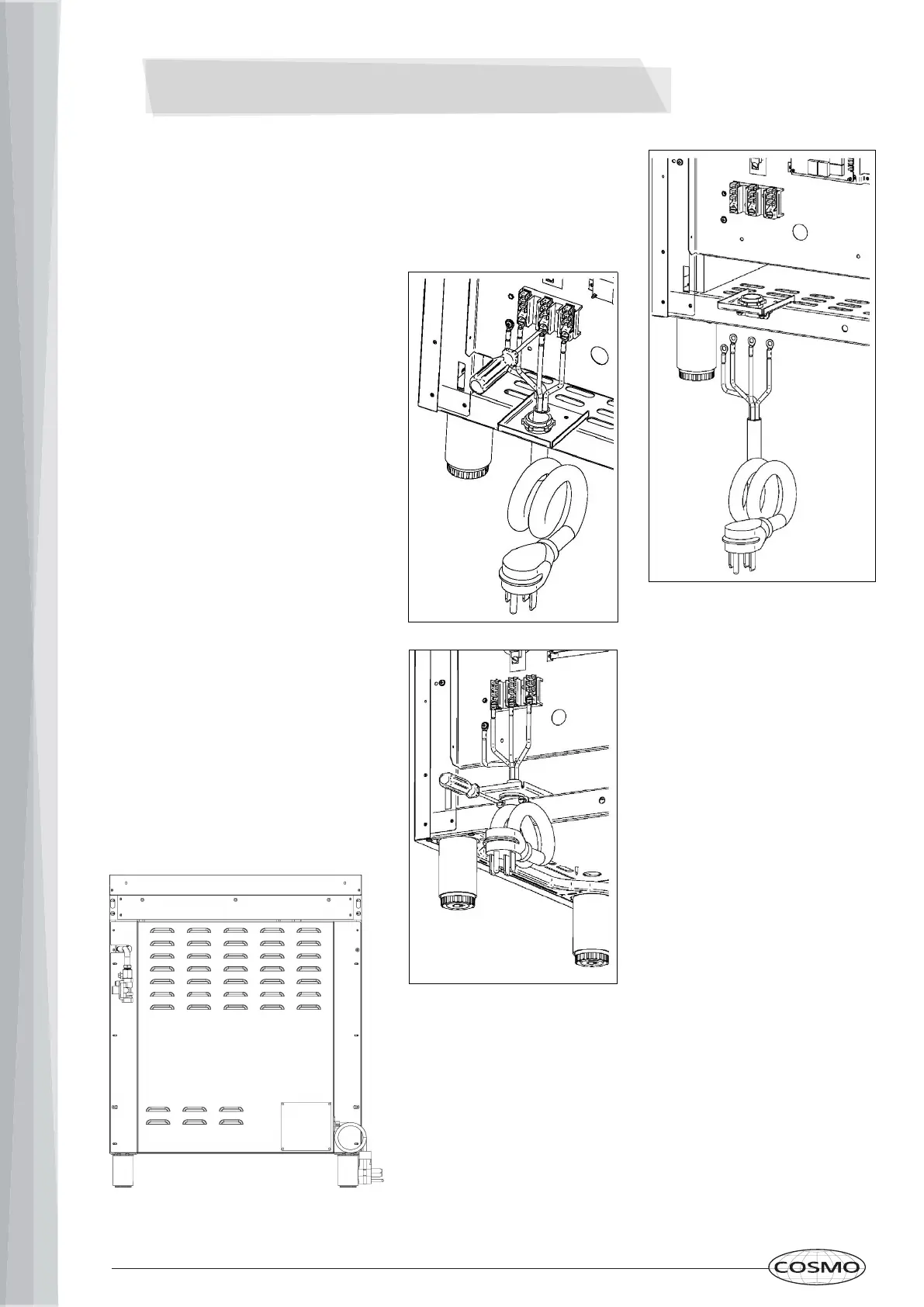

POWER CORD REPLACEMENT
DO NOT USE EXTENSION
CORDS WITH THIS APPLIANCE
AS IT MAY RESULT IN FIRE,
ELECTRIC SHOCK OR OTHER
TYPE OF PERSONAL INJURY.
The appliance is equipped at
the factory with an electric
supply cord set 4 wires type
with ring terminals (L1, L2, N,
Ground) suitable for range use
UL/CSA listed type SRDT/DRT
2x6AWG (L1, L2)+2x8AWG (N,
G) rated 300V, 40 or 50A with
fused plug type NEMA 14-50P;
cable length 1.5m in case the
supply cord set must be replaced,
it must be replaced with an
identical set having the save
technical specifications and
installed using the following
directions:
1.) Disconnect appliance from
electrical power supply receptacle
2.) Slide out the appliance from
the installation place to access
the back enclosure
3.) Remove back enclosure panel
by removing the 6 screws as
shown below.
4.) Loose strain relief
by unscrewing two
strain relief's screws in
diagram
5.) Remove damaged
supply cord set by taking off
the 4 electrical connection
screws (block L1, N, L2 and
Ground screw, see
diagram)
6.) Insert the new supply
cord set in the strain relief
and lock it with two strain
relief’s screws in suitable
position
7.) Fix well the ring
terminals G, L1, N, L2 of
the new supply cord set, as
shown in diagram with its 4
screws
8.) Reinstall the back
enclosure panel with 6
screws
9.) Slide the appliance back
into its proper location
10.) Reconnect the
appliance to the electrical
power
