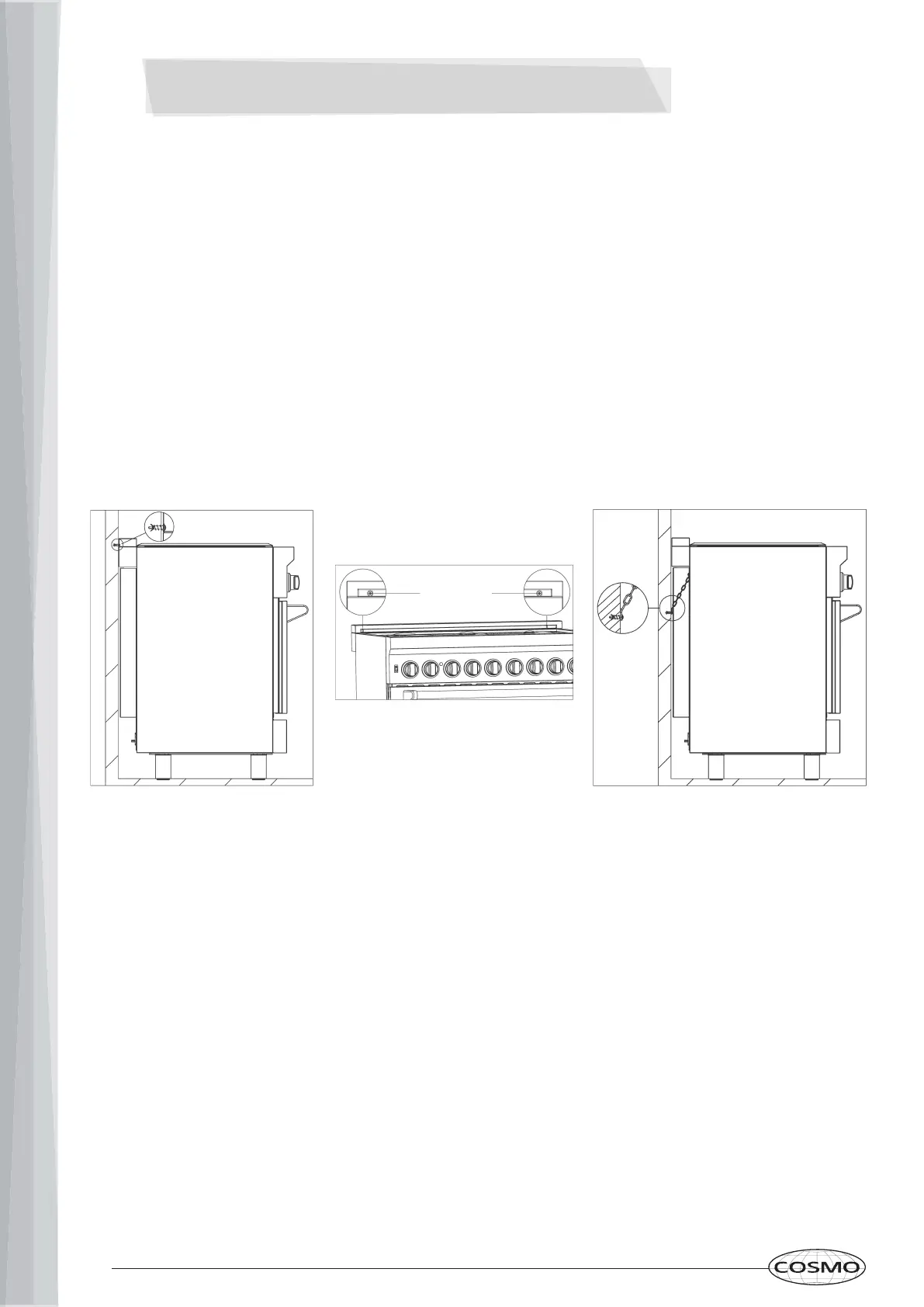

1.) The anti-tip bracket shipped with the range must be properly secured to the rear wall as
shown in the picture below. The height of the bracket from the floor must be determined after
the range legs have been adjusted to the desired height and after the range has been leveled.
Measure the distance from the floor to the bottom of the anti-tip bracket receptacle on the
back of the appliance. Position the two anti-tip brackets on the wall at the desired height plus
1/8" (0.32 cm). The brackets must be placed at 2 - 5/16" (6.0 cm) from each side of the range.
The distance between the two bracket is 25 - 1/4" (64.1 cm). Secure the brackets to the wall
with appropriate hardware. Slide the range against the wall until the brackets are fully inserted
into their receptacles on the back of the range.
Check to see that the Anti-Tip device is installed properly. Grasp the top rear edge of the
range and carefully attempt to tilt it forward. Verify that the Anti-Tip device is engaged.
2.) Or, use the anti-tip chain, and tighten up with fixed screw on the wall, and when the wall
not suitable for installation, the chain shall be fixed to the cabinet structure.
INSTALLATION: ANTI-TIP DEVICE
