YHC 700 7. YHC Configuration
● The bridge address MUST be specified in the form: "BRG:xx id:yy" where "xx" is the
slave address of the BRG receiver, and "yy" is the id of the bridge physically
connected to the energy meter
● The polling time may be different from the time with which YHC700 communicates the
monitoring data to the supervisor; YHC could also perform a continuous polling

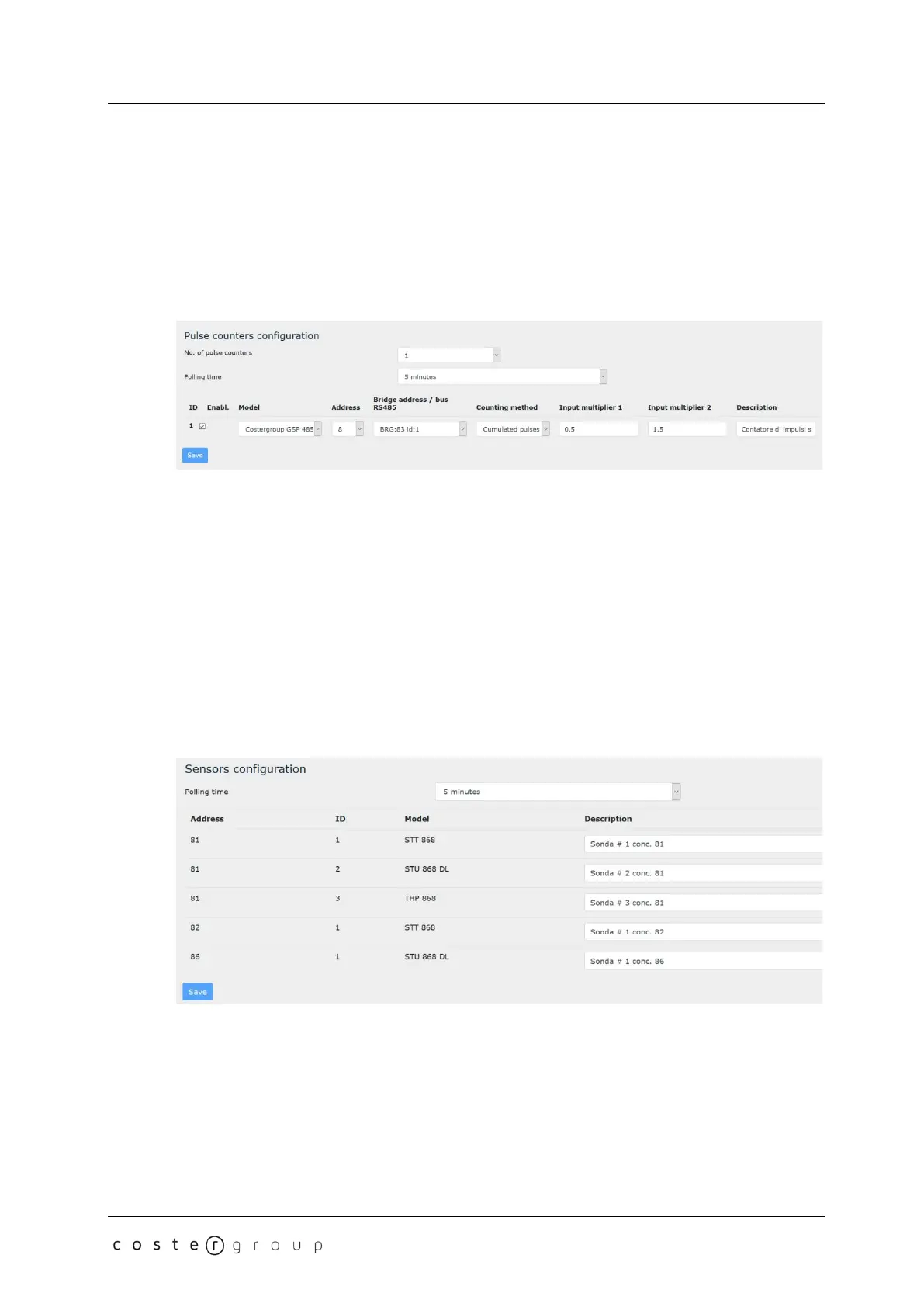

7.2.2.1.2 Pulse counters configuration
In this section, you can specify:
● The number of pulse counters managed (from 0 to 10). Default: 0
● The polling time (how often YHC will read the pulse counter data - see NOTE in
section 7.2.2.1.1). Default: disabled.
● For each pulse counter you can specify:
○ Whether it is enabled or not.
○ The pulse counter model (to date, only GSP 485 - see section 2.4.2)
○ The pulse counter address
○ The address of the BRG868 through which the pulse counter is read, or the
option of the pulse counter direct connection the RS485 bus. Default: bus 485
○ The pulse counting mode. Default: Cumulated pulses
○ Possible multipliers to be applied to pulse inputs 1 and 2. Default: 1.
○ A short description
7.2.2.1.3 Sensors configuration
In this section, you can:
• Insert the YHC polling time (the rate at which YHC700 will request sensor data from
CSW868 - see NOTE in section 7.2.2.1.1). Default: disabled.
o This value is completely independent from the rate at which CSW868 will
request data from the sensors.
• For each sensor, one can:
o Be informed on the address of the receiver the sensor is connected to, the
sensor id and model
o Insert a short description
23
