54

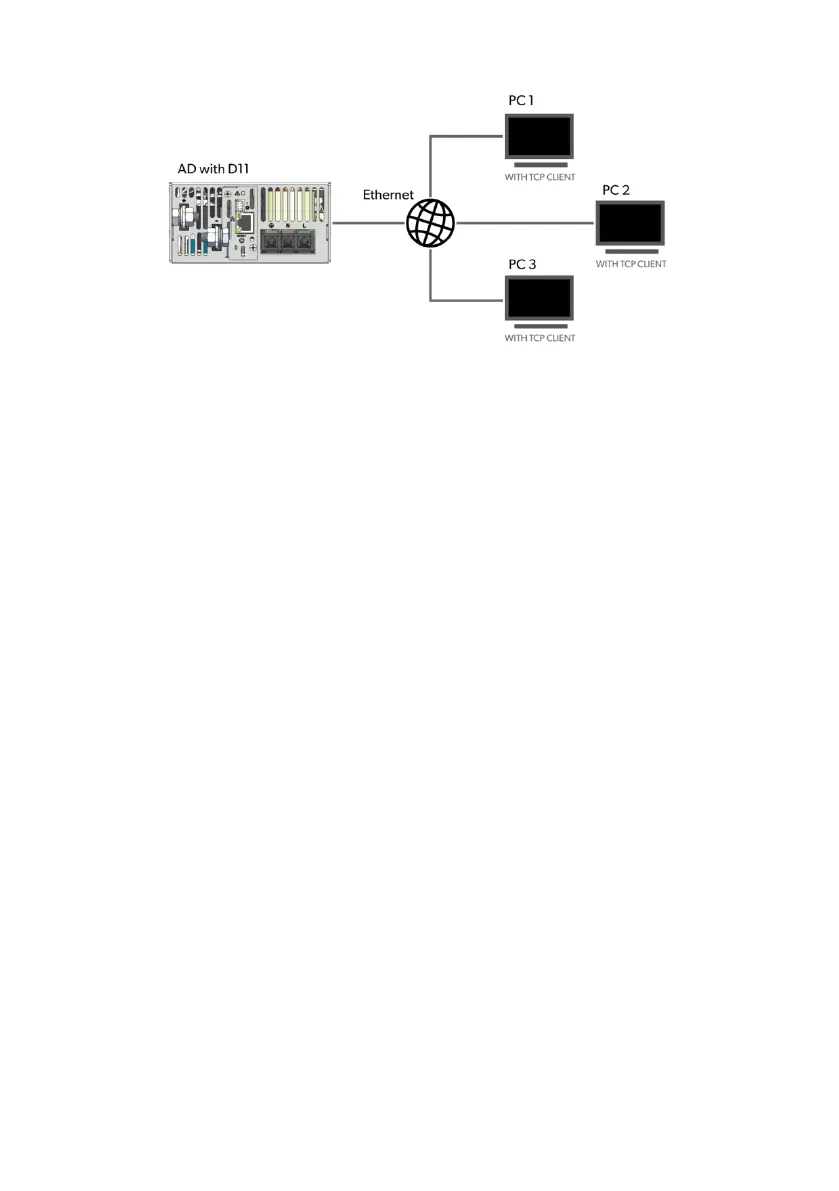

Connect to D11
Select the IP Address of the Server and Server's Port Number(Default 160) to
connect D11 with TCP CLIENT software
Authorized access and Password
Input command DIRECT <password> to enable direct communication.(password
is same with WEB)
Input command DIRECT END to disable direct communication.
Monitor & Control Command
The command is same COTEK STANDARD PROTOCOL
4-10-1 SNMP MODE
SNMP is used to monitor and manage AD Series on networks.
D11 supports SNMPV2C version.
MIB File
AD-Series comes with so-called MIB files that describe the parameters and readings which
are available for monitoring via SNMP.
