The detail exponent and resolution of main parameter is summarized as below:
Exponent Resolution
For commands that report the output voltage, the module supports the linear data
format consisting of a two bytes value with a 16-bit, unsigned mantissa, and a fixed

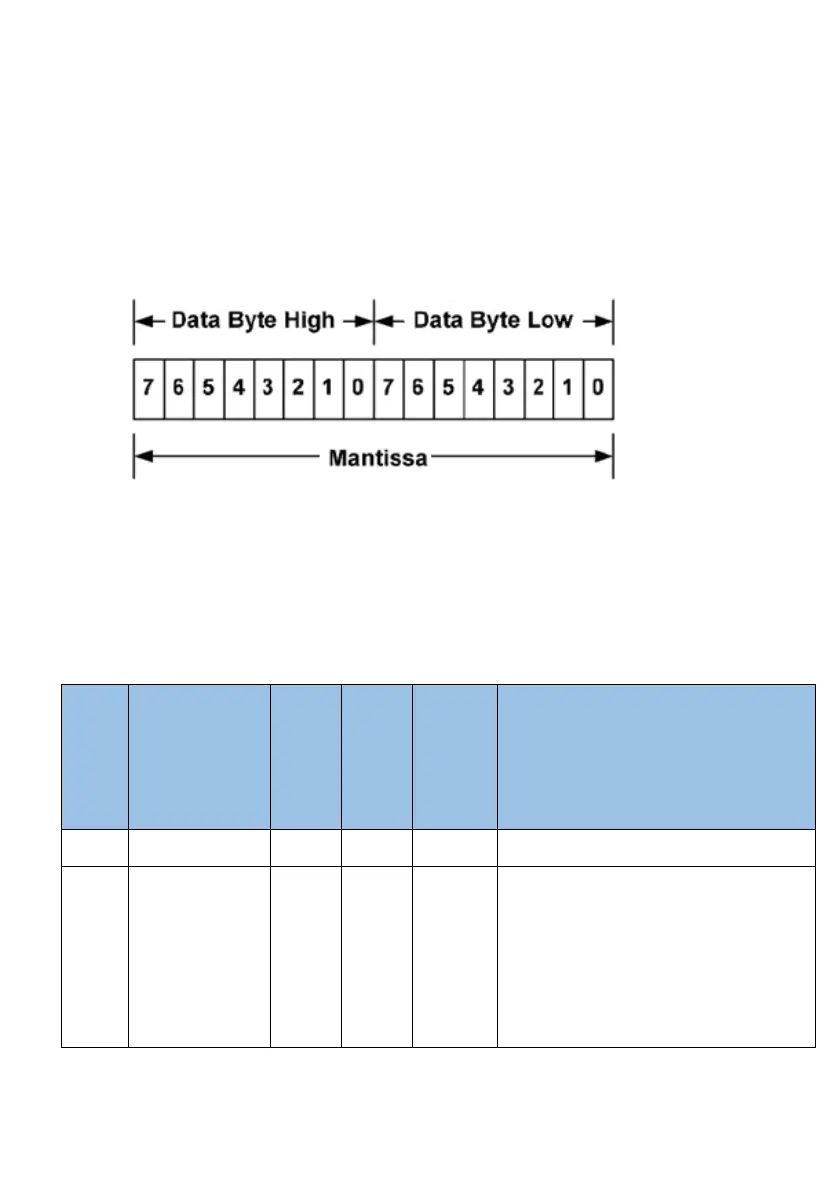

exponent of -12. The format of the two data bytes as shown below:
The equation can be written as:
Vout = Mantissa x 2-12
2-6. Supported PMBus Commands
Write protected at power up by default
0x80: Disable all writes except
WRITE_PROTECT
0x00: Enable writes to all commands
Needs to be 0x00 to enable write
