Cotek AD-1500 - Function Description; Mounting the Device; Configuring Network Settings on the Computer

43

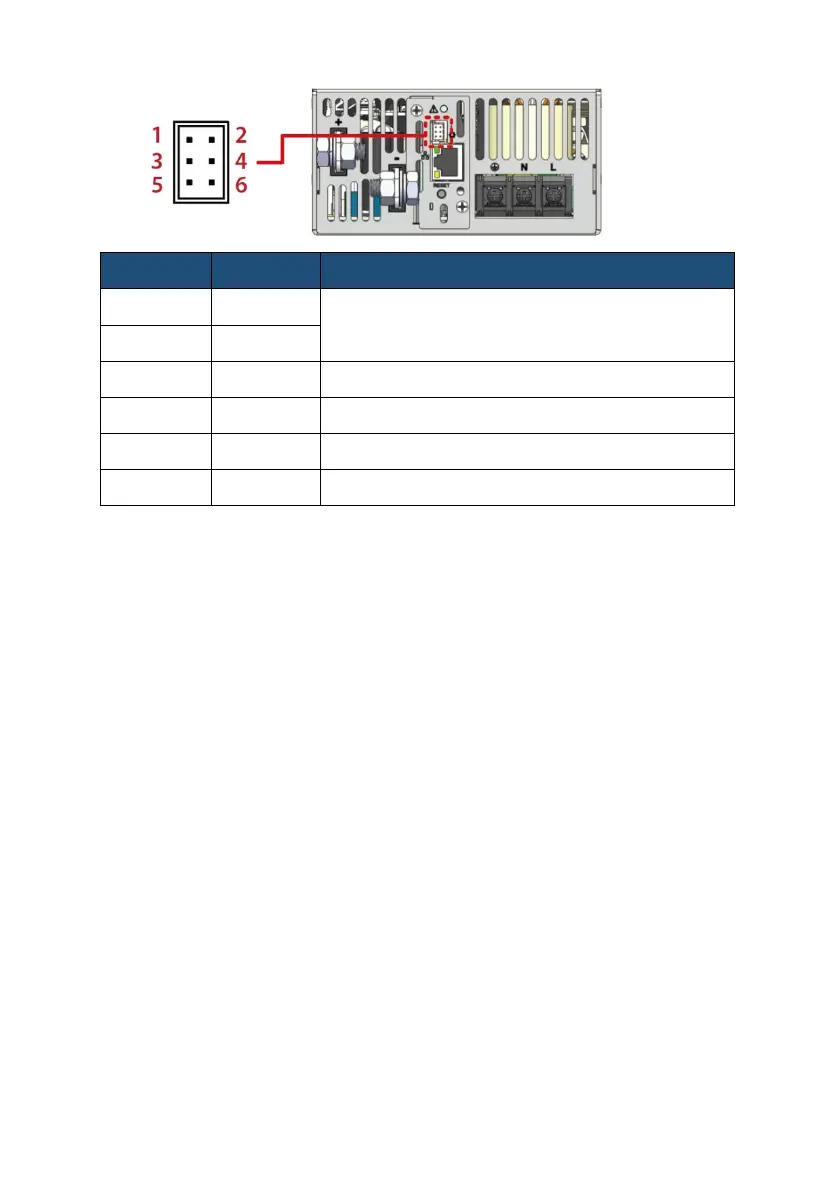

pin
number
Function
Description
1
H_TERM
Short pin 1&2 to Enable CANBUS Terminator
2
L_TERM
3
CANH
CAN HIGH
4
CANL
CAN LOW
5
POK
Power OK
6
GND
Communication Ground
4-6. Mounting the Device
4-6-1 Mounting and Installation Location Requirements
4-7. Configuring Network Settings on the Computer
4-7-1 Information on Network Settings on the Computer
Before you commission D11 for the first time, set the computer to the network area of the
D11. Read the following subsection, which describes the procedure for your operating
system. If you use an operating system, for which the procedure is not described, refer to
the manual of your operating system to find out how to set the computer IP address to
192.168.10.1 and the Subnet mask to 255.255.255.0. You can then configure the D11 for a
local network via the user interface.
4-7-2 Windows 10, Windows 11
1. Start the computer.
2. In Windows select ”Start”
