Cotek AD-1500 - Page 45

42

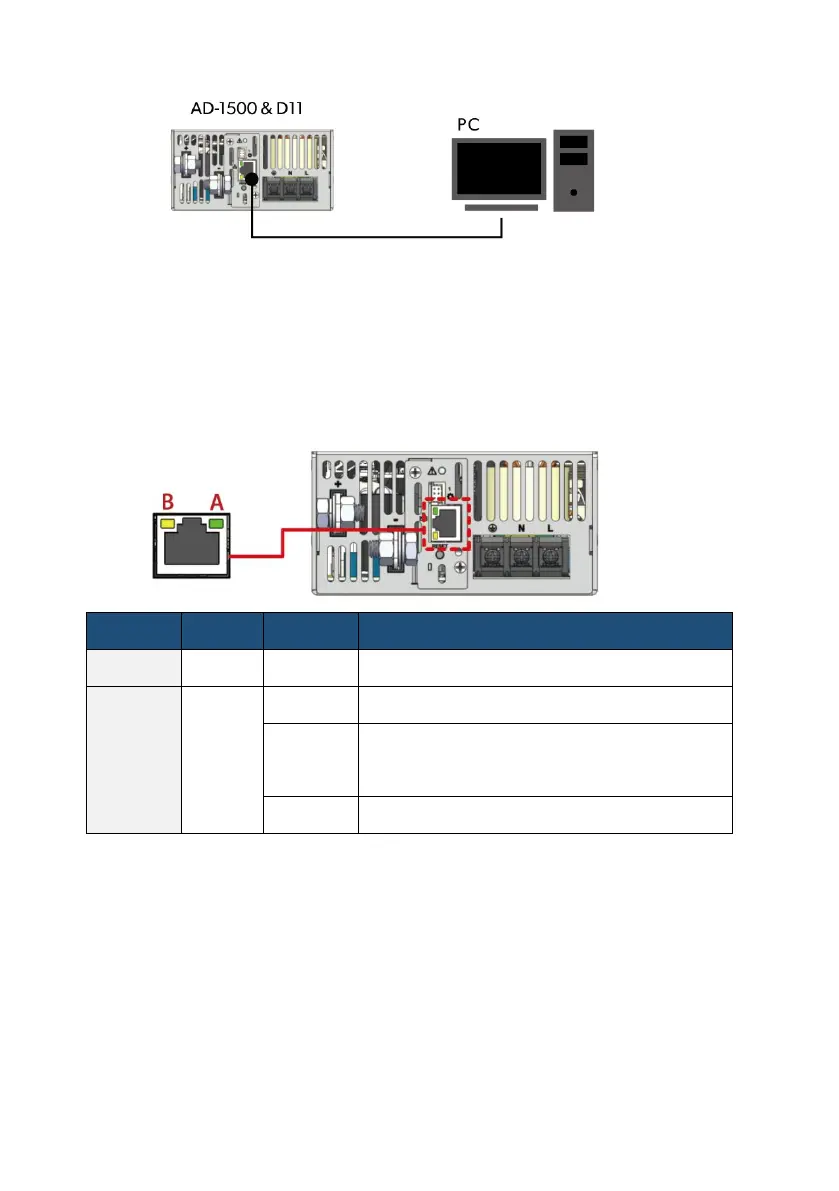

4-5-3 Overview of the LEDs on the Network Connection
Position
LED
State
Meaning
A
Green
On
Active when Power On.
B
Yellow
On
Active when linked in 100Base-TX mode.
Flashing
D11 is currently transmitting or receiving data
(activity).
Off
No connection established
4-5-4 Position B Pin Assignment
