2. Functional Characteristics Introduction
2-1. Features
z Low Frequency transformer design is capable of driving high reactive
and capacitive loads
z Power ON / OFF remote control (Green Terminal)
z Input & output fully isolation
z Thermal control fan
z Input protection烉Reverse Polarity (Fuse) / Under Voltage / Over
Voltage
z Output protection烉Short Circuit / Overload / Over Temperature
2-2. Mechanical Drawing

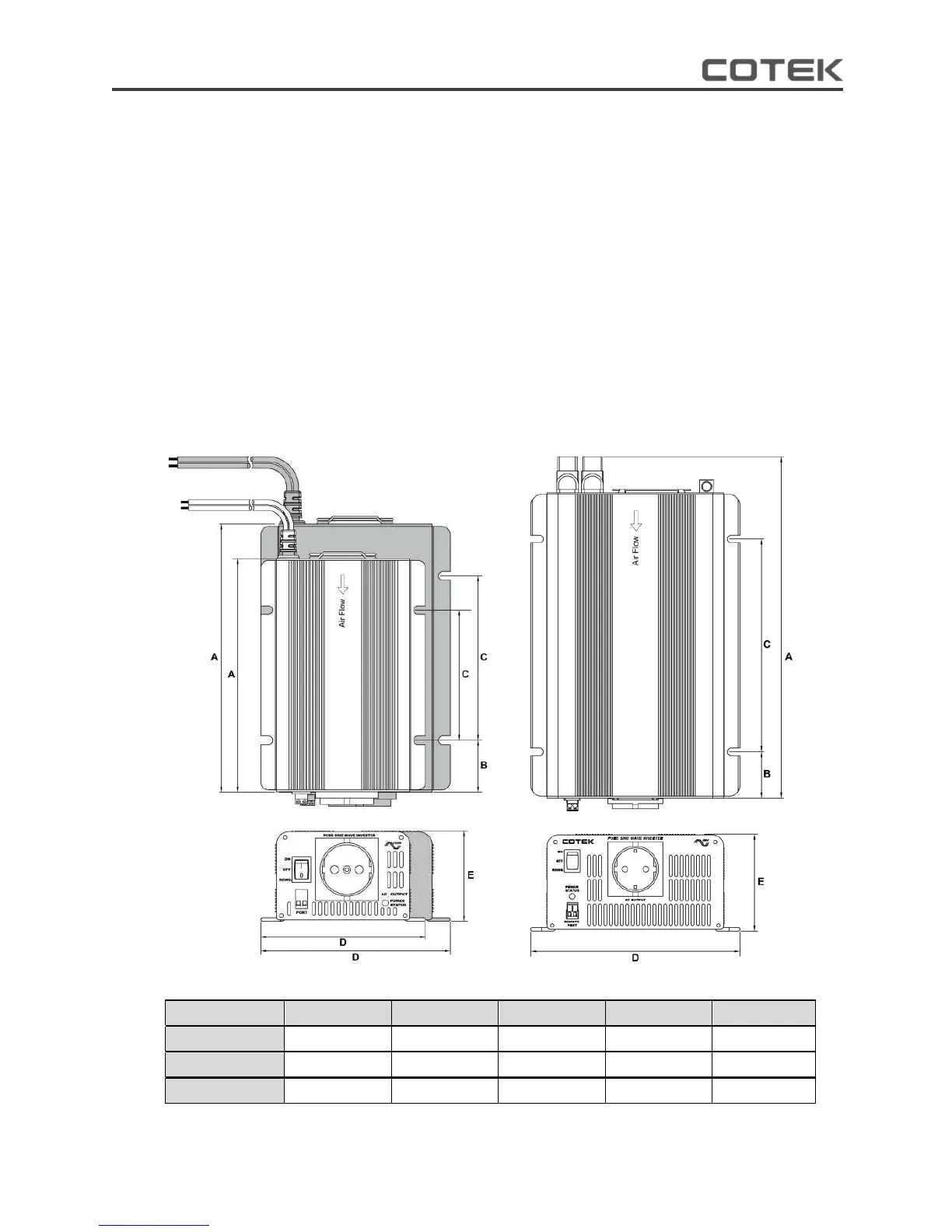

S150 / 300 drawing S500 drawing
Model
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
S150
188
41.5
105.0
132
73
S300
215
41.5
132.0
154
73
S500
314
42.5
196.0
192
89
