Cotek S Series - Rear Panel Introduction

8
LED Status
Description
Slow Red
Blink
UVP
Intermittently
Red Blink
OTP
Solid Red
OLP

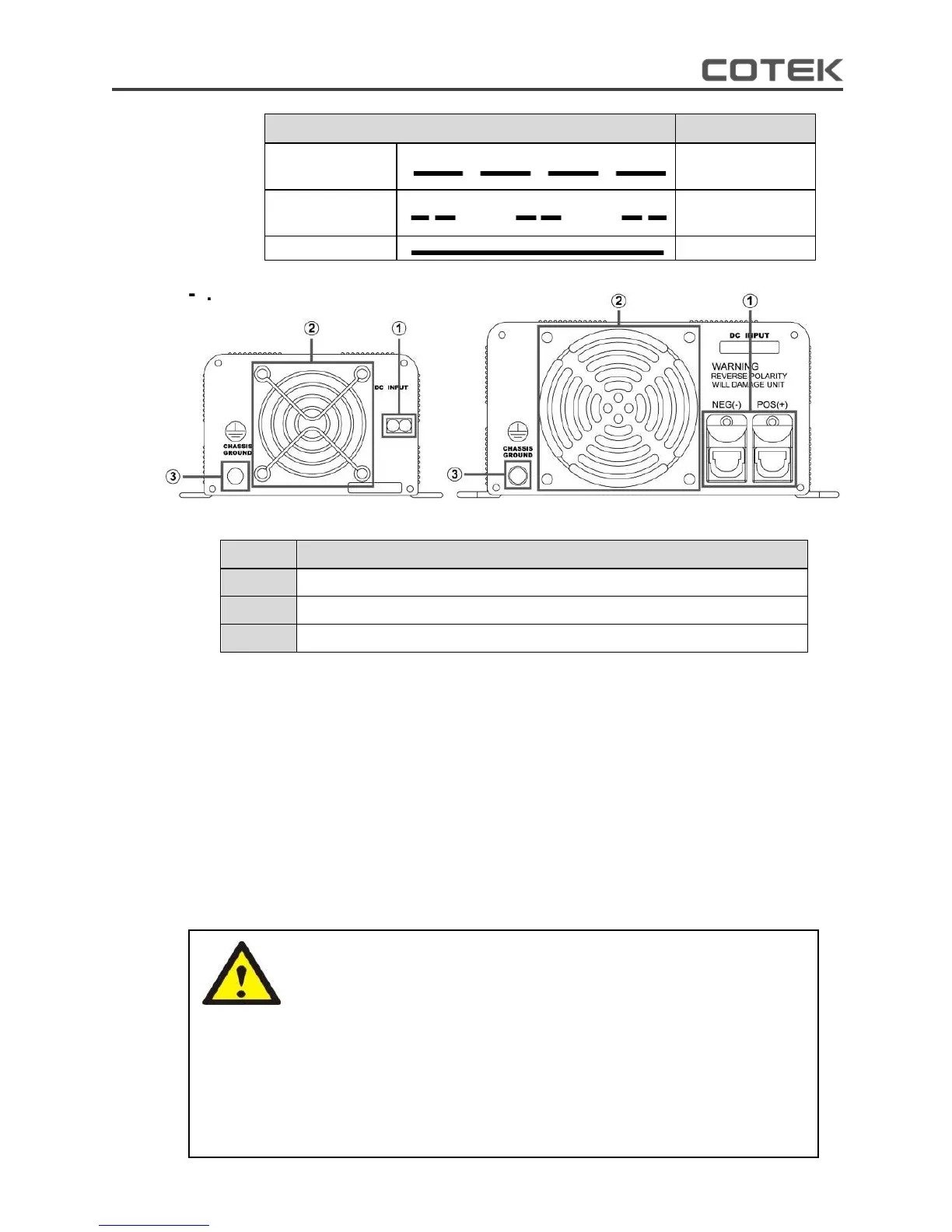

3-2. Rear Panel Introduction
S150/300 Rear Panel S500 Rear Panel
Model
S150 / S300 / S500
M
DC input terminal
N
Ventilation mesh
O
Chassis ground
3-2-1. Input terminals烉
Connect the input terminal to 12v / 24V battery or other 12V /
24V power source. ˰為˱represents positive, and˰炼˱represents
negative. Reverse polarity connection will blow the internal fuse
and may damage inverter permanently.
3-2-2. Ventilation mesh烉
Maintain at least a 3-inch distance from anything surrounding it.
3-2-3. Use wire # 8 AWG to connect Chassis ground with Vehicle
Chassis.
WARNING!
Do not combine the 12V model with 24V battery or the unit will
be destroyed immediately.
Operating with the inverter without a proper ground
connection may cause an electrical safety hazard.
Damage caused by reversed polarity is not covered by the
warranty. Ensure the power switch is in the OFF position
before putting the battery in.
3
-
2
.
Re
ar
Panel
Introduction
