COTES C35 OPERATING AND SERVICE HANDBOOK page 54/71

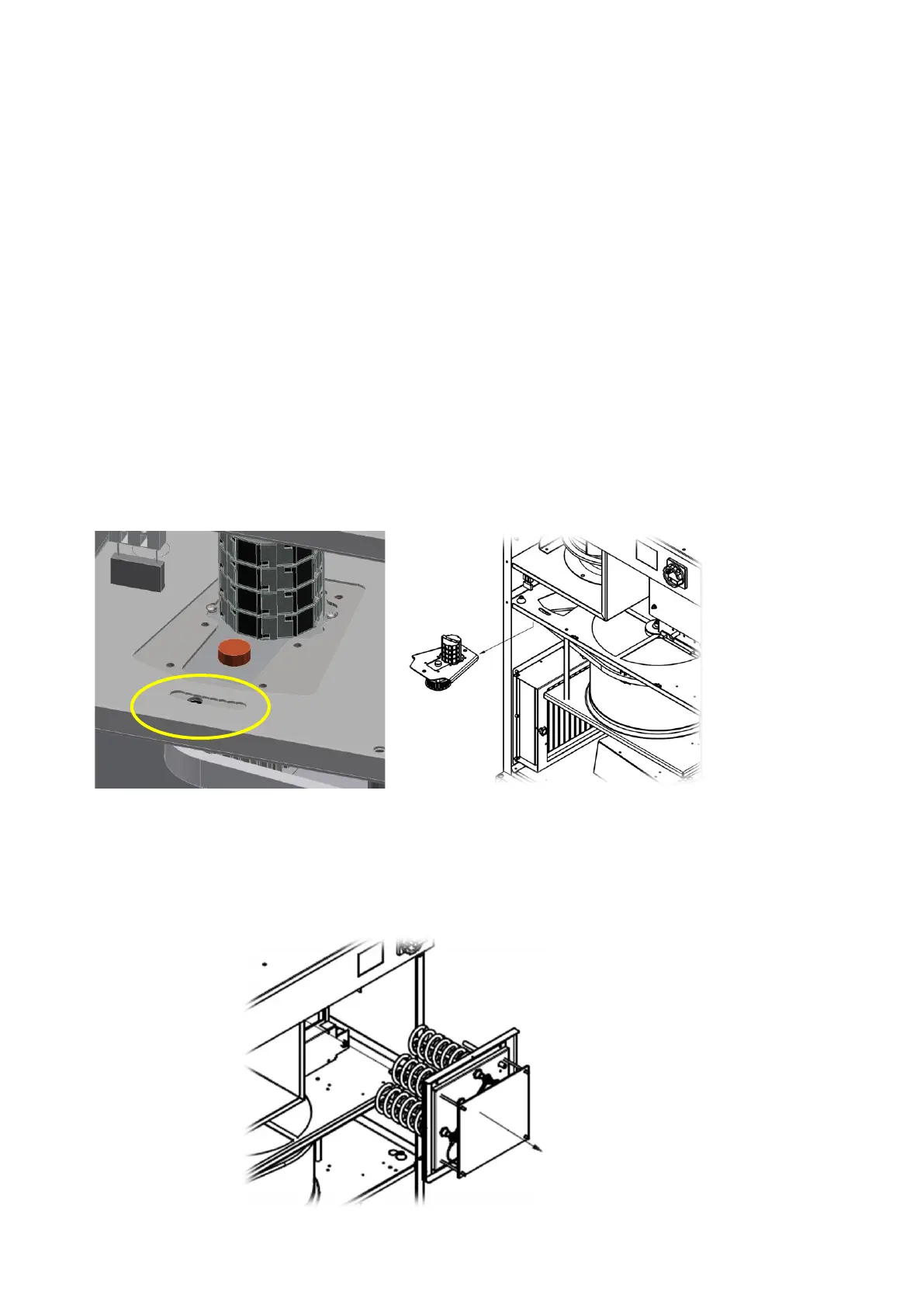

Replacing gear motor
The gear motor is installed/assembled on a bracket for easy removal and installation, because the
combined assembly is extracted from the cabinet together. To remove the gear motor, the belt must
first be loosened.
• Remove the bolt/nut in front of the gear motor (see picture below).
• Disconnect all electrical connections.
• Remove the drive belt from the pulley, and then remove the gear motor.
• You can now fit a replacement gear motor.
• Tighten the belt, by choosing a corresponding hole for the bolt/nut in front of the gear motor
(see picture below).
• Reconnect all electrical connections.
When re-starting the unit, check that the rotor is moving. If not, swap the two cables on the motor.
Replacing electric heaters
All electric heaters are mounted in the front of the heater section of the dehumidifier.
To replace these units, disconnect the wiring and unscrew the plate. You can then withdraw the plate
and heaters from the heating section.
