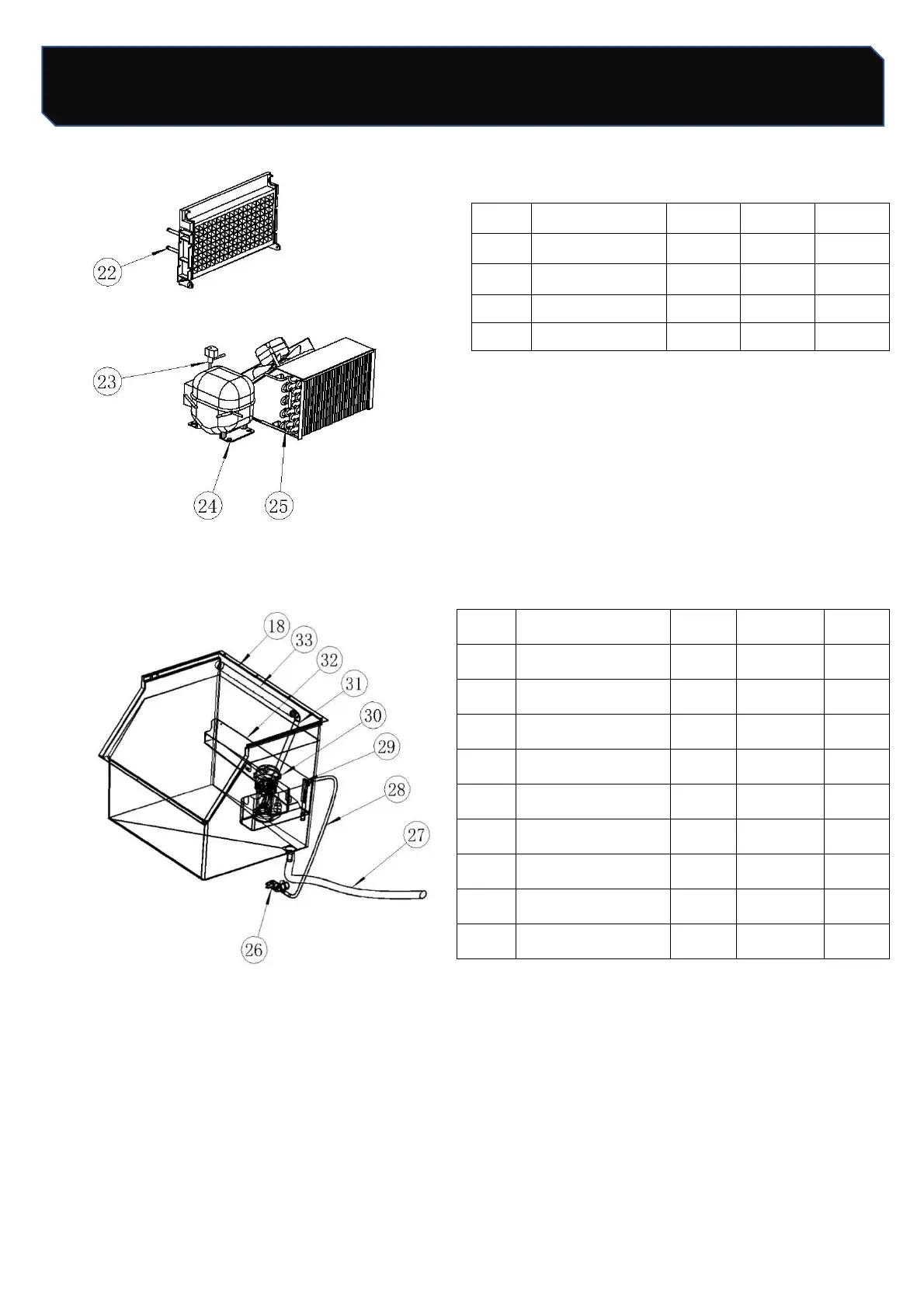

Explosive View
Explosion diagram of refrigeration system
Water system explosion diagram
Serial
Figure
LB175A
LB210A
LB300A
22
Evaporator
1
1
1
23
Solenoid Valve
1
1
1
24
Compressor
1
1
1
25
Condenser
1
1
1
Serial
Figure
LB175A
LB210A
LB300A
18
Ice pail
1
1
1
26
Inlet valve
1
1
1
27
Drain-pipe
1
1
1
28
Inlet pipe
1
1
1
29
Intake pipe joint
1
1
1
30
Water pump
1
1
1
31
Water supply pipe
1
1
1
32
Water tank
1
1
1
33
Water pipe
1
1
1
