COTLIN LB Series - 18 Explosive View

No.：JT190100017 Version No.：A0
Note: The subsequent versions of this manual are subject to change without notice, thank you
19 / 21

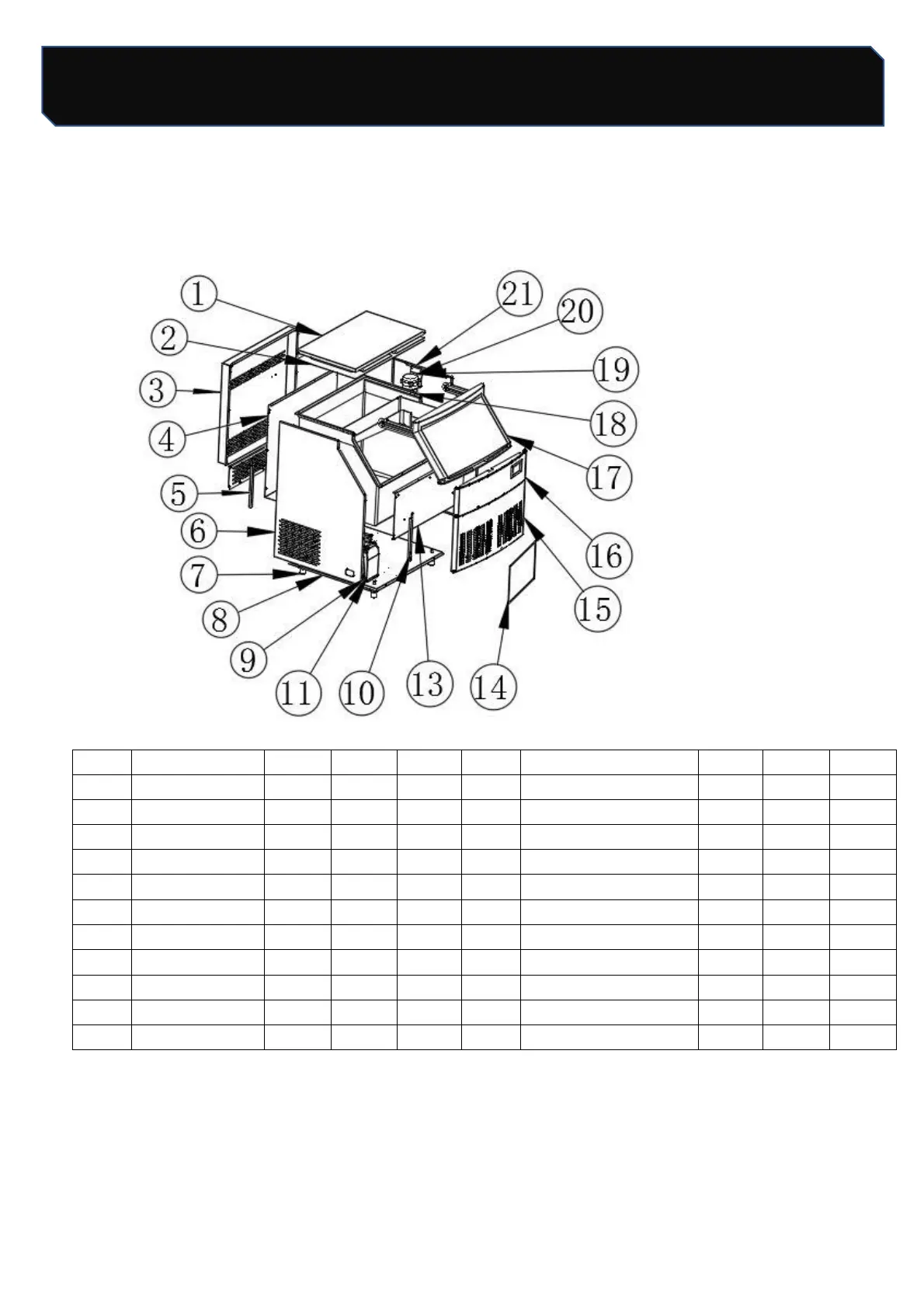

Explosive View
18．Explosive view
Stuctural Explosive view
Serial
Figure
LB175A
LB210A
LB300A
Serial
Figure
LB175A
LB210A
LB300A
1
Top cover plate
1
1
1
12
Wind screen
/
/
1
2
PP sheets
1
1
1
13
The guard B
1
1
1
3
Postnotum
1
1
1
14
Filter net
1
1
1
4
The guard A
1
1
1
15
Ventlight
1
1
1
5
After-poppet
2
2
2
16
Decorative sheet
1
1
1
6
Left-side plate
1
1
1
17
Door frame
1
1
1
7
Adjustable foot
4
4
4
18
Ice pail
1
1
1
8
Baseplate
1
1
1
19
Water pump box
1
1
1
9
Electrical box
1
1
1
20
Water pump lifted the lid
1
1
1
10
Front bracket
2
2
2
21
Right-side plate
1
1
1
11
Box cover
1
1
1
