Installation 4
Installation Wiring Diagrams
Risk of electric shock. Can shock,
burn or kill. Ground control box, all metal
plumbing, and motor frame with copper wire in
compliance with local codes. Use a ground wire
at least as large in gauge as the wires supplying
power to themotor.
Single Phase, 2 Wire
2-wire pumps have two power supply wires
(Black/Black) and one ground wire (Green).
Control box is not required. See Figure 1 for
correct hook-up information for 2-Wire motors.

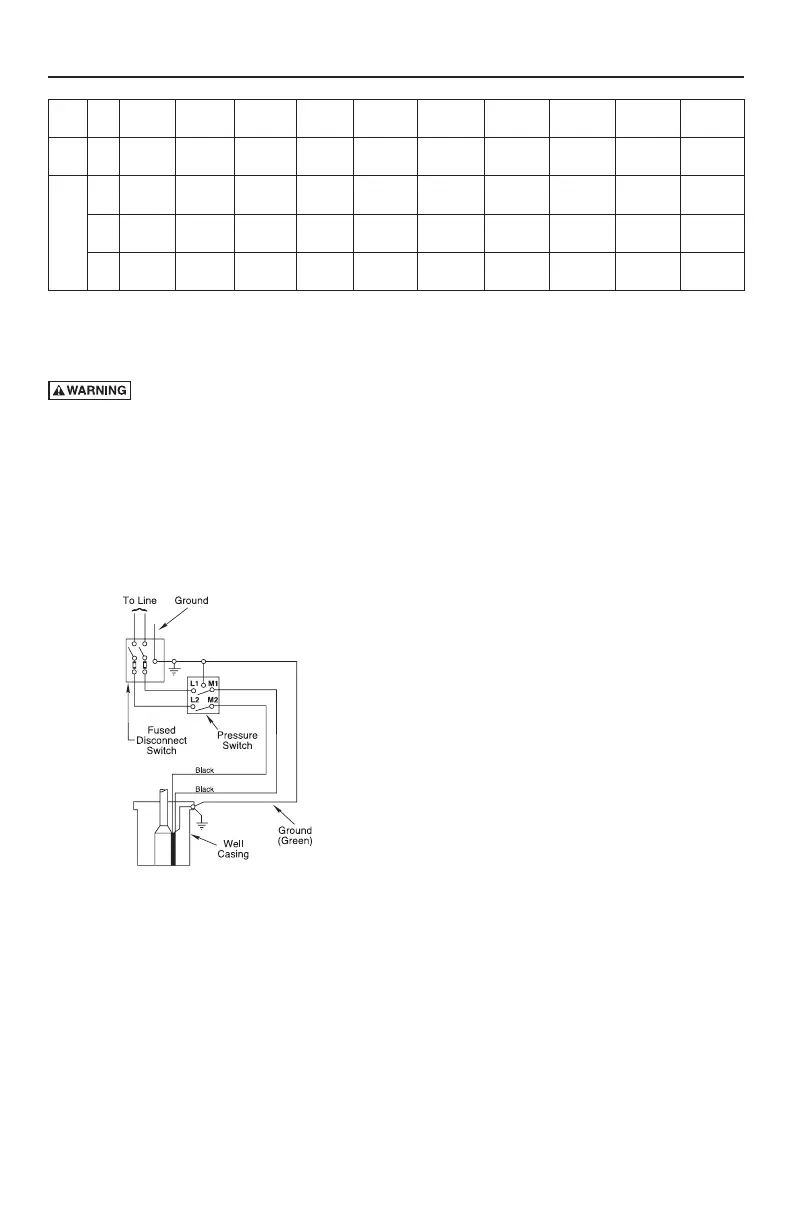

Figure 1 - Single phase, 2-wire connections. This
is correct connection information for 115 and
230 volt 2-wire motors only.
Volts HP
14 AWG
(2mm²)
12 AWG
(3.3mm²)
10 AWG
(5.3mm²)
8 AWG
(8.4mm²)
6 AWG
(13.3mm²)
4 AWG
(21.1mm²)
3 AWG
(26.7mm²)
2 AWG
(33.6mm²)
1 AWG
(42.4mm²)
0 AWG
(53.5mm²)
115 1/2
110
(33)
174
(53)
278
(85)
440
(134)
685
(209)
1092
(333)
1373
(419)
1734
(529)
2184
(666)
2757
(840)
230
1/2
438
(134)
697
(213)
1112
(339)
1761
(537)
2740
(835)
4369
(1332)
5492
(1674)
6936
(2114)
8738
(2663)
11029
(3362)
3/4
365
(111)
581
(177)
927
(282)
1468
(447)
2284
(696)
3641
(1110)
4577
(1395)
5780
(1762)
7281
(2219)
9191
(2801)
1
304
(93)
484
(148)
772
(235)
1223
(373)
1903
(580)
3034
(925)
3814
(1163)
4817
(1468)
6068
(1849)
7659
(2335)
Table 2 - Power Supply Wire (Cable) Length in Feet (m)
Single Phase, 2 Wire Cable, 60 Hz (Copper Wire Size - Service to motor)
Installation must meet United States National
Electrical Code, Canadian Electrical Code,
and local codes for all wiring (as applicable).
If main overload trips, look for:
1. Shorted capacitor
2. Voltage problems
3. Overloaded or locked pump.
