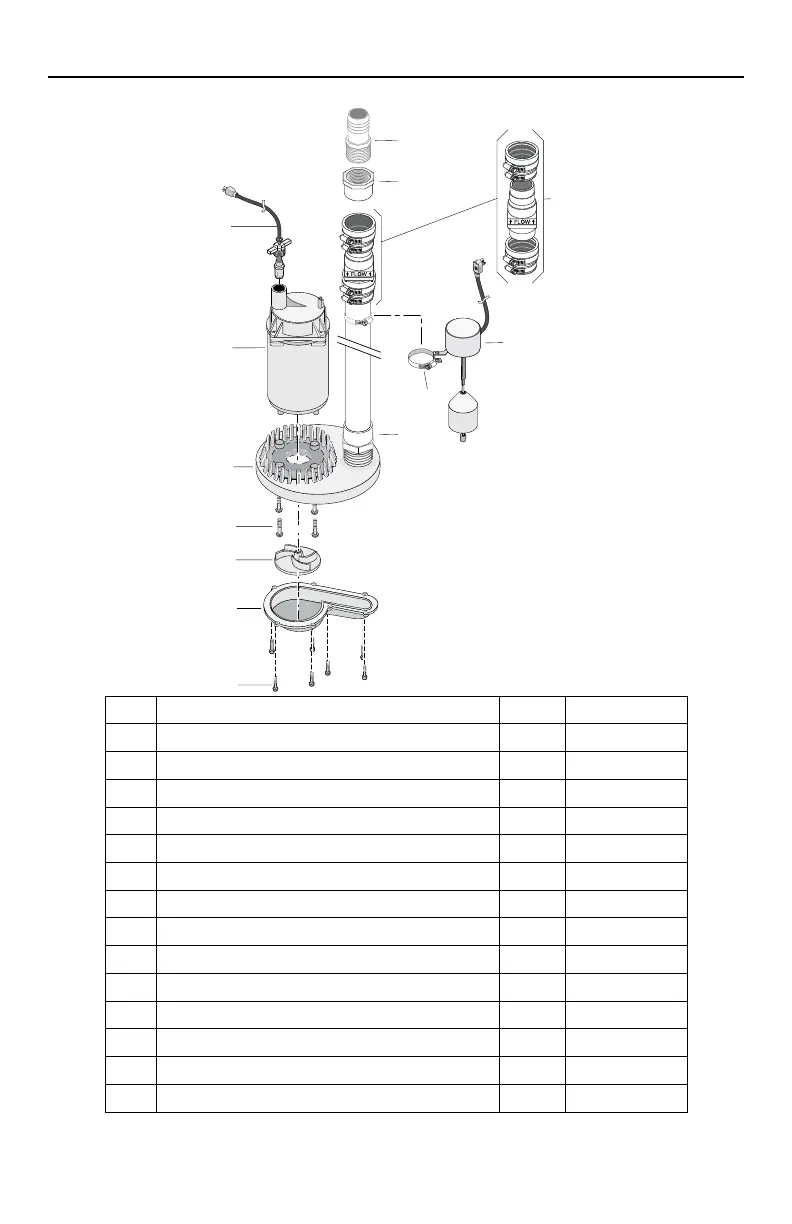

CountyLine CLRP50 - Repair Parts

Repair Parts 8
7
6
5
4
2
1
3
10
11
12
8
13
9
6131 1209
Ref. Description Qty. Part Number
1 Power Cord Assembly 1 PS117-54-TSU
2 Motor 1 **
3 Volute (Upper) 1 PS1-31P
4 Screw, #8-32x5/8” Phillips Pan Head 4 †
5 Impeller 1 RP0000911A
6 Volute (Lower) 1 PS1-30P
7 Screw, #8-16x1/2” Lg. Pan Head 7 †
8 1-1/4” NPT x 1-1/4” Slip Adapter 1 †
9 Switch Clamp 1 †
10 Vertical Float Switch Assembly (includes Ref. 9) 1 FPS17-66
11 Check Valve 1 FP0026-10
12 1-1/2” Slip x 1-1/4” NPT Adapter 1 †
13 1-1/4” NPT x 1-1/4” Hose Barb 1 †
• 1-1/4” x 24’ Hose Kit (includes Key No. 13) 1 FP0012-6U
**If motor fails, replace entire pump.
† Standard hardware item; purchase locally.
• Not illustrated
