Igniter
• Igniter inside tube shown.
• Two fans blow heated air through the igniter tube to ignite the pellets in the burner pot.
Burner Pot
• Burner pot removed from the grill.
• Always ensure the burner pot is clean and empty before each cooking session.
Burner Pot Installed
• Burner pot is installed above the heating element and ready for pellets to drop.
• Pellets drop in from the chute located on the front interior panel.
IMPORTANT- Ensure the front of the burner pot is installed under the pellet chute. If the
burner pot is installed incorrectly, it can prevent pellets from falling into the pot correctly.
The removable burner pot can cause overheating or pellet jams if installed incorrectly.

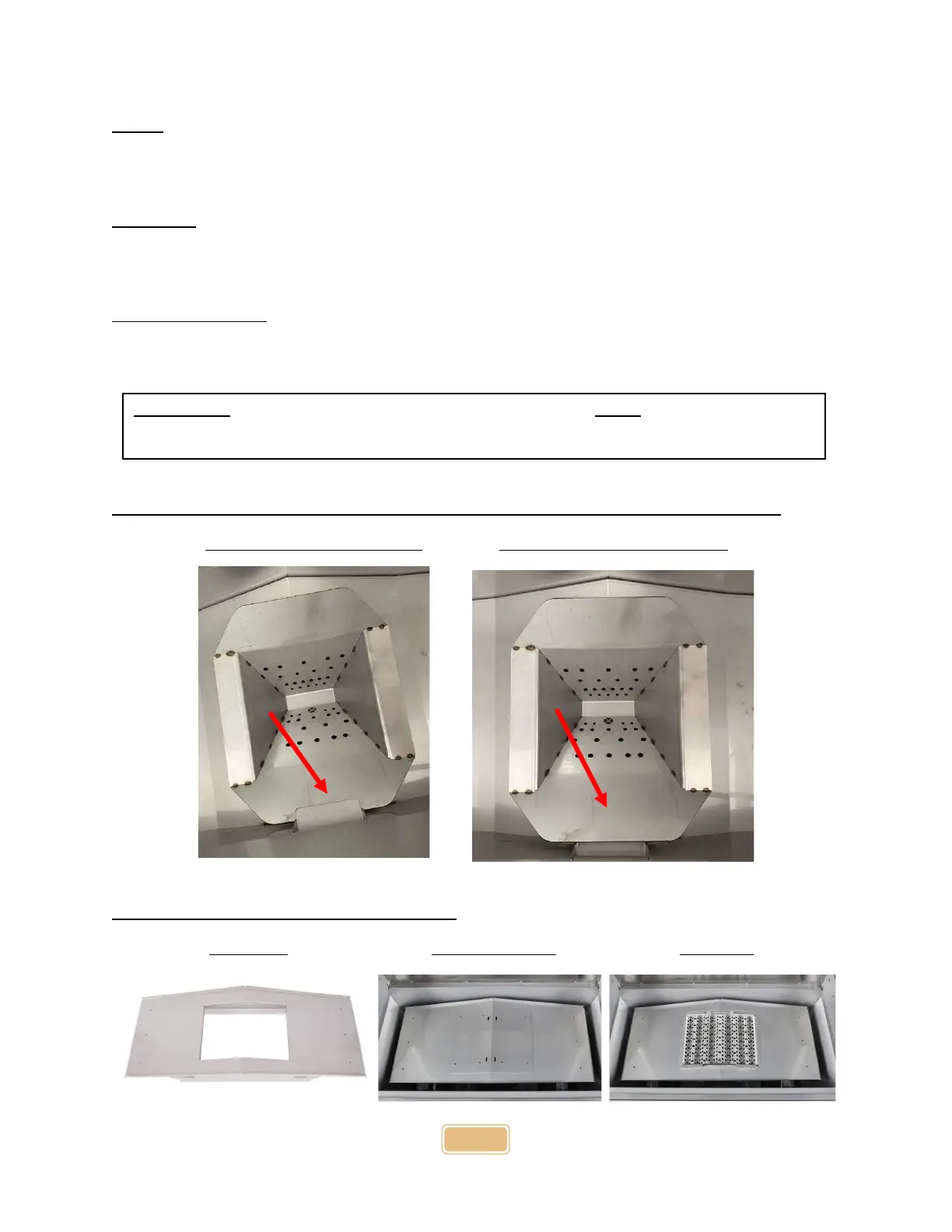

Correct Burner Pot Installation Incorrect Burner Pot Installation
Heat Shield with Smoke/Grill and Sear Grate
Heat Shield Smoke/Grill Grate Sear Grate
