Vehicle Installation Guide / IBR900/950/1100/1150
4/10/17

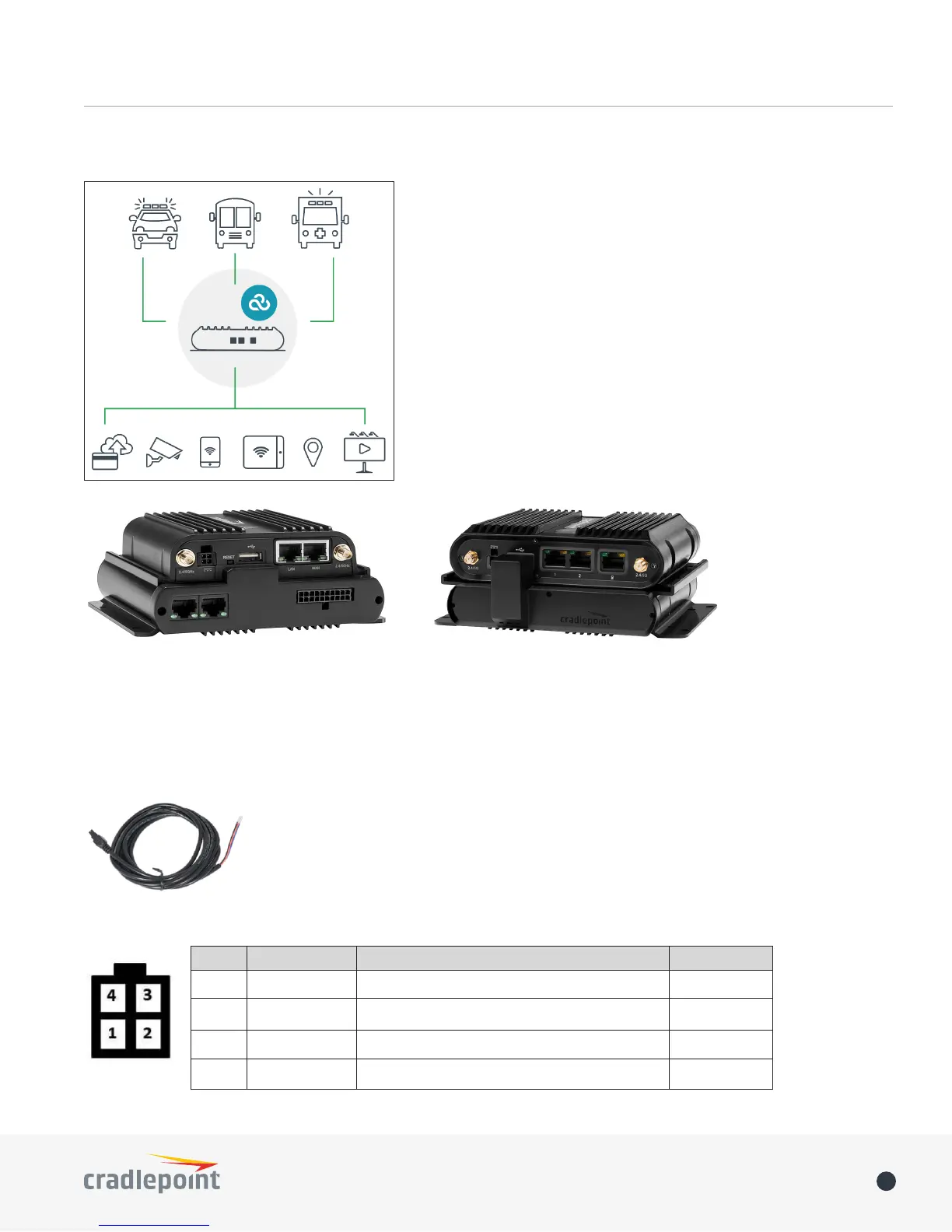

INTRODUCTION
The Cradlepoint COR IBR 900 Series and IBR1100 Series are
compact, ruggedized 3G/4G/LTE networking solutions designed
for mission-critical connectivity in the most challenging
environments.
Ideal for in-vehicle networks including police cars, ambulances,
and mass transit, this cloud-managed solution provides
organizations the ability to scale deployments quickly and manage
their vehicle networks easily in real-time.
With an extensive list of safety and hardening certications, the
COR IBR900 and IBR1100 Series are engineered to protect against
extreme temperatures, humidity, shocks, vibrations, dust, water
splash, reverse polarity, and transient voltage.
You can also add dual-modem capability to your IBR900/950 or
IBR1100/1150 with the optional Dual-Modem Dock. For more
information, visit cradlepoint.com.
POWER & GPIO
The Cradlepoint COR IBR900/950 and IBR1100/1150 include a two meter, 22 AWG direct wire power and GPIO
cable (includes ESD-protected general input and output pins):
This diagram shows the connector pinout. This is the view into the router (or the rear view of the cable
connector):
Pin Denition Details Wire Color
1 Ground - Black
2 Power 9–36 V DC Red
3 Input 3 V input high threshold (36 V tolerant) Orange
4 Output capable of sinking 250 mA Blue
IBR1100
IBR900
