UNPACKING
The dust collector is properly packaged in a
carton for safe transportation. When
unpacking, carefully inspect the carton and
ensure that nothing has been damaged.
While doing the inventory if you can not find
any part, check if the part is already
installed on the machine.

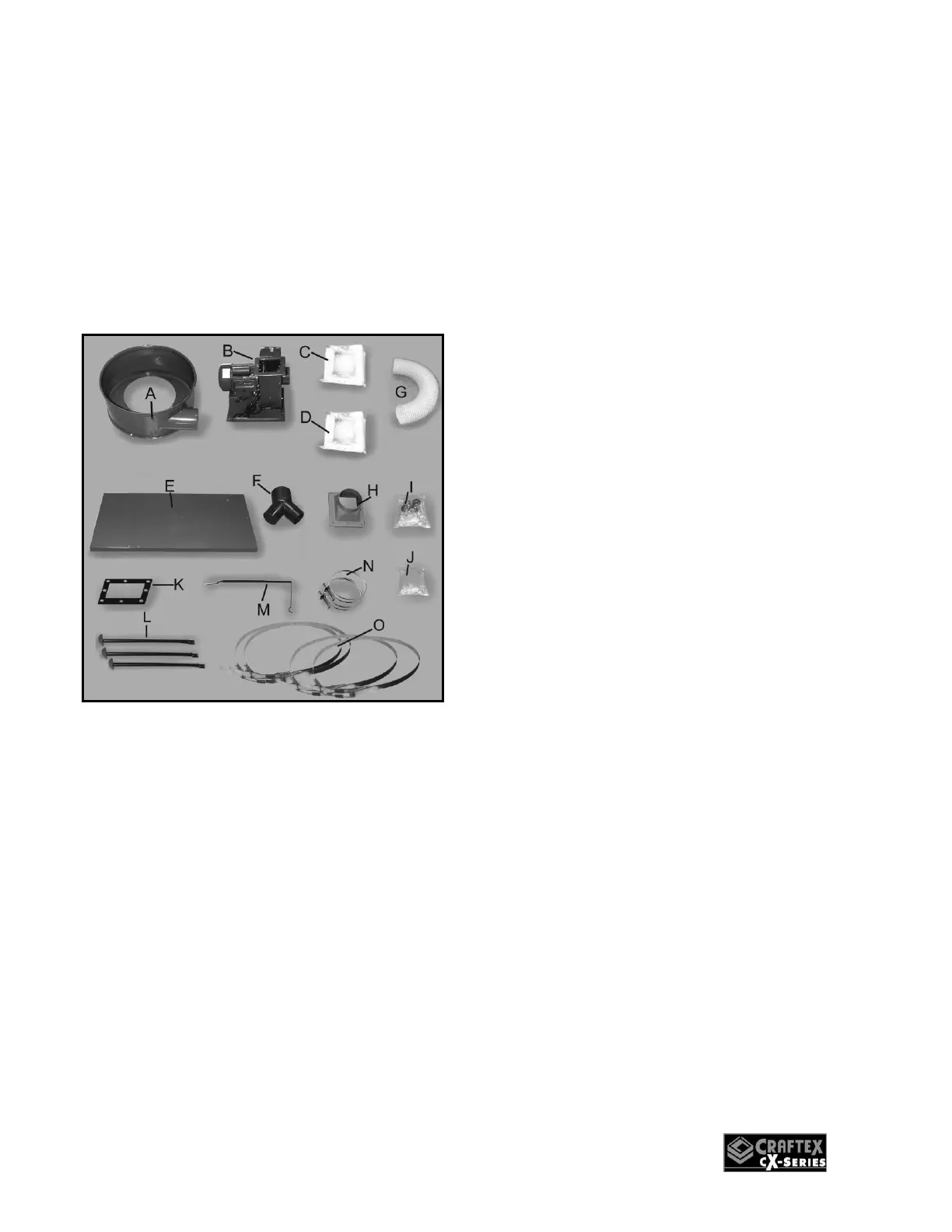

Figure-1 Inventory
CONTENTS QTY
A. Collector Ring .................................... 1
B. Motor / Impeller Unit .......................... 1
C. Top Bag ............................................. 1
D. Bottom Bag ....................................... 1
E. Base Unit ........................................... 1
F. Dual Inlet 4” Each .............................. 1
G. Hose .................................................. 1
H. Outlet Connector ............................... 1
I. Casters .............................................. 4
J. Hardware Bag ................................... 1
K. Gasket ............................................... 1
L. Collector Ring Supports .................... 3
M. Top Bag Support ............................... 1
N. Hose Clamps ..................................... 2
O. Bag Clamps ....................................... 2
SETUP
Before setting up your machine you need to
read and understand this user manual
completely.
The CX424 features four casters installed to
its base unit for easy mobility. If you want to
use the CX424 as a stationary tool, do not
install the casters and find an ideal spot
where your dust collector will most likely be
positioned.
Consider your complete work environment
before placing your machine in the ideal
spot.
