Craftex CX series Quick Start Guide

8

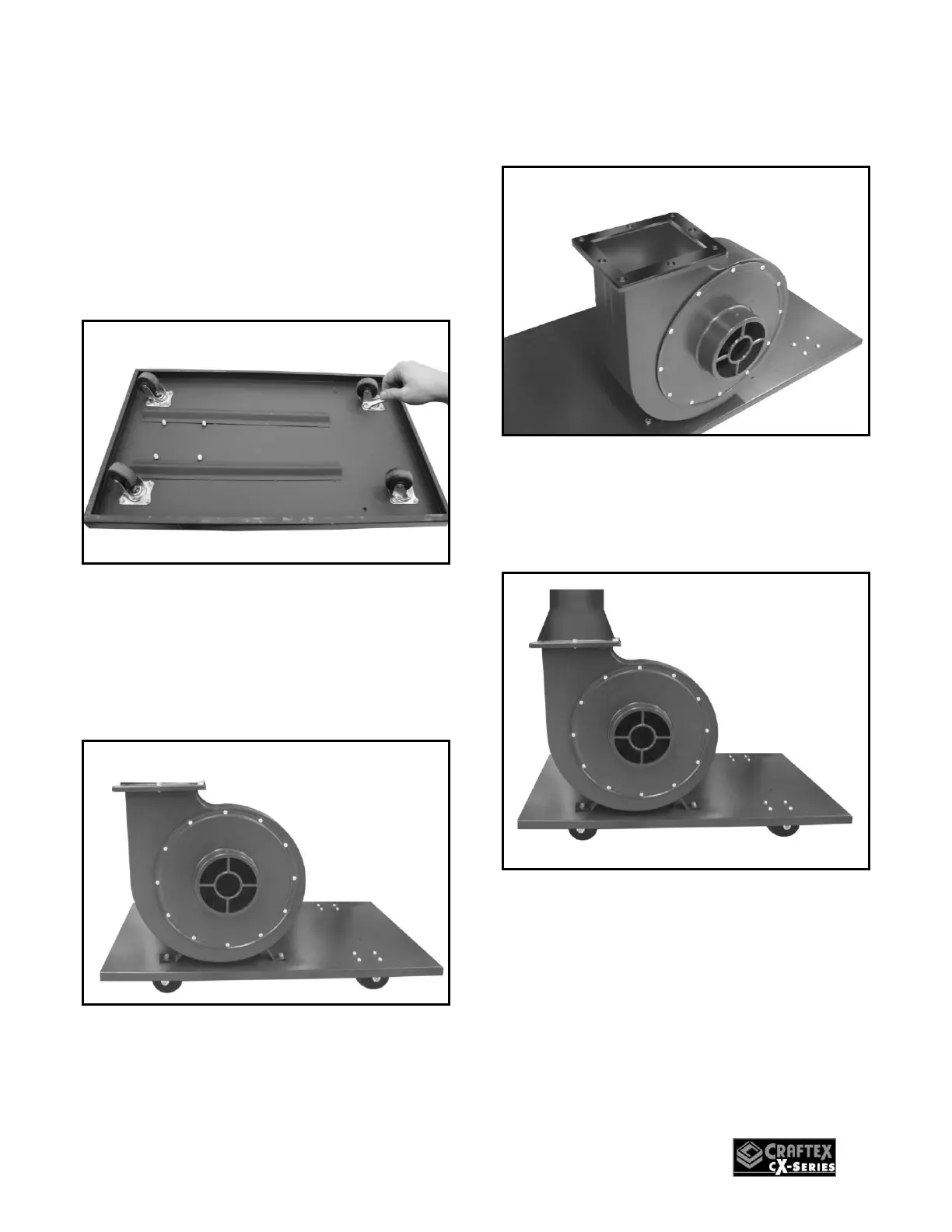

ASSEMBLY
Follow the instructions below to assemble
your CX424.
Place the base unit upside down and install
the swivel casters to the base unit using
screws, nuts and washers provided. See
figure-3.
Figure-3 Installing the casters
Turn the base unit upright and position the
motor / impeller unit on the base unit with
the holes on both units aligned with each
other. Secure the motor / impeller unit to
the base unit using screws and washers
provided. See figure-4.
Figure-4 Installing the motor / impeller unit
on the base unit
Place the gasket on the motor / impeller
opening as shown in figure-5.
Figure-5 Positioning the gasket
Position the outlet connector onto the
gasket and the motor / impeller opening
securing it using screws and washers
provided. See figure-6.
Figure-6 Installing the outlet connector
Attach the three collector ring supports on
to the base unit and secure them using
screws, nuts and washers provided. See
figure-7.
