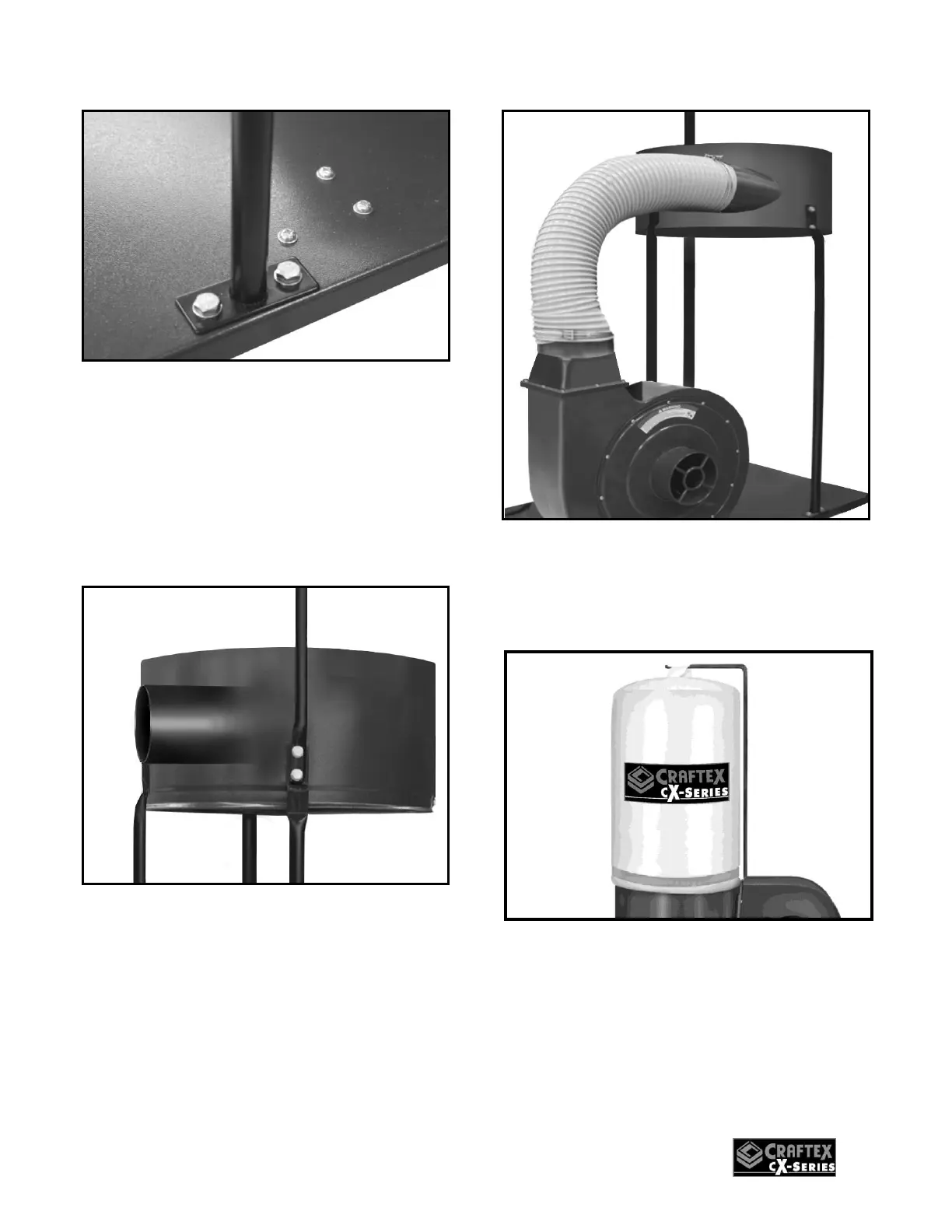

Figure-7 Installing the collector ring support
Attach the collector ring to the collector ring
supports and the upper bag support to the
collector ring as shown in figure-8. Make
sure that the hose opening of the collector
ring is facing the motor / impeller.
Secure the collector ring from both sides
using screws, nuts, and washers provided.
Figure-8 Installing collector ring and the
upper bag support rod
Take the hose provided and attach it with its
one to the outlet connector and the other
end to the collector ring. See figure-9.
Use the hose clamps provided to secure
the hose on both ends.
Figure-9 Connecting the hose from the
outlet connector to the collector ring
Hang the top bag from the support and
install it around the collector ring. Secure it
using bag clamp provided.
Figure-10 Installing the top bag
Attach the foam strip to the bottom of the
collector and trim the excess and evenly
match the ends.
