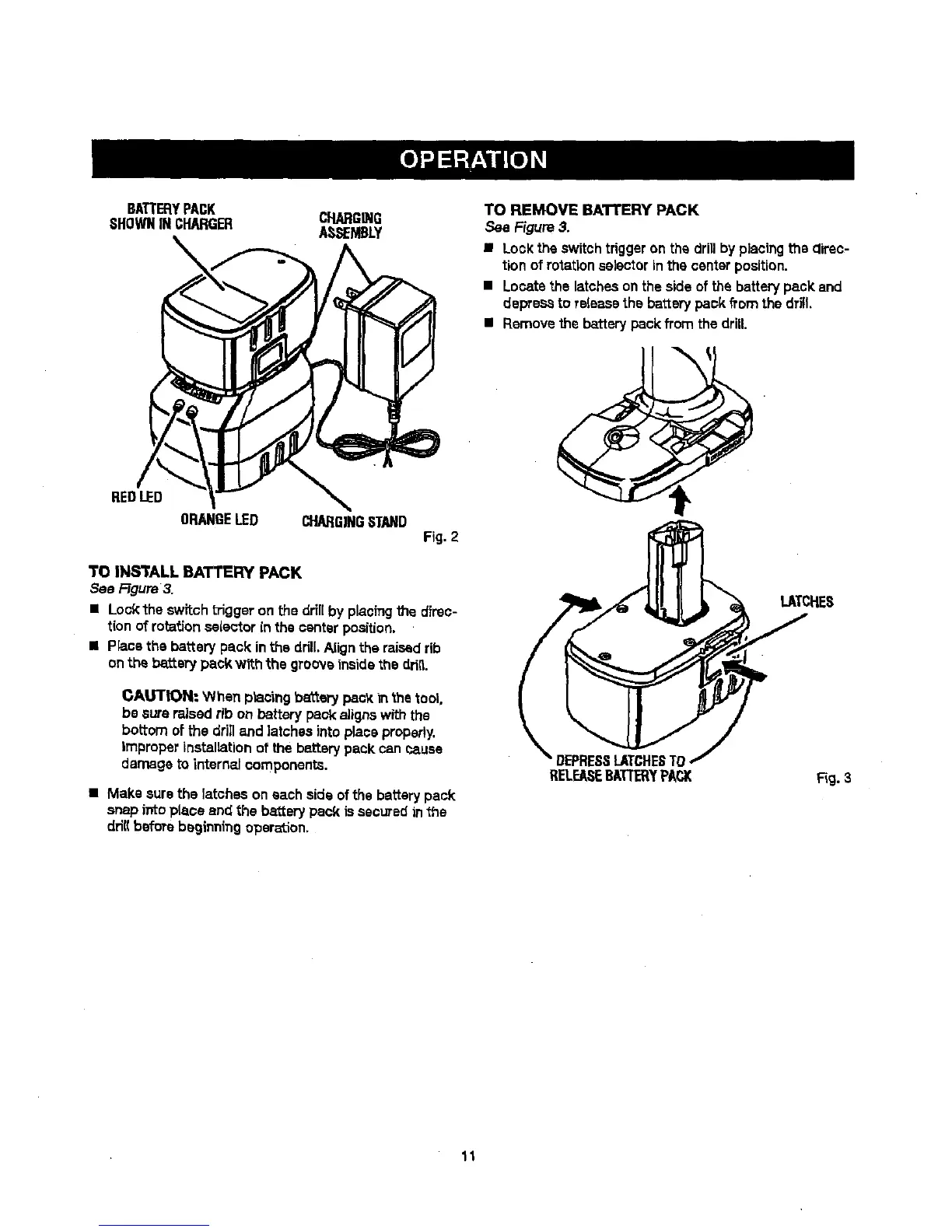

BATTERYPACK

SHOWNINCHARGER CI'.I_GING

ASSEMBLY

TOREMOVEBATTERYPACK

See Figure3.

• Lockthe switchtriggeran the drill by placingthe direc-

tion ofrotation selectorinthe center position.

• Locate the latcheson the side of the batterypack and

depressto releasethe batterypack fTomthe drill.

• Remove the battery packfrom the drill.

REDLED

ORANGELED

CHARGINGSTAND

Fig. 2

TO INSTALL BATTERY PACK

See FTgure3.

• Lockthe switch trigger on the drillby placingthe direc-

t(on ofrotation selectorin the center position.

• Place the battery pack in the ddlLAlignthe raised rib

onthe bakery pack wtth the grooveInsidethe drill

CAUTION: When placingbaC_terypaeY,_nthe tool,

be sure raisedrib on battery packalignswith the

bottom ofthe ddlland latches into placepropedy.

Improper installationof the battery pack can _use

damage to internalcomponents.

• Make surethe latches on each side ofthe batterypack

snap into place and the battery pack issecwed inthe

dd[{before beginningoperation.

DEPRESSUITCHESTO

RELEASEBAT'rERYPACK

LATCHES

F_g.3
