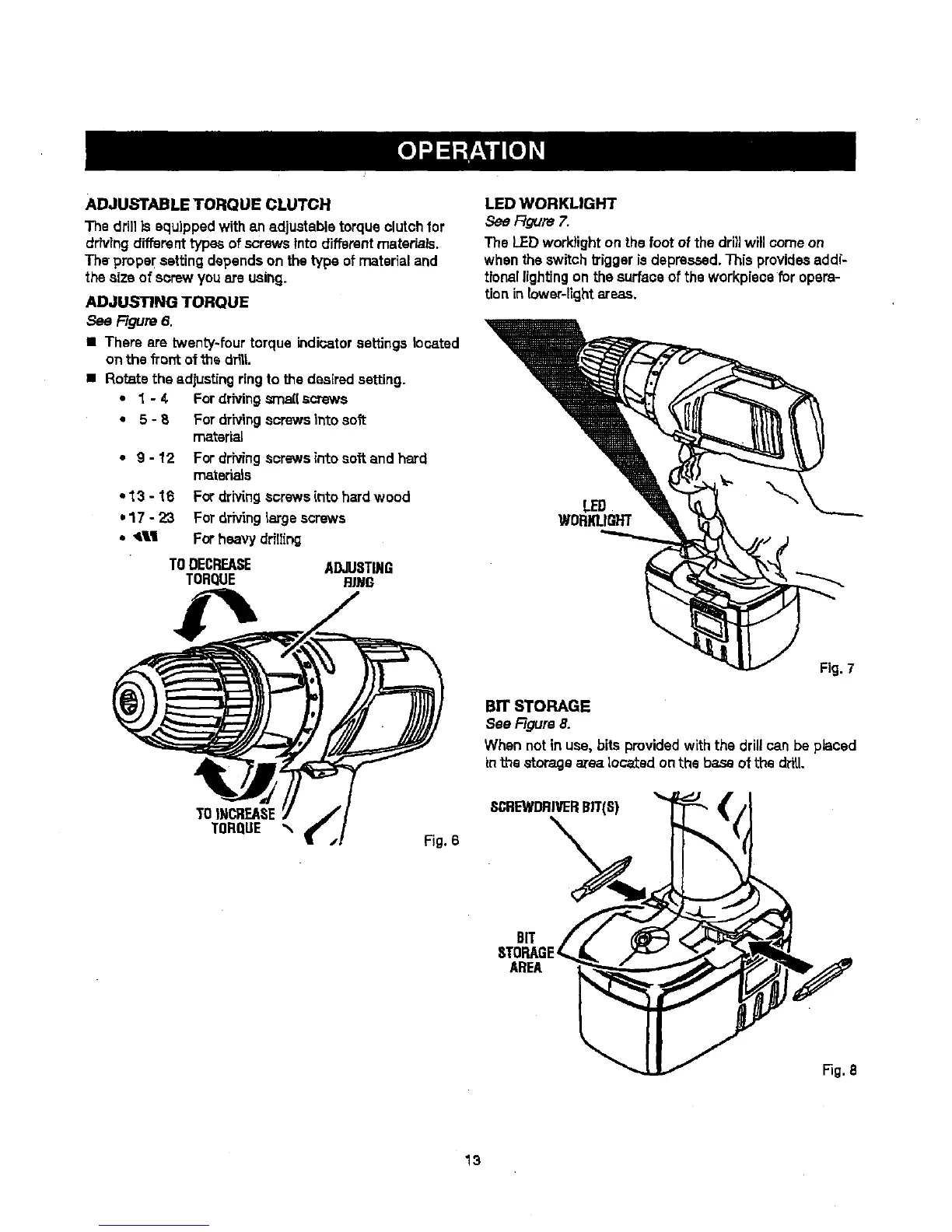

ADJUSTABLE TORQUE CLUTCH
The drillls equipped with an adjustable torqueclutchfor
drivingdifferenttypes of screwsinto differentmaterials.
The propersetting dependson the type ofmaterial and
the size of sorewyouare using.
ADJUSTING TORQUE
See Ftgure6.
• There are Lwenty-fourtorque indicatorsettings located
on the _TO_ofthe drill.
• Rotate the adjusting ringto the desiredsetting.
• 1 - 4 Fordrivingsmed[screws
• 5 - 8 Fordrivingscrewsinto soft
materia_
• g - 12 For ddving screws into softand hard
materials
• 13 - 16 For drivingscrews into hardwood
=17 - 23 Fordriving large screws
• 4U Forheavy drifting
TODECREASE ADJUSTING
TORQUE R/NO
LED WORKLIGHT
See F/gum 7.
The LEDworkJighton the foot of the drillwill come on
when theswitch _'igger iedepressed.This providesaddi-
tional lightingon the surfaceof the workpieoefor opera-
Lionin lower-lightareas.
LED
WORKLIGHT
Fig. 7
Bff STORAGE
See Figure 8.
When not in use, bits providedwith the drill can be placed
int_e storage area located on the base of the driU.
TOIXCREASE
TORQUE _,
Fig. 6
SCREWDRIVERBIT(S)
\
BIT
AREA
