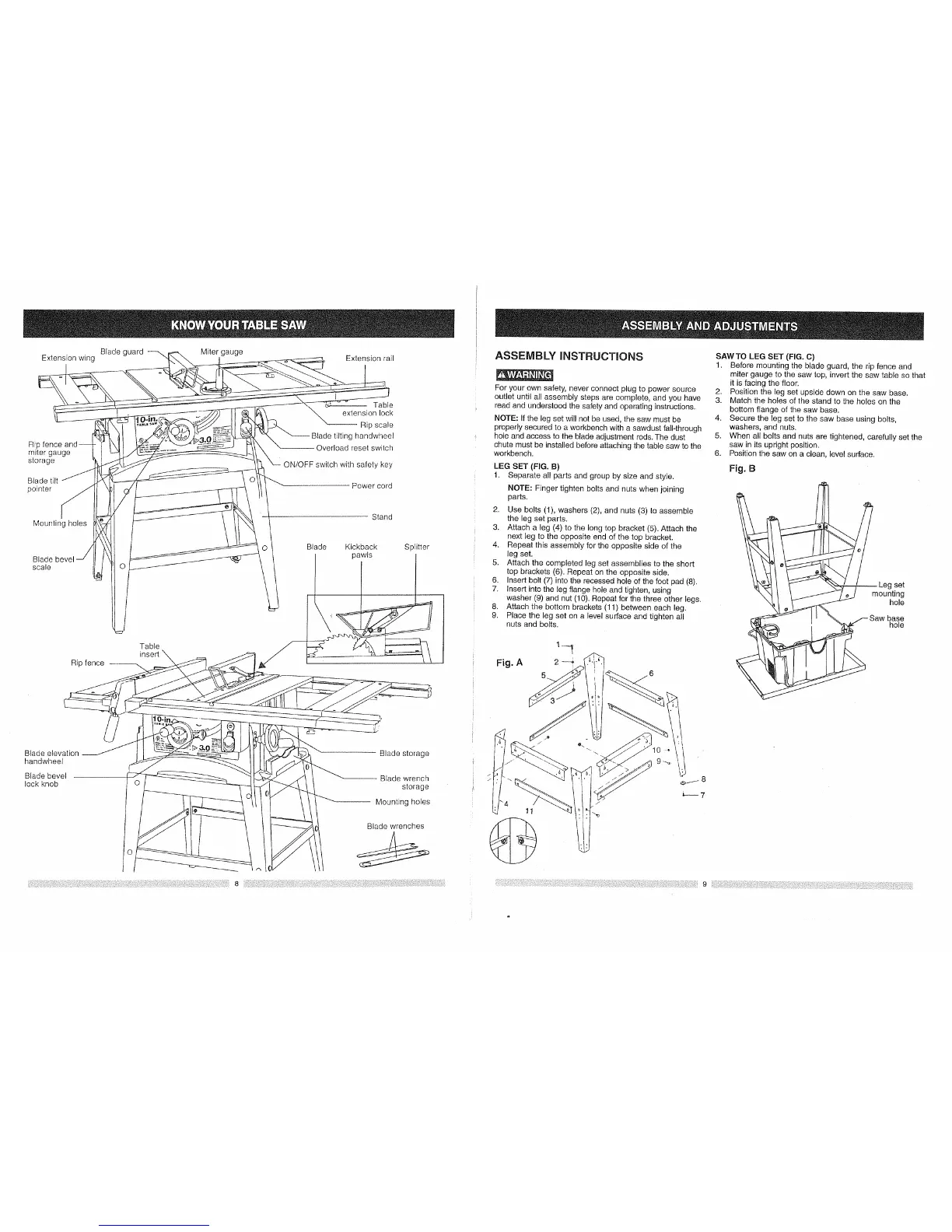

Craftsman 137.228010 - Know Your Table Saw; Assembly and Adjustments; Assembly Instructions; Leg Set Assembly

Extensionwing
Ripfence
mitergauge
storage
Bladetilt
pointer
Mounlingholes
Blade
scale
Ripfence--
Bladeguard
Table
insert
Milergauge
Extensionrail
!
Table
extensionlock
Ripscale
Bladetiltinghandwheel
Overloadresetswitch
ON/OFFswitchwithsafetykey
Powercord
Stand
Blade Kickback
pawls
Splitter
ASSEMBLY JNSTRUCTUONS
,
7.
i
i 8.
9.
For your own safety, never connect plug to power source
outlet until all assembly steps are complete, and you have
read and understood the safety and operating instructions.
NOTE: If the leg set will not be used, the saw must be
properly secured to a workbench with a sawdust fall-through
hole and access to the blade adjustment rods. The dust
chute must be installed before attaching the table saw to the
workbench.
LEG SET (FIG. B)
1. Separate al! parts and group by size and style.
NOTE: Finger tighten bolts and nuts when joining
parts.
2. Use bolts (1), washers (2), and nuts (3) to assemble
the leg set parts.
3. Attach a leg (4) to the long top bracket (5). Attach the
next leg to the opposite end of the top bracket.
4. Repeat this assembly for the opposite side of the
leg set.
5. Attach the completed leg set assemblies to the short
top brackets (6). Repeat on the opposite side.
Insert bolt (7) into the recessed hole of the foot pad (8).
Insert into the leg flange hole and tighten, using
washer (9) and nut (10). Repeat for the three other legs.
Attach the bottom brackets (11) between each leg.
Place the leg set on a level surface and tighten all
nuts and bolts.
Fig. A 2
SAW TO LEG SET (FIG. C)
1. Before mounting the blade guard, the rip fence and
miter gauge to the saw top, invert the saw table so that
it is facing the floor.
2. Position the leg set upside down on the saw base.
3. Match the holes of the stand to the holes on the
bottom flange of the saw base.
4. Secure the leg set to the saw base using bolts,
washers, and nuts.
5. When all bolts and nuts are tightened, carefully set the
saw in its upright position.
6. Position the saw on a clean, level surface.
Fig. 8
set
mounting
hole
base
hole
Blade elevation
handwhee!
Blade bevel
lock knob
Blade storage
-- BEade wrench
storage
Mounting holes
Blade wrenches
?
11
