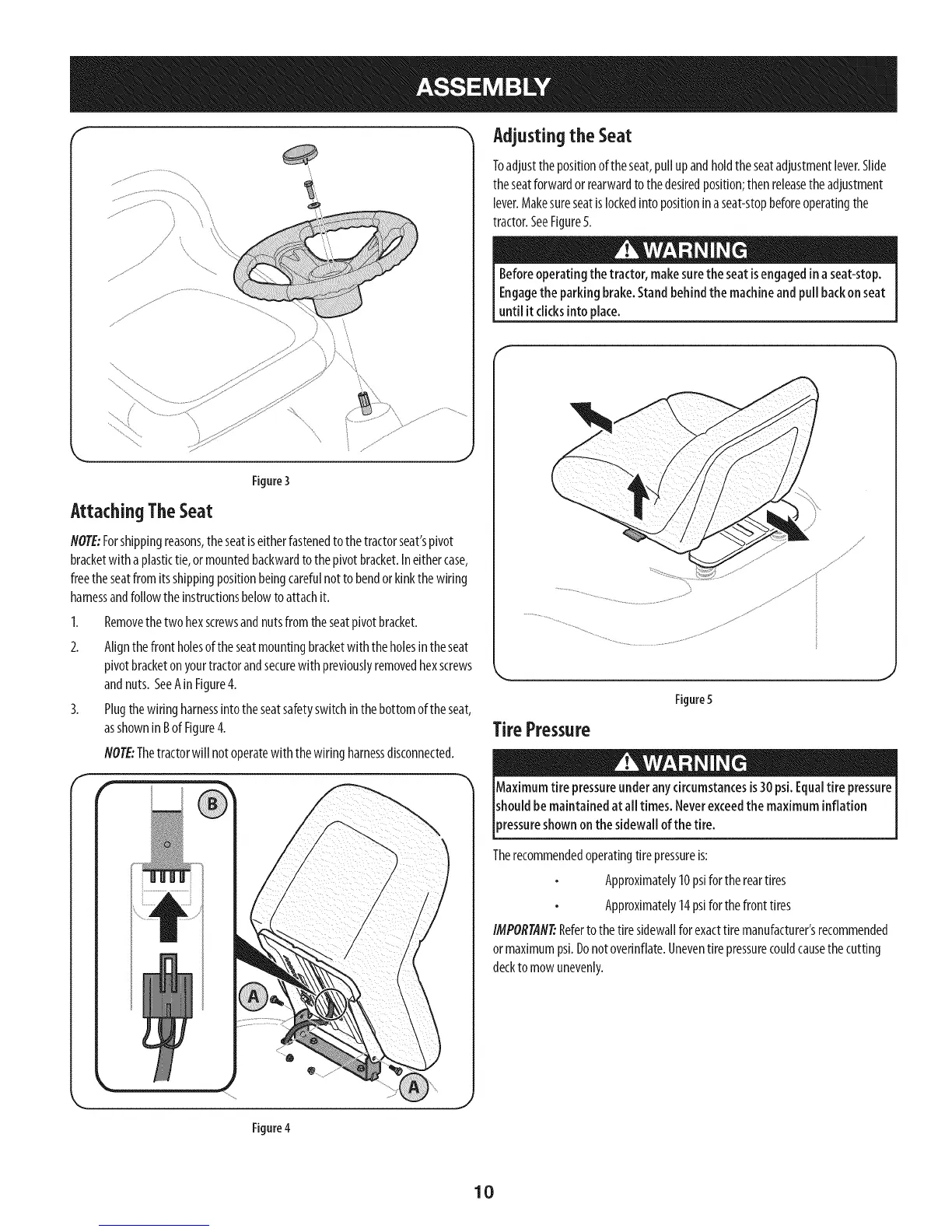

Craftsman 247.203721 - Attaching the Seat; Adjusting the Seat; Tire Pressure

F
\
Figure3
AttachingTheSeat
NOTE:Forshippingreasons,theseatiseitherfastenedtothetractorseat'spivot
bracketwith a plastictie,ormountedbackwardtothepivotbracket.Ineithercase,
freetheseatfromitsshippingpositionbeingcarefulnotto bendorkinkthewiring
harnessandfollowtheinstructionsbelowtoattachit.
1. Removethetwo hexscrewsandnutsfromtheseatpivotbracket.
2. Alignthefront holesoftheseatmountingbracketwith theholesintheseat
pivotbracketonyourtractorandsecurewith previouslyremovedhexscrews
andnuts. SeeAinFigure4.
3. Plugthewiringharnessintotheseatsafetyswitchinthebottomoftheseat,
asshownin Bof Figure4.
flO?E:Thetractorwill notoperatewiththewiringharnessdisconnected.
Adjustingthe Seat
Toadjustthepositionof theseat,pull upandholdtheseatadjustmentlever.Slide
theseatforwardorrearwardto thedesiredposition;thenreleasetheadjustment
lever.Makesureseatislockedintopositioninaseat-stopbeforeoperatingthe
tractor.SeeFigure5.
Beforeoperatingthe tractor, makesurethe seatisengagedina seat-stop.
Engagethe parkingbrake.Standbehindthe machineand pull backon seat
until itclicksintoplace.
Figure5
TirePressure
Maximumtire pressureunder anycircumstancesis30psi.Equaltire pressure
shouldbe maintainedat all times. Neverexceedthe maximum inflation
)ressureshownonthe sidewallofthe tire.
Therecommendedoperatingtirepressureis:
Approximately10psiforthereartires
Approximately14psiforthefronttires
IMPORTANT:Referto thetiresidewallforexacttire manufacturer'srecommended
ormaximumpsi.Donotoverinflate.Uneventirepressurecouldcausethecutting
decktomowunevenly.
Figure4
10
