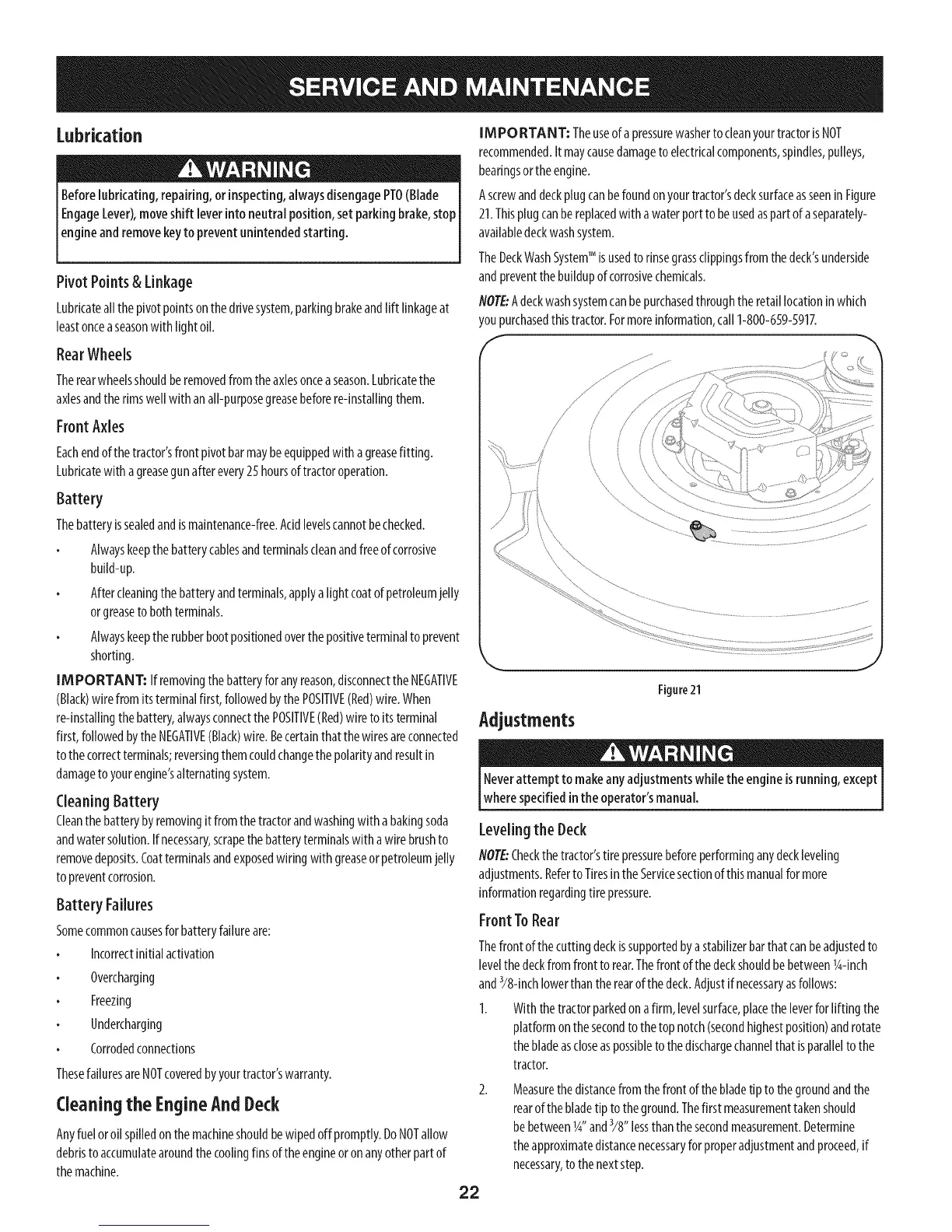

Lubrication
Beforelubricating,repairing,orinspecting,alwaysdisengagePTO(Blade I
EngageLever),moveshift leverintoneutral position,set parkingbrake,stopI
eng neandremovekeytopreventun ntendedstart ng. |
l
Pivot Points& Linkage
Lubricateallthepivotpointsonthedrivesystem,parkingbrakeandlift linkageat
leastonceaseasonwith lightoil.
RearWheels
Therearwheelsshouldberemovedfromtheaxlesonceaseason.Lubricatethe
axlesandtherimswellwith anall-purposegreasebeforere-installingthem.
Front Axles
Eachendofthetractor'sfrontpivotbarmaybeequippedwith agreasefitting.
Lubricatewith agreasegunafterevery25hoursoftractoroperation.
Battery
Thebatteryissealedandis maintenance-free.Acidlevelscannotbechecked.
Alwayskeepthebatterycablesandterminalscleanandfreeof corrosive
build-up.
Aftercleaningthe batteryandterminals,applya lightcoatofpetroleumjelly
orgreasetobothterminals.
Alwayskeeptherubberbootpositionedoverthe positiveterminaltoprevent
shorting.
IM PORTANT: Ifremovingthebatteryforanyreason,disconnecttheNEGATIVE
(Black)wirefromitsterminalfirst,followedbythePOSITIVE(Red)wire.When
re-installingthebattery,alwaysconnectthe POSITIVE(Red)wireto itsterminal
first,followedbytheNEGATIVE(Black)wire.Becertainthatthewiresareconnected
tothecorrectterminals;reversingthemcouldchangethe polarityandresultin
damageto yourengine'salternatingsystem.
CleaningBattery
Cleanthebatterybyremovingit fromthetractorandwashingwith a bakingsoda
andwatersolution.Ifnecessary,scrapethebatteryterminalswitha wirebrushto
removedeposits.Coatterminalsandexposedwiringwith greaseorpetroleumjelly
topreventcorrosion.
Battery Failures
Somecommoncausesforbatteryfailureare:
Incorrectinitialactivation
Overcharging
Freezing
Undercharging
Corrodedconnections
ThesefailuresareNOTcoveredbyyourtractor'swarranty.
Cleaningthe EngineAndDeck
Anyfueloroilspilledonthemachineshouldbewipedoffpromptly.DoNOTallow
debristo accumulatearoundthecoolingfinsof theengineoronanyotherpartof
themachine.
IMPORTANT: Theuseofa pressurewashertocleanyourtractorisNOT
recommended.It maycausedamageto electricalcomponents,spindles,pulleys,
bearingsortheengine.
Ascrewanddeckplugcanbefoundonyourtractor'sdecksurfaceasseeninFigure
21.Thisplugcanbereplacedwith awaterporttobeusedaspartofaseparately-
availabledeckwashsystem.
TheDeckWashSystemTM isusedto rinsegrassclippingsfromthedeck'sunderside
andpreventthebuildupofcorrosivechemicals.
NOTE:Adeckwashsystemcanbepurchasedthroughthe retaillocationinwhich
youpurchasedthistractor.Formoreinformation,call1-800-659-5917.
f-
/
Adjustments
Figure21
J
Neverattempt to makeanyadjustmentswhile the engineisrunning,except
wherespecifiedinthe operator'smanual.
Levelingthe Deck
NOTE:Checkthetractor'stirepressurebeforeperforminganydeckleveling
adjustments.RefertoTiresintheServicesectionofthismanualformore
informationregardingtirepressure.
FrontToRear
Thefrontof thecuttingdeckissupportedbyastabilizerbarthat canbeadjustedto
levelthedeckfromfrontto rear.Thefrontofthedeckshouldbebetween1g-inch
and3/8-inchlowerthantherearofthedeck.Adjustif necessaryasfollows:
1. Withthetractorparkedonafirm, levelsurface,placetheleverfor liftingthe
platformonthesecondto thetopnotch(secondhighestposition)androtate
thebladeascloseaspossibleto thedischargechannelthatisparalleltothe
tractor.
Measurethedistancefromthefrontofthebladetip tothegroundandthe
rearofthebladetip totheground.Thefirst measurementtakenshould
bebetweenlg"and3/8"lessthanthesecondmeasurement.Determine
theapproximatedistancenecessaryforproperadjustmentandproceed,if
necessary,to thenextstep.
22
