KNOWYOURTRACTOR
READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING
YOUR TRACTOR

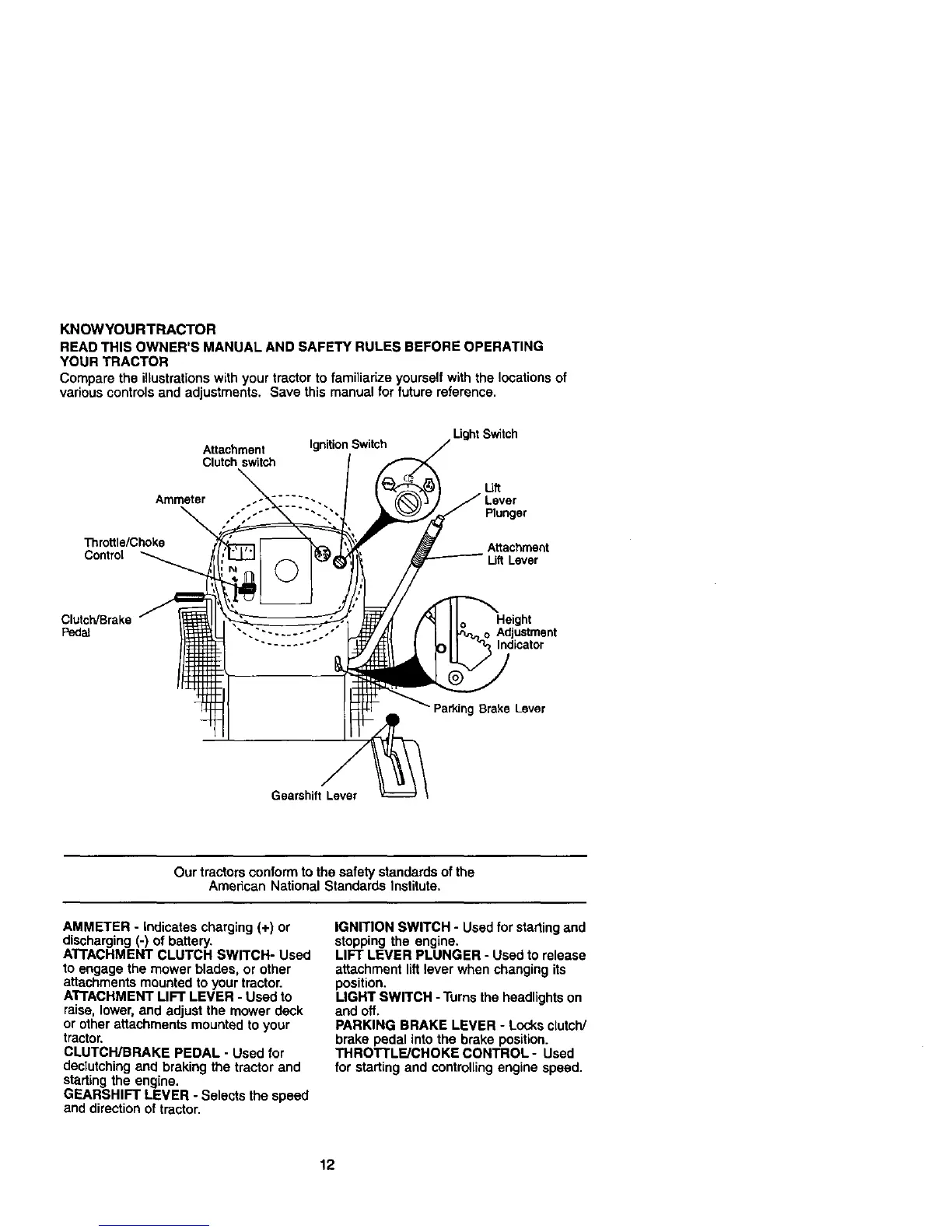

Compare the illustrationswith your tractor to familiarize yourself with the locations of
various controls and adjustments. Save this manual for future reference,
Attachment Ignition Switch
Clutch switch
Ammeter ..... -.
Throttle/Choke
Contml
Ught Switch
U_
Lever
Plunger
Attachment
LiR Lever
Clutch/Brake
Psdai
Height
Adjustment
, Indicator
Parking Brake Lever
Gearshift Lever
Our tractorsconform to the safety standards of the
American National Standards Institute.
AMMETER - Indicates charging (+) or
discharging (-) of battery.
A'FFACHMENT CLUTCH SWITCH- Used
to engage the mower blades, or other
attachments mounted to your tractor.
A'I'FACHMENT LIFT LEVER - Used to
raise, lower, and adjust the mower deck
or other attachments mounted to your
tractor.
CLUTCH/BRAKE PEDAL - Used for
declutching and braking the tractor and
starting the engine.
GEARSHIFT LEVER - Selects the speed
and direction of tractor.
IGNITION SWITCH - Used for startingand
stopping the engine.
LIFT LEVER PLUNGER - Used to release
attachment lift lever when changing its
position.
LIGHT SWITCH - Turns the headlightson
and off.
PARKING BRAKE LEVER - Locks clutch/
brake pedal intothe brake position.
THROTTLF_JCHOKE CONTROL- Used
for starting and controllingengine speed.
12
