Craftsman 272 - Lift Assembly

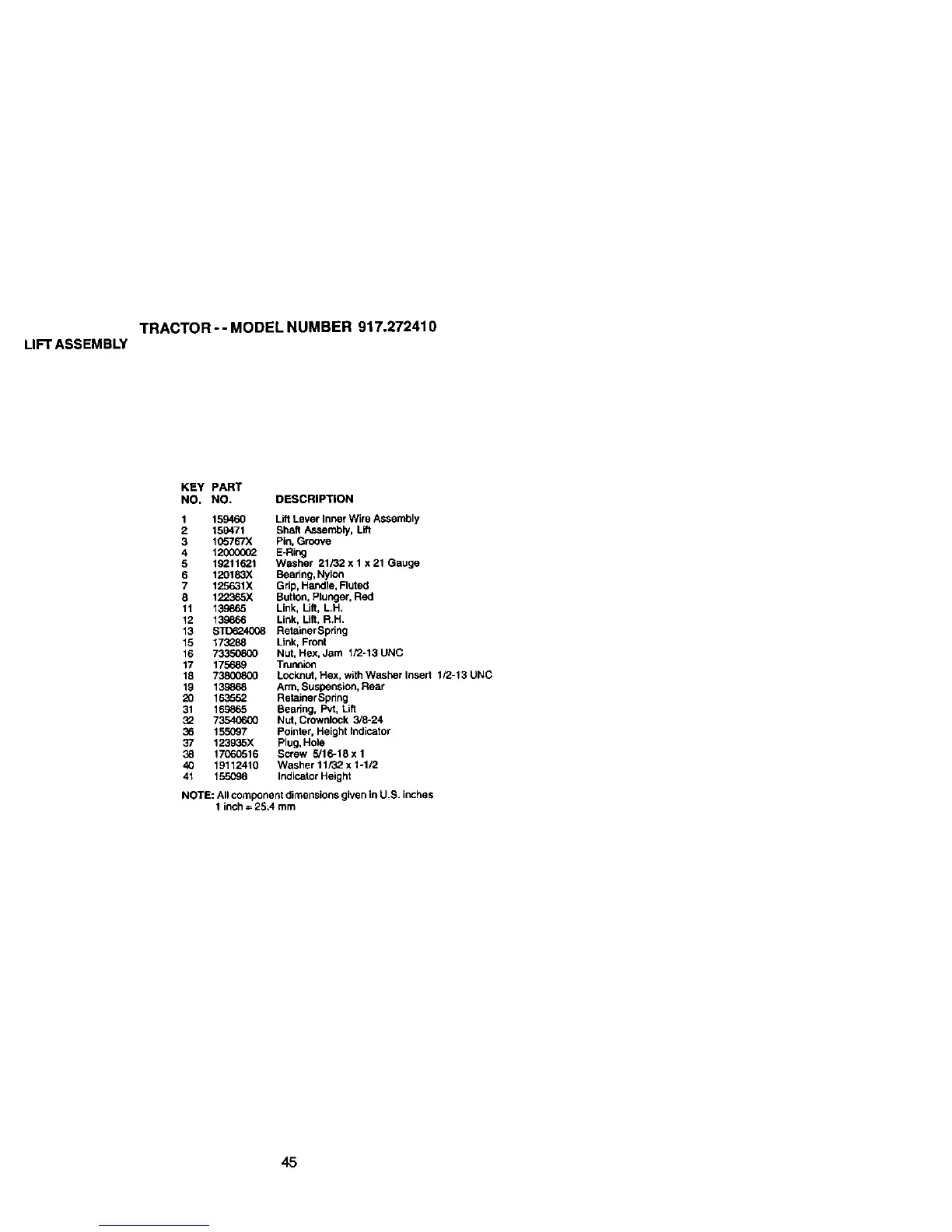

TRACTOR-- MODEL NUMBER 917.272410
LIFTASSEMBLY
KEY PART
NO. NO. DESCRIPTION
1
2
3
4
5
6
7
8
11
12
13
15
16
17
18
19
2O
31
32
36
37
38
40
41
159460 Lift Lever Inner Wire Assembly
159471 Shaft Assembly, Lift
105767X Pin, Groove
12000(X_ E-Ring
19211621 Washer 21/32 x 1 x21 Gauge
12O183X Beadng, Nylon
125631X Grip, H_xlle, Fluted
122365X Button, Plunger, Red
13_65 Link, Uft, L,H.
139666 Link, Lift, R.H.
S_4008 Retainer Spring
173288 Link, Front
733508(_ Nut, Hex, Jam 1/2o13 UHC
175689 Trunnion
73800800 Locknut, Hex, with Washer Insert 1/2-13 UNC
139868 Arm, Suspension, Rear
163552 Retainer Spheg
169865 Bearing, Pv4 Lift
73540600 Nut, Crownlock 3/8-24
155097 Pointer, Height Indicator
123935X Plug, Hole
17060516 Screw 5/16-18 x 1
19112410 Washer 11/32 x 1-1/2
155098 Indicator Height
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
45
