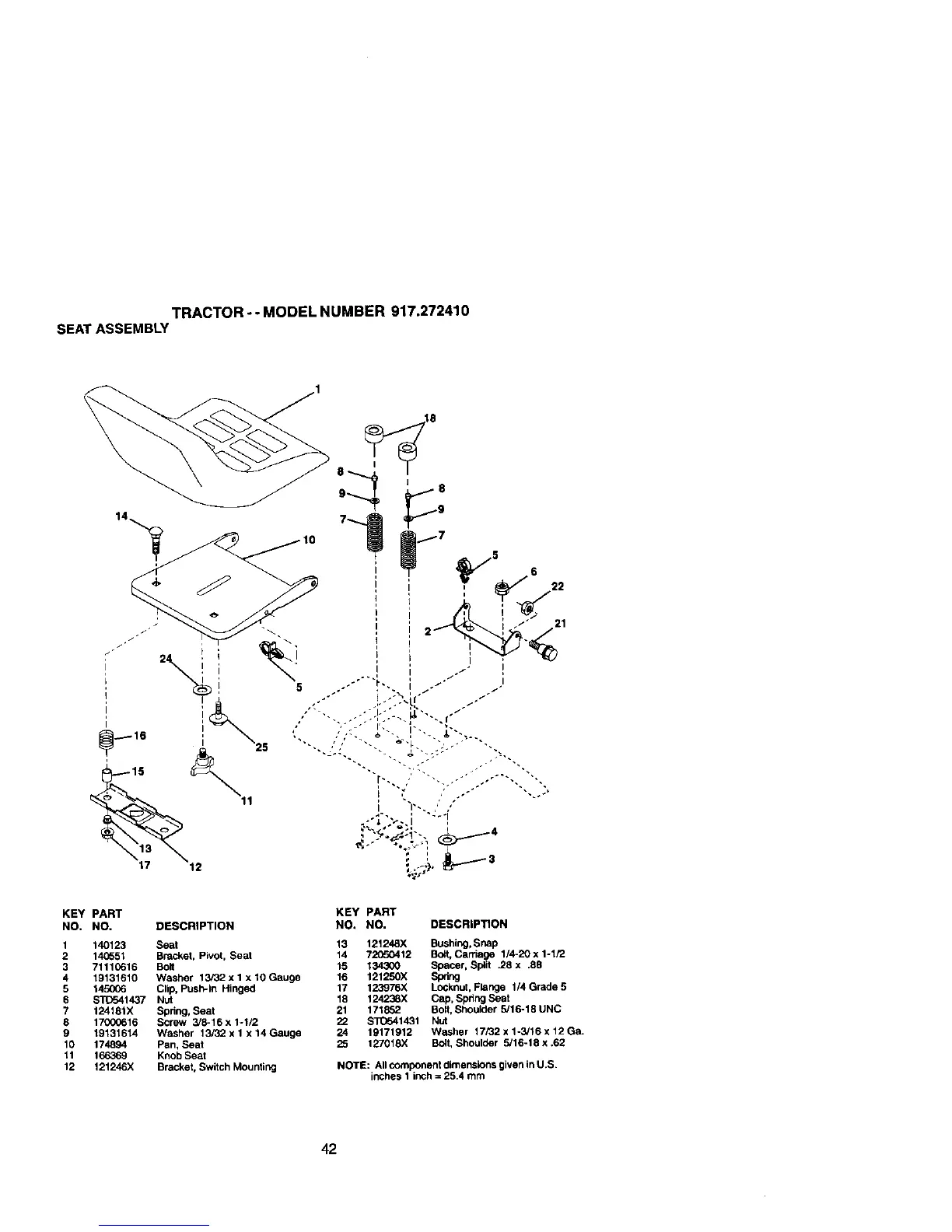

TRACTOR-- MODEL NUMBER 917.272410
SEATASSEMBLY
KEY PART
NO, NO, DESCRIPTION
1 140123 Se_t
2 1405.51 Bracket, Pivot, Seat
3 71110616 Bolt
4 Ig'_3*r6"rg Washer 13/32 x I x 10 Gauge
5 145006 Clip, Push-in Hinged
6 ST[:_41437 Nut
7 124181X Spdng, Seat
8 17000616 Screw 3/8-16 x 1ol/2
9 "_g13_614 Washer f3/32 x / x 14 Gauge
10 174894 Pan, Seat
11 166369 Knob Seat
12 121246X Bracket, Switch Mounting
KEY PART
NO. NO. DESCRIP_ON
13 121248X Bushing, Snap
14 72(T_0412 BOll, Carriage 1/4-20 x 1-1/2
15 134300 Spacer, Split ,28 x .88
16 121250X Spdng
17 123976X Locknut, Flange 114 Grade 5
18 124238X Cap, Spring Seat
21 171852 Bolt, Shoulder 5/16-18 UNC
22 S]O541431 Nut
24 19f7fg12 Washer f7/22 x 1-3/16 x 12 Ga.
25 127018X Bo4t,Shoulder 5/16-18 x .62
NOTE: All component dimensions given in U.S.
inches 1 inch = 25.4 mm
42
