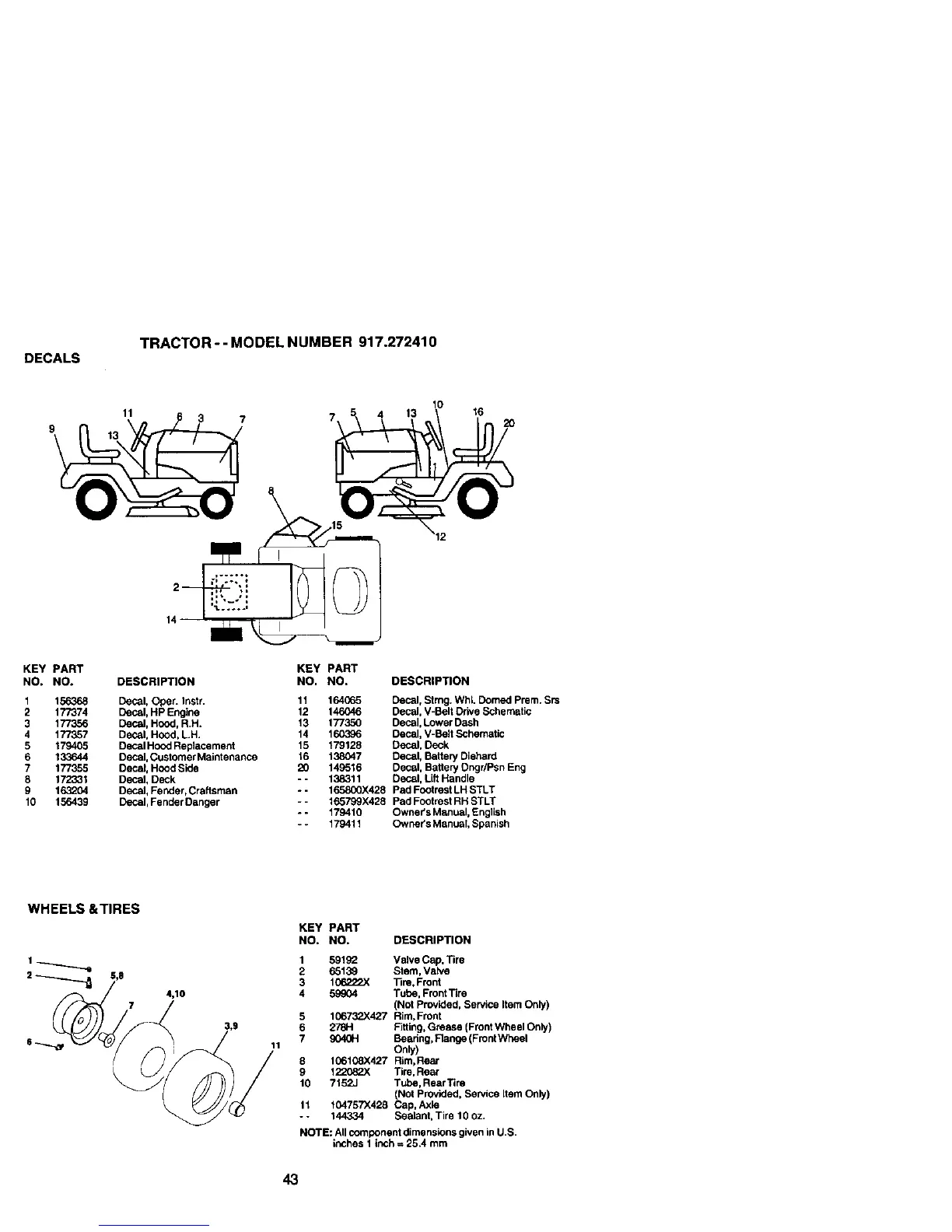

Craftsman 272 - DECALS; WHEELS & TIRES

DECALS
TRACTOR-- MODEL NUMBER 917.272410
10
9 13 11 3 7 7 4 13 16 20
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
1 156368 Decal, Oper. Instr. 11 164065
2 177374 Decal, HP Engine 12 146046
3 177356 Decal, Hood, RH. 13 177350
4 177357 Decal, Hood, LH. 14 160396
5 179405 Decal Hood Replacement 15 179128
6 133644 Decal. Customer Maintenance 16 138047
7 177355 Decal, Hood Side 20 149516
8 172331 Decal, Deck - - 138311
9 163204 Decal, Fender, Craftsman -- 165800X428
10 156439 Decal, Fender Danger -- 165799)(428
- - 179410
-- 179411
Decal, Sting. WhL Domed Prem, Brs
Decal, V-Belt Drive Schematic
Decal, Lower Dash
Decal, V-Belt Schematic
Decal. Deck
Decal, Battery Diehard
Decal. Battery Dngr/Psn Eng
Decal. LiftHandle
Pad Footrest LH STLT
Pad Footrest RH STLT
Owners Manual. English
Owner's Manual, Spanish
WHEELS &TIRES
4,10
7
KEY PART
NO. NO. DESCRIPTION
1 59192 Valve Cap, Tire
2 65139 Stern, valve
3 106222X 33re,Front
4 59904 Tube, Front Tire
(Not Provided, Service Item Only)
5 106732X427 Rim, Front
6 278H Fitting,Grease (Front Wheel Only)
7 9040H Beadng, Flange (FrontWheel
Only)
8 106108X427 Rim,Rear
9 122082X Tire, Rear
10 7152J Tube, RearTire
(Not Provided, Service Item Only)
11 t04757X428 Cap, Axle
- - 144334 Sealant, Tire 10 oz.
NOTE: All component dimensions given in U.S.
inches I inch -- 25.4 mm
43
