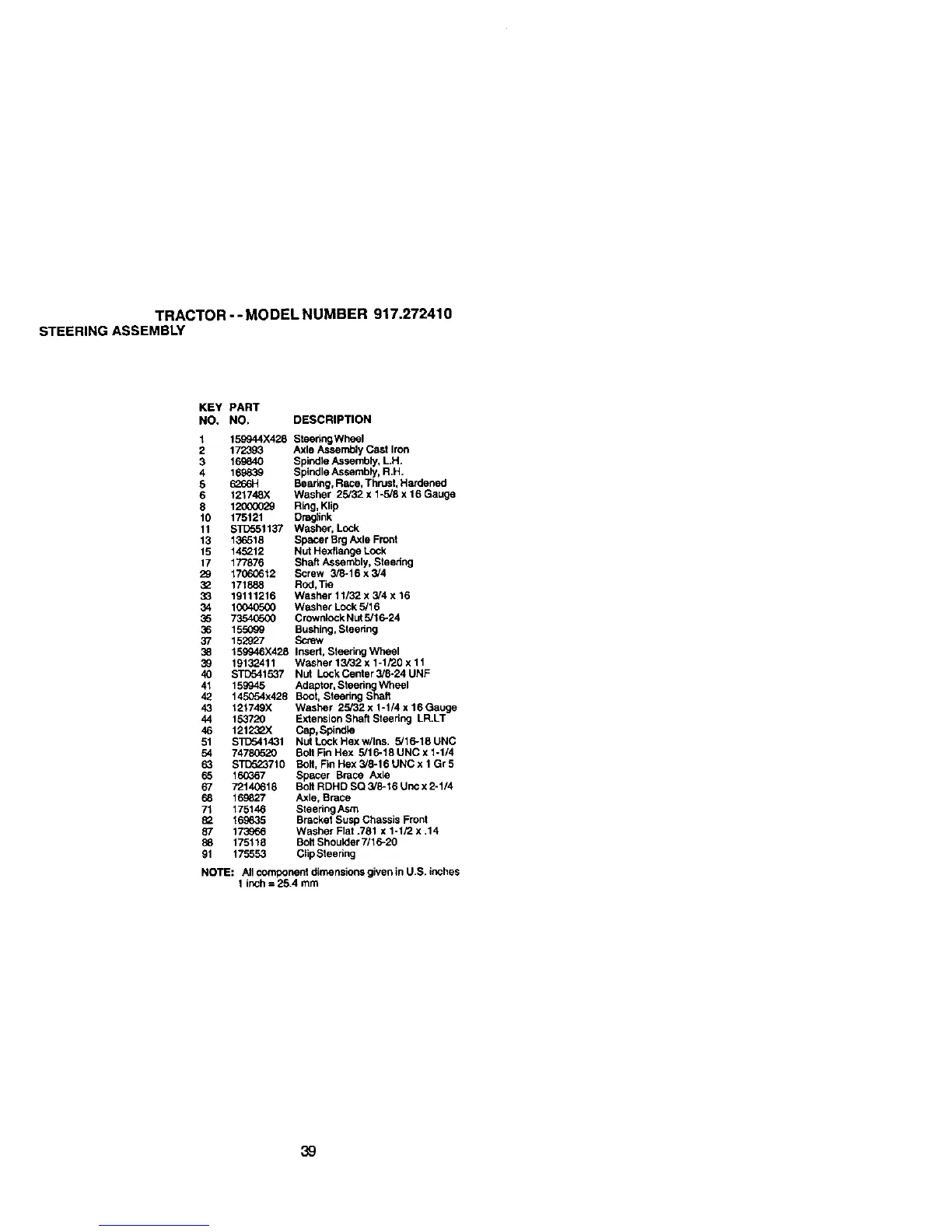

TRACTOR--MODELNUMBER917.272410
STEERINGASSEMBLY
KEY PART
NO. NO. DESCRIPTION
1 159944X428 Steering Wheel
2 172393 Axle Assembly Cast Iron
3 169840 Spindle Assembly, LH.
4 169839 Spindle Assembly, R.H.
5 6266H Bearing, Race, Thrust, Hardened
6 121748)( Washer 25/32 x 1-5/8 x 16 Gauge
8 12000029 Ring, Klip
10 175121 Draglink
11 STD551137 Washer, Lock
13 136518 Spe,cer Brg AXle Front
15 145212 Nut Hexftange Lock
17 177876 Shaft Assembly, Steering
29 17060612 Screw 3/6-16 x 5/4
32 171888 Rod,Tie
33 19111216 Washer 11/32 x 3/4 x 16
34 1004(To00 Washer Lock 5/16
35 73540500 Crownlock NUt 5/16-24
36 155099 Bushing, Steering
37 152927 Screw
38 159946X428 Insert, Steering Wheel
39 19132411 Washer 13/32 x 1-1/20 x 11
40 STD541537 Nut Lock Center 3/8-24 UNF
41 159945 Adaptor, Steedng Wheel
42 145054x428 Boot, Steering Shaft
43 121749X Washer 25/32 x 1-1/4 x 16 Gauge
44 153720 Extension Shaft Steering LR.LT
46 12123P.X Cap,Spindle
51 STD541431 Nut Lock Hex w/Ins. 5/16-18 UNC
54 74780520 Bolt Fin Hex 5/16-18 UNC x 1-1/4
63 STD523710 Bolt, Fin Hex 3/8-16 UNC x 1Gr 5
65 16_67 Spacer Brace Axle
67 7214G618 Bolt RDHD SQ 3/8-16 Unc x 2-1/4
68 169827 Axle, State
71 175146 Steering Asm
16_35 Bracket Susp Chassis Front
87 173966 Washer Flat .781 x 1-1/2 x .14
88 175118 Bolt Shoulder 7/16-20
91 175553 Clip Steering
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
39
