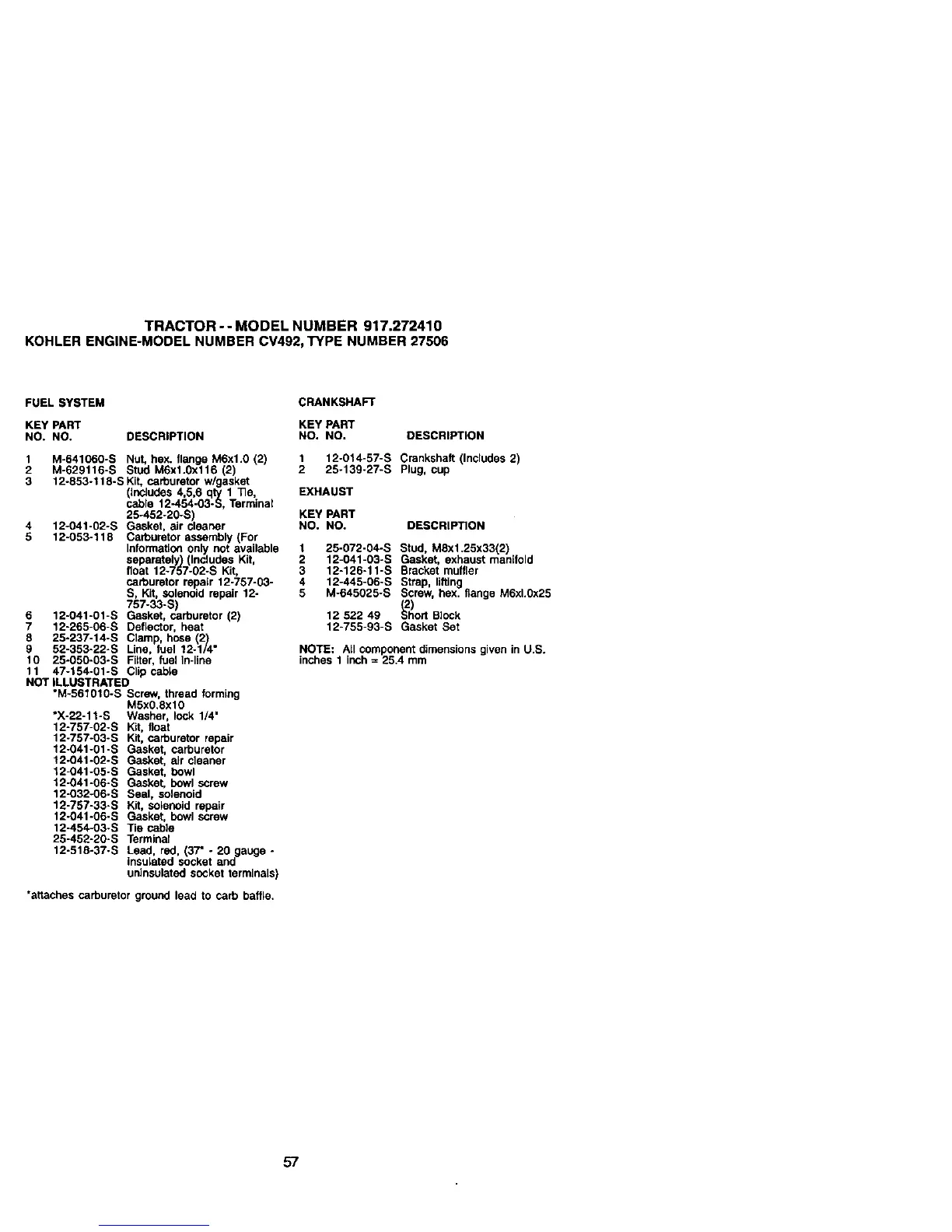

TRACTOR -- MODEL NUMBER 917.272410
KOHLER ENGINE-MODEL NUMBER CV492, TYPE NUMBER 27506
FUEL SYSTEM CRANKSHAFT
KEY PART
NO. NO. DESCRIPTION
1 M-641060-S Nut, hex. flange M6xl.0 (2)
2 M-629116-S Stud M6x1.0x116 (2)
3 12-853-118-S Kit, carburetor w/gasket
(Includes 4,5,6 qty 1 _e,
cable 12-454-03-S, Termina_
25-452-20-S
4 12-041-62-S Gasket, air c eerier
5 12-053-118 Carburetor assembly (For
Informa6o_ only not available
separately) (Includes Kit,
float 12-757-02-S Kit,
carburetor repair 12-757-03-
S, Kit, solenoid repair 12-
757-33-S)
6 12-041-01-S Gasket, carburetor (2)
7 12-265-06-S Deflector, heat
8 25-237-14-S Clamp, hose (2)
9 52-353-22-S Line, fuel 12-1/4"
10 25-050-03-S Filter, fuel in-line
11 47-154-01-S Clip cable
NOT iLLUSTRATED
*M-561010-S Screw. thread forming
M5x0.Sxl0
*X-22-11-S Washer, lock 1/4"
12-757-02-S Kit, float
12-757-03-S Kit,carburetor repair
12-041-01-S Gasket, carburetor
!2-041-02-S Gasket, air cleaner
12-041-05-S Gasket, bowl
12-041-06-S Gasket, bowl screw
12-032-06-S Seal, solenoid
12-757-33-S Kit, solenoidrepair
12-041-06-S Gasket, bowl screw
12-454-03-S Tie cable
25-452-20-S Terminal
12-518-37-S Lead, red, (37" - 20 gauge -
insulated socket and
un]nsulatudsocket terminals)
*attaches carburetor ground lead to carb baffle.
KEY PART
NO. NO. DESCRIPTION
1 12-014-57-S Cmnkshalt (Includes2)
2 25-139-27-S Plug, cup
EXHAUST
KEY PART
NO. NO, DESCRIPTION
1 25-072-04-S Stud, M6x1.25x33(2)
2 12-041-03-S Gasket, exhaust manifold
3 12-126-11-S Bracket muffler
4 12-445-06-S Strap, lifting
5 M-645025-S Screw, hex. flange M6xl.0x25
12 522 49 _ort Block
12-755-93-S Gasket Set
NOTE: All componentdimensionsgiven in U.S.
inches 1 inch= 25.4 mm
57
