Craftsman 580.326310 - Control Panel - Exploded View and Parts List

CRAFTSMAN 6300 Watt AC Generator 580.326310

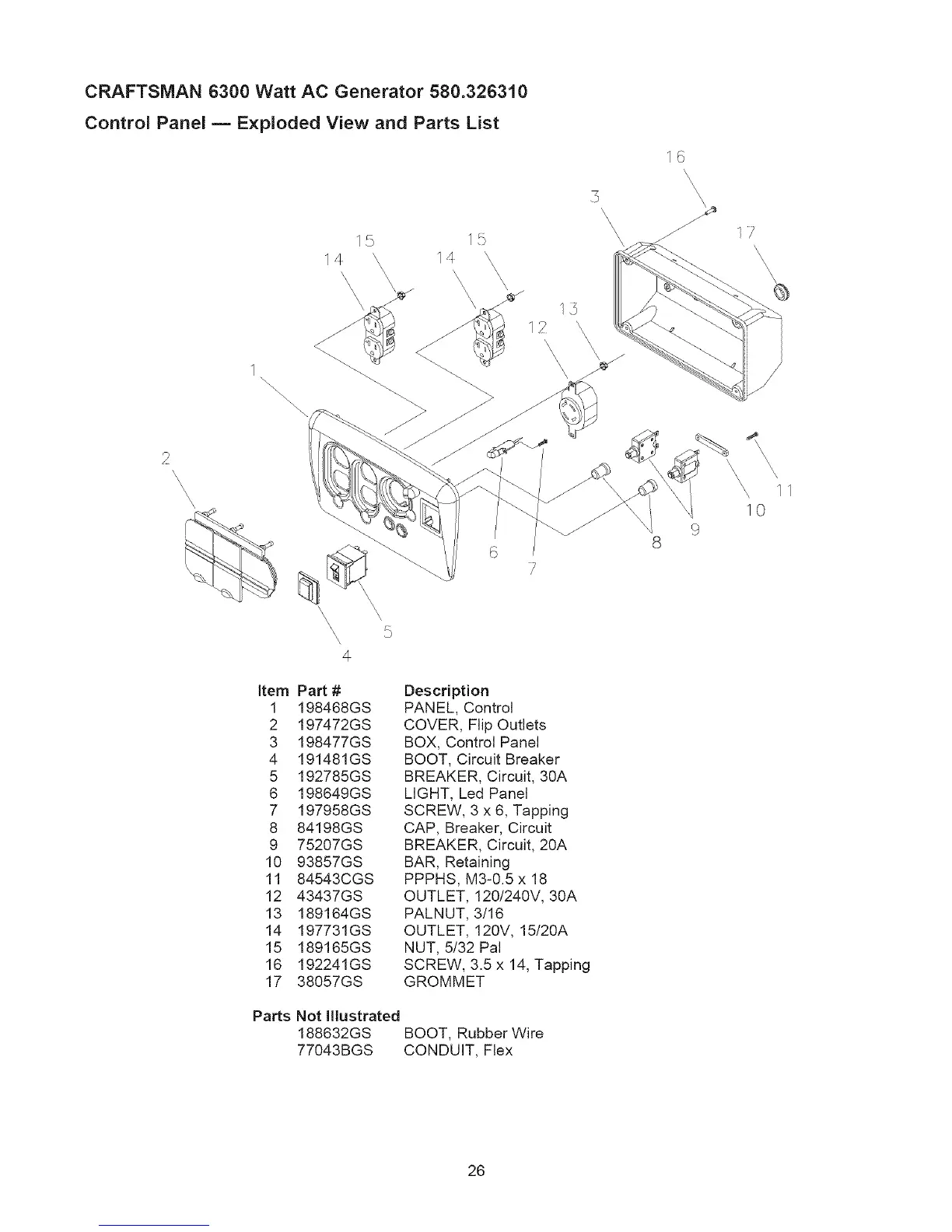

Control Panel m Exploded View and Parts List
2
\
\
\
\
\
\,
1
"\\
\
\
item
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Pa_s
15
14 14
\\ > \\\
5
\
\
\
\
\
\
\
\
\
4
Part #
198468GS
197472GS
198477GS
191481GS
192785GS
198649GS
197958GS
84198GS
75207GS
93857GS
84543CGS
43437GS
189164GS
197731GS
189165GS
192241GS
38057GS
Description
PANEL, Control
COVER, Flip Outlets
BOX, Control Panel
BOOT, Circuit Breaker
BREAKER, Circuit, 30A
LIGHT, Led Panel
SCREW, 3 x 6, Tapping
CAP, Breaker, Circuit
BREAKER, Circuit, 20A
BAR, Retaining
PPPHS, M3-0.5 x 18
OUTLET, 120/240V, 30A
PALNUT, 3/16
OUTLET, 120V, 15/20A
NUT, 5/32 Pal
SCREW, 3.5 x 14, Tapping
GROMMET
Not illustrated
188632GS BOOT, Rubber Wire
77043BGS CONDUIT, Flex
