CRAFTSMAN 6300 Watt AC Generator 580.326310

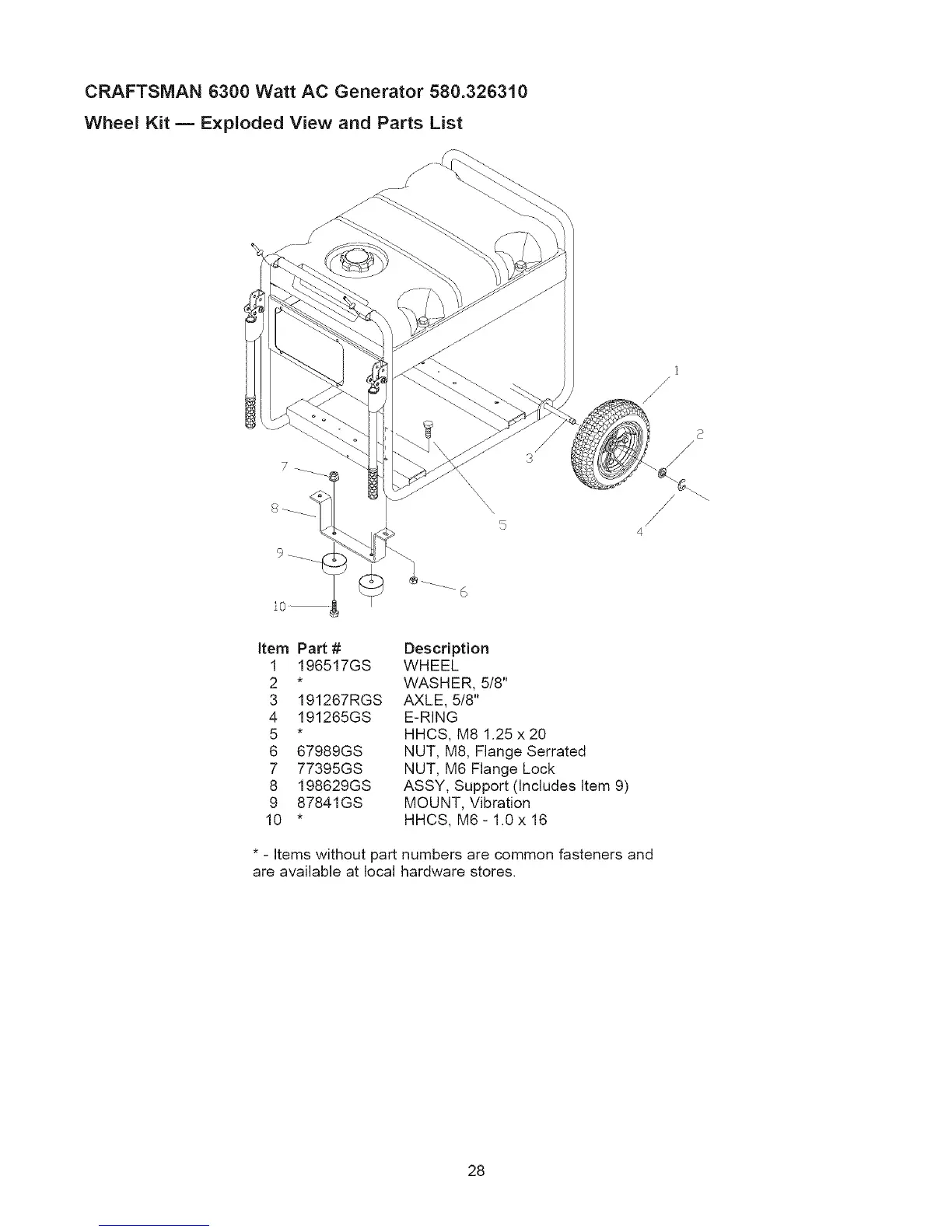

Wheel Kit m Exploded View and Parts List
7
8_
9
5
2
/
/
/
/
/
4
Item Part # Description
1 196517GS WHEEL
2 * WASHER, 5/8"
3 191267RGS AXLE, 5/8"
4 191265GS E-RING
5 * HHCS, M8 1.25 x20
6 67989GS NUT, M8, Flange Serrated
7 77395GS NUT, M6 Flange Lock
8 198629GS ASSY, Support (Includes Item 9)
9 87841GS MOUNT, Vibration
10 * HHCS, M6- 1.0 x 16
* - Items without part numbers are common fasteners and
are available at local hardware stores.
