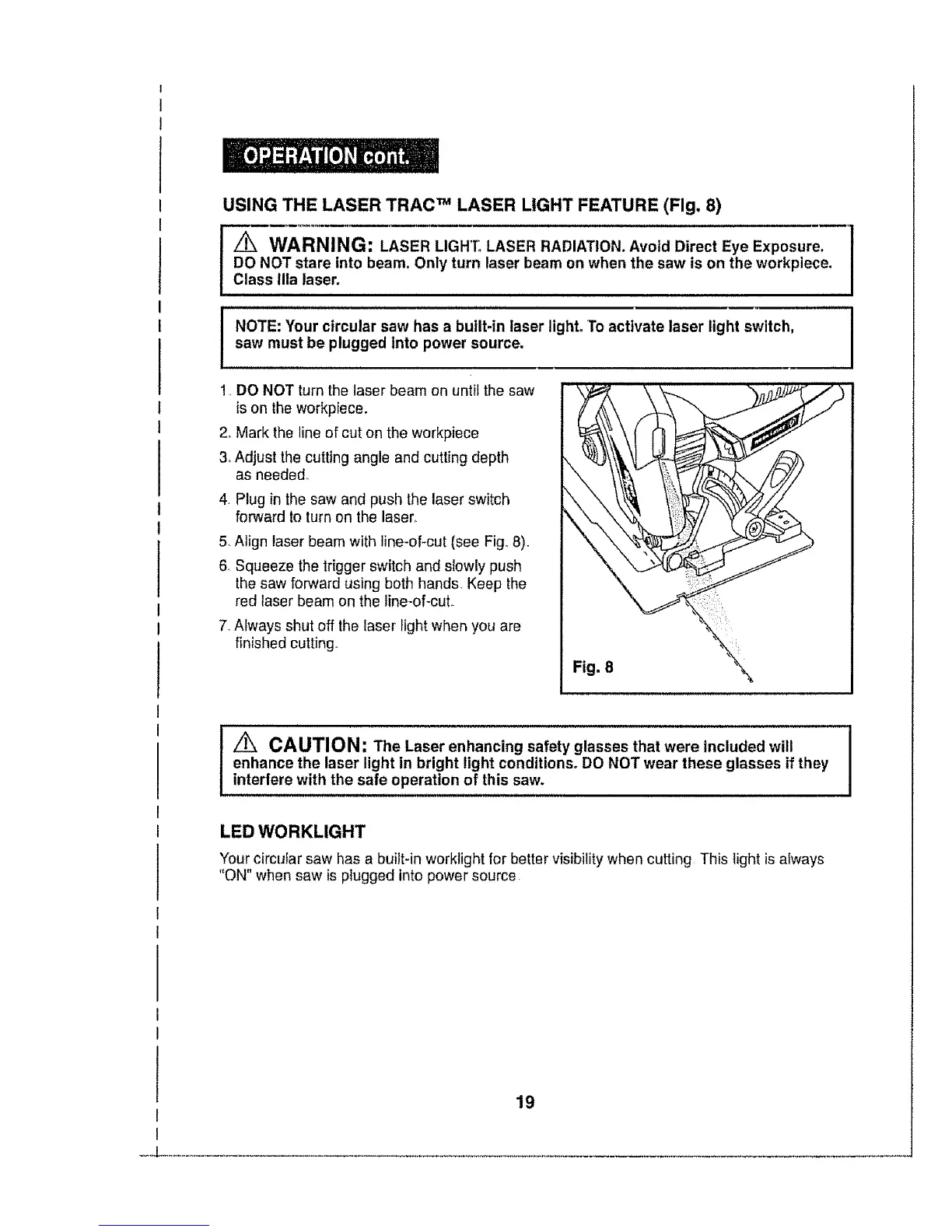

USING THE LASER TRAC TM LASER LIGHT FEATURE (Fig. 8)
WARNING: LASER LIGHT° LASER RADIATION. Avoid Direct Eye Exposure.
DO NOT stare into beam, Only turn laser beam on when the saw is on the workpiece.
Class Ilia laser.
I OTE: Your circular saw has a built-in laser light° To activate laser light switch,
saw must be plugged into power source.
1, DO NOT turn the laser beam on until the saw
is on the workpiece.
2_Mark the line of cut on the workpiece
3, Adjust the cutting angle and cutting depth
as needed
4, Plug in the saw and push the laser switch
forward to turn on the lasen
5, Align laser beam with line-of-cut (see Fig_8).
6. Squeeze the triggerswitch and slowly push
the saw forward using both hands. Keep the
red laser beam on the line-of-cut.
7,Always shut off the laser light when you are
finished cutting.
Fig. 8
CAUTION: The Laser enhancing safety glasses that were included will I
I
enhance the laser light in bright light conditions. DO NOT wear these glasses if they
I
interfere with the safe operation of this saw.
LED WORKLIGHT
Your circular saw has a built-in worktight for better visibility when cutting This light is always
"ON" when saw is plugged into power source
19
