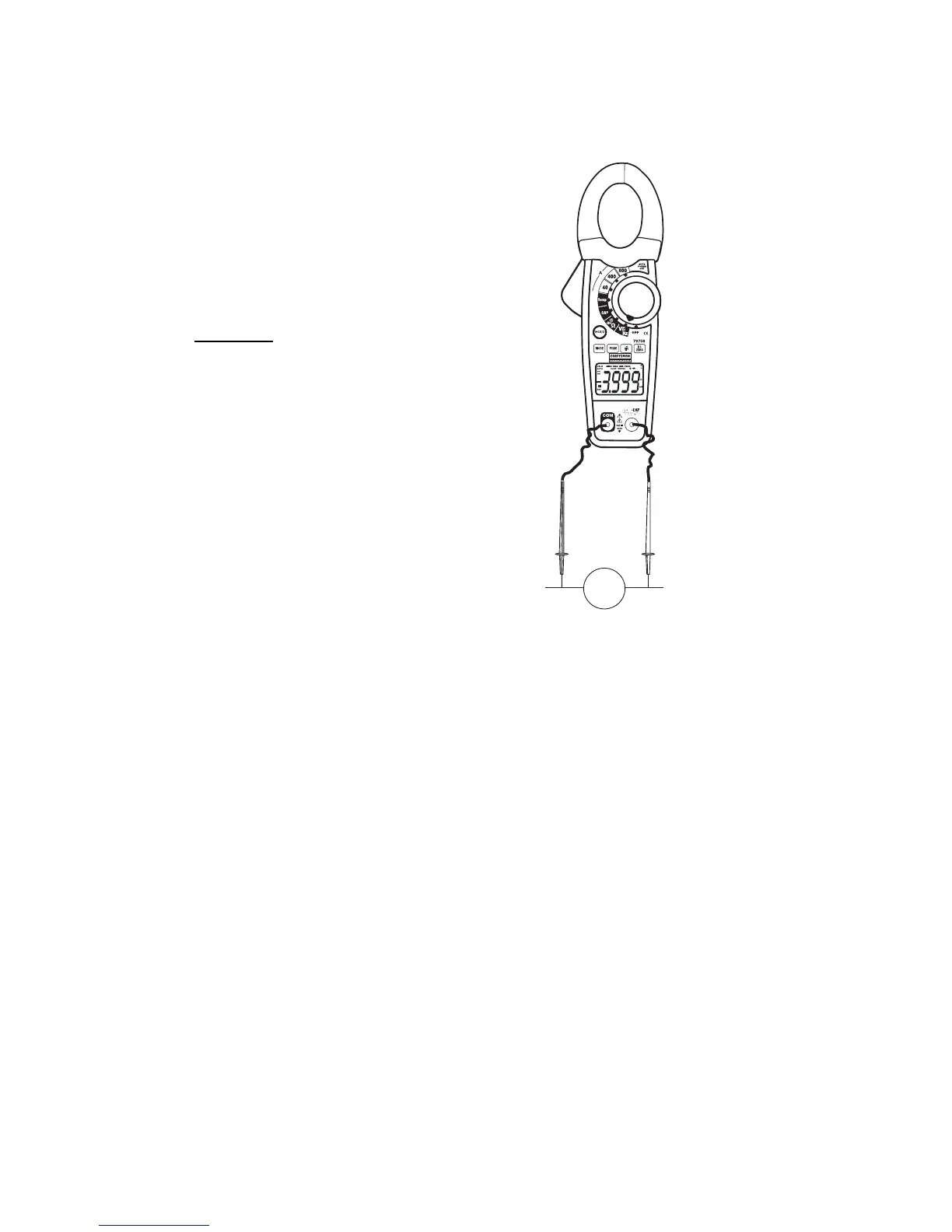

FREQUENCY MEASUREMENTS
1. Insert the black test lead banana plug into
the negative COM jack and the red test
lead banana plug into the
V··CAP·TEMP·Hz· positive jack.
2. Set the function switch to the V Hz
Position.
3. Press and hold
the MODE button to select
the Frequency (Hz) function. “k Hz” will
appear in the display.
4. Touch the test probe tips across the part
under test.
5. Read the Frequency value on the display.
6. The display will indicate the proper
decimal point and value.
7. Press and hold the MODE button again to
return to the voltage mode.
