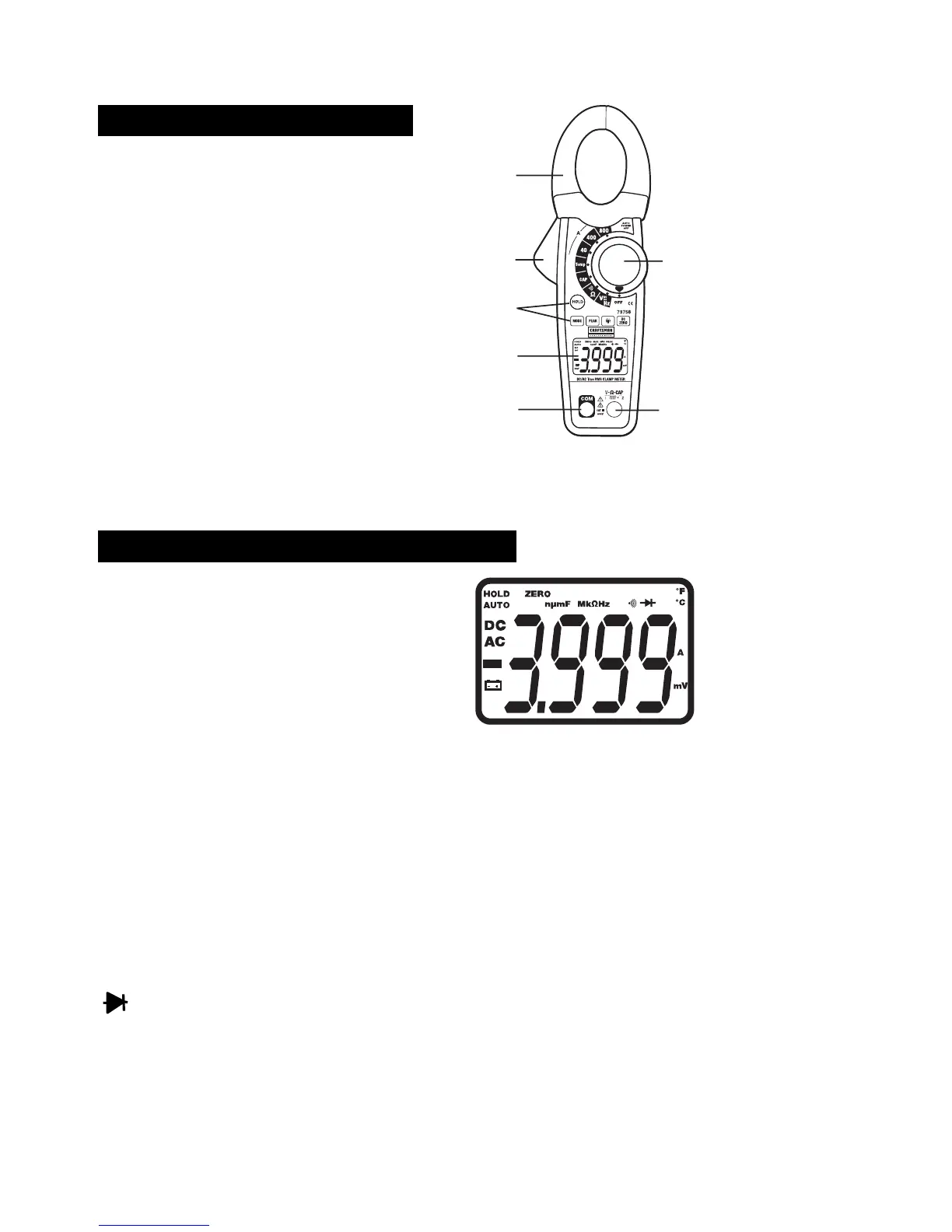

CONTROLS AND JACKS
1. Current clamp
2. Clamp opening trigger
3. Control buttons:
• Data Hold
• Mode
• Peak
• Backlight
• DCA Zero
4. Backlit LCD Display
5. COM negative input jack for black test lead
6. Rotary function switch
7. V••CAP•TEMP•HZ• positive input jack for red lead
SYMBOLS AND ANNUNCIATORS
HOLD Data Hold
Minus Sign Negative reading display
0 to 3999 Measurement display digits
DC ZERO DCA Zero
P
MAX PMIN Peak capture
AUTO Auto Range mode
DC/AC Direct Current/Alternating Current
BAT Low battery
mV or V Milli-volts or Volts (Voltage)
 Ohms (Resistance)
A Amperes (Current)
F Farad (Capacitance)
Hz Hertz (Frequency)
o
F and
o
C Fahrenheit and Celsius units (Temperature)
n,m,µ,M,k Unit of measure prefixes: nano,milli,micro,mega,& kilo
•))) Continuity
Diode test
