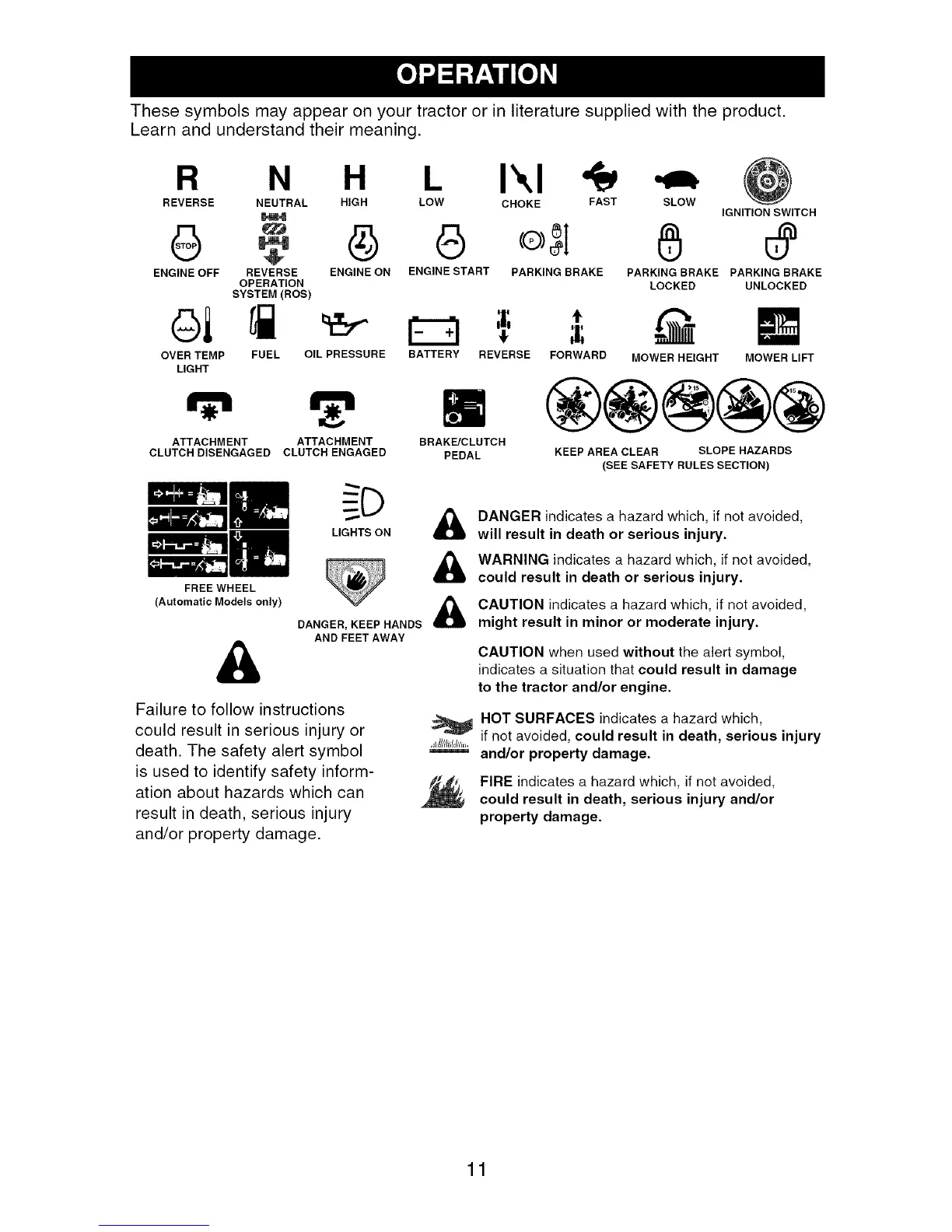

These symbols may appear on your tractor or in literature supplied with the product.
Learn and understand their meaning.
R N H L I'-,I
REVERSE NEUTRAL HIGH LOW CHOKE FAST
ENGINE OFF REVERSE ENGINE ON ENGINE START PARKING BRAKE
OPERATION
SYSTEM (ROS)
oi
OVER TEMP
LIGHT
BATTERY REVERSEFUEL OIL PRESSURE
m
ATTACHMENT ATTACHMENT
CLUTCH DISENGAGED CLUTCH ENGAGED
FREE WHEEL
(Automatic Models only)
SLOW
IGNITION SWITCH
® @
PARKING BRAKE PARKING BRAKE
LOCKED UNLOCKED
BRAK_CLUTCH
PEDAL
t
FORWARD MOWER HEIGHT MOWER LIFT
KEEP AREA CLEAR SLOPE HAZARDS
(SEE SAFETY RULES SECTION)
LIGHTS ON
DANGER indicates a hazard which, if not avoided,
will result in death or serious injury.
WARNING indicates a hazard which, if not avoided
could result in death or serious injury.
&
DANGER, KEEP HANDS
AND FEET AWAY
Failure to follow instructions
could result in serious injury or
death. The safety alert symbol
is used to identify safety inform-
ation about hazards which can
result in death, serious injury
and/or property damage.
.l_{{l/lll_{l/,,
CAUTION indicates a hazard which, if not avoided
might result in minor or moderate injury.
CAUTION when used without the alert symbol,
indicates a situation that could result in damage
to the tractor and/or engine.
HOT SURFACES indicates a hazard which,
if not avoided, could result in death, serious injury
and/or property damage.
FIRE indicates a hazard which, if not avoided,
could result in death, serious injury and/or
property damage.
